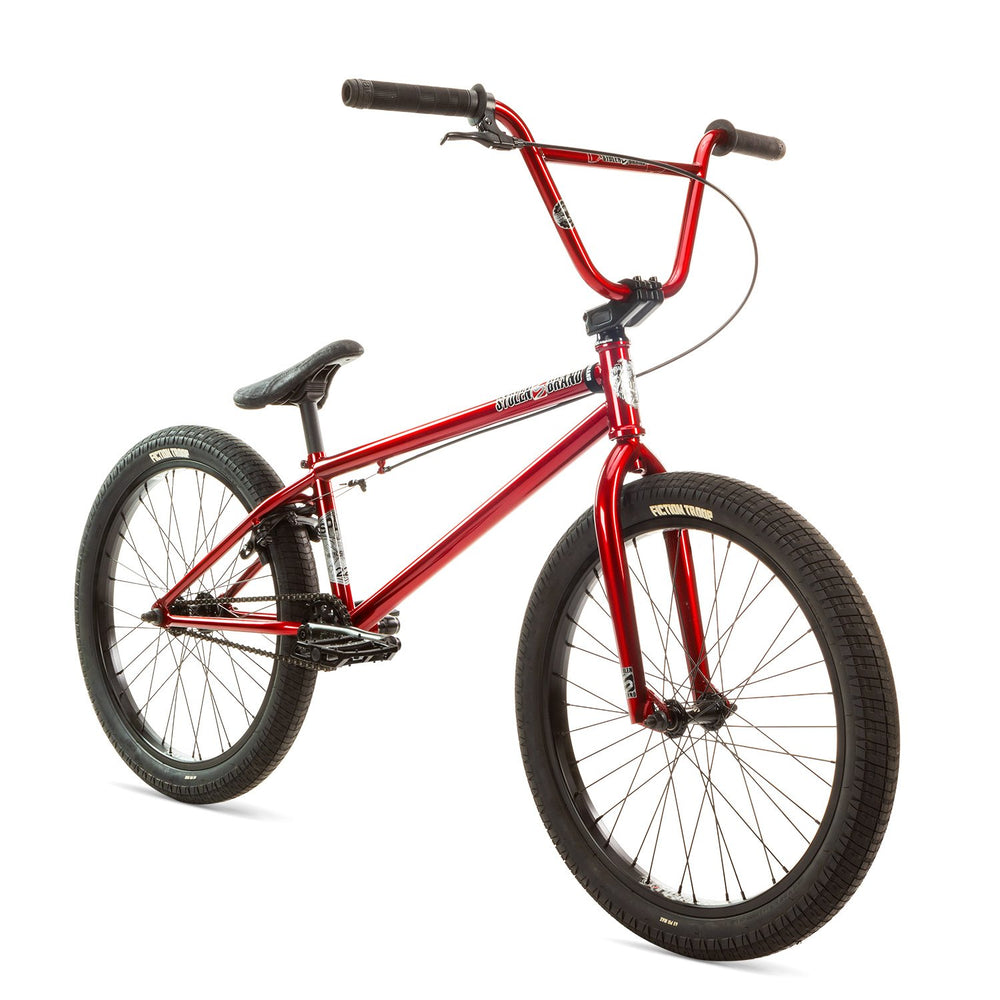

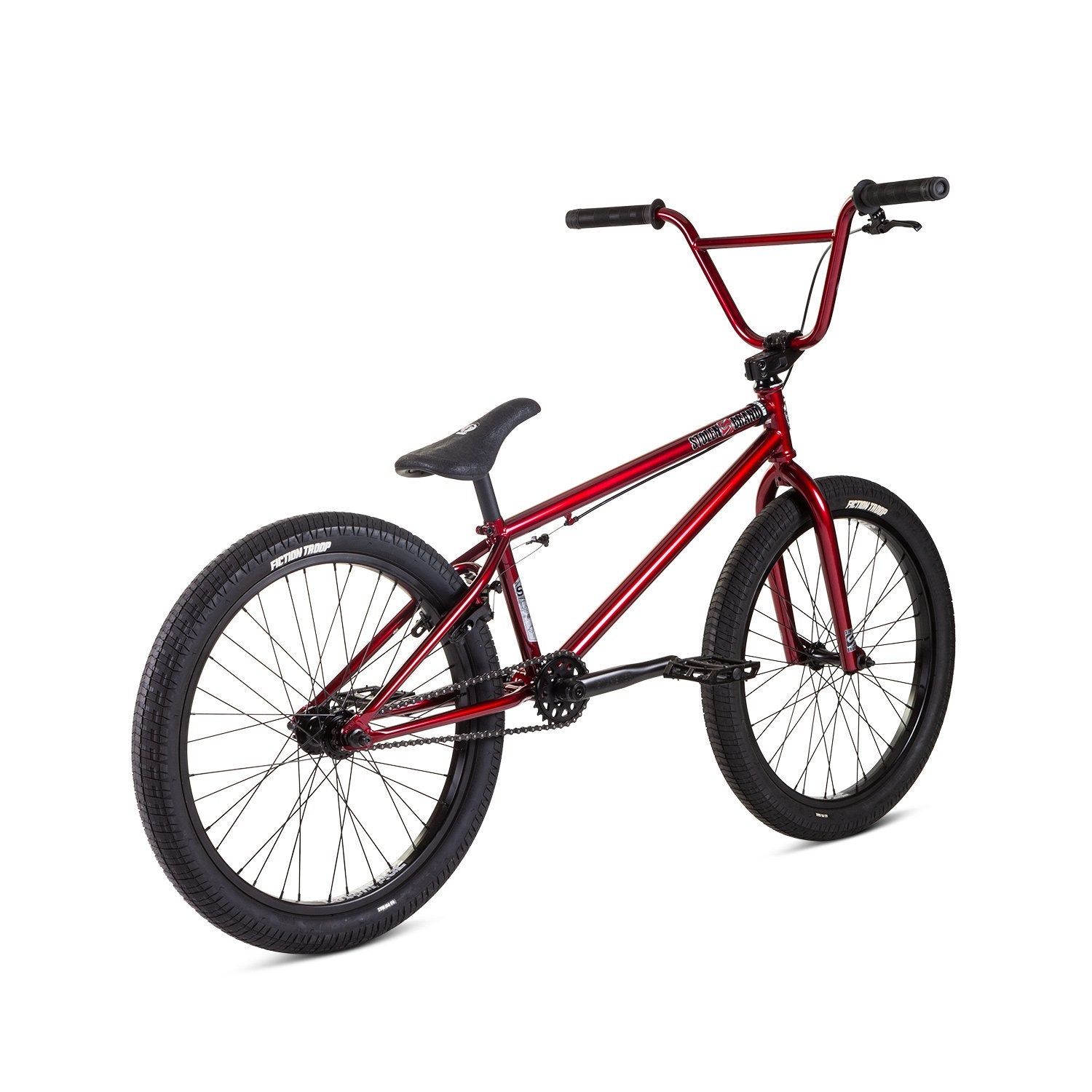

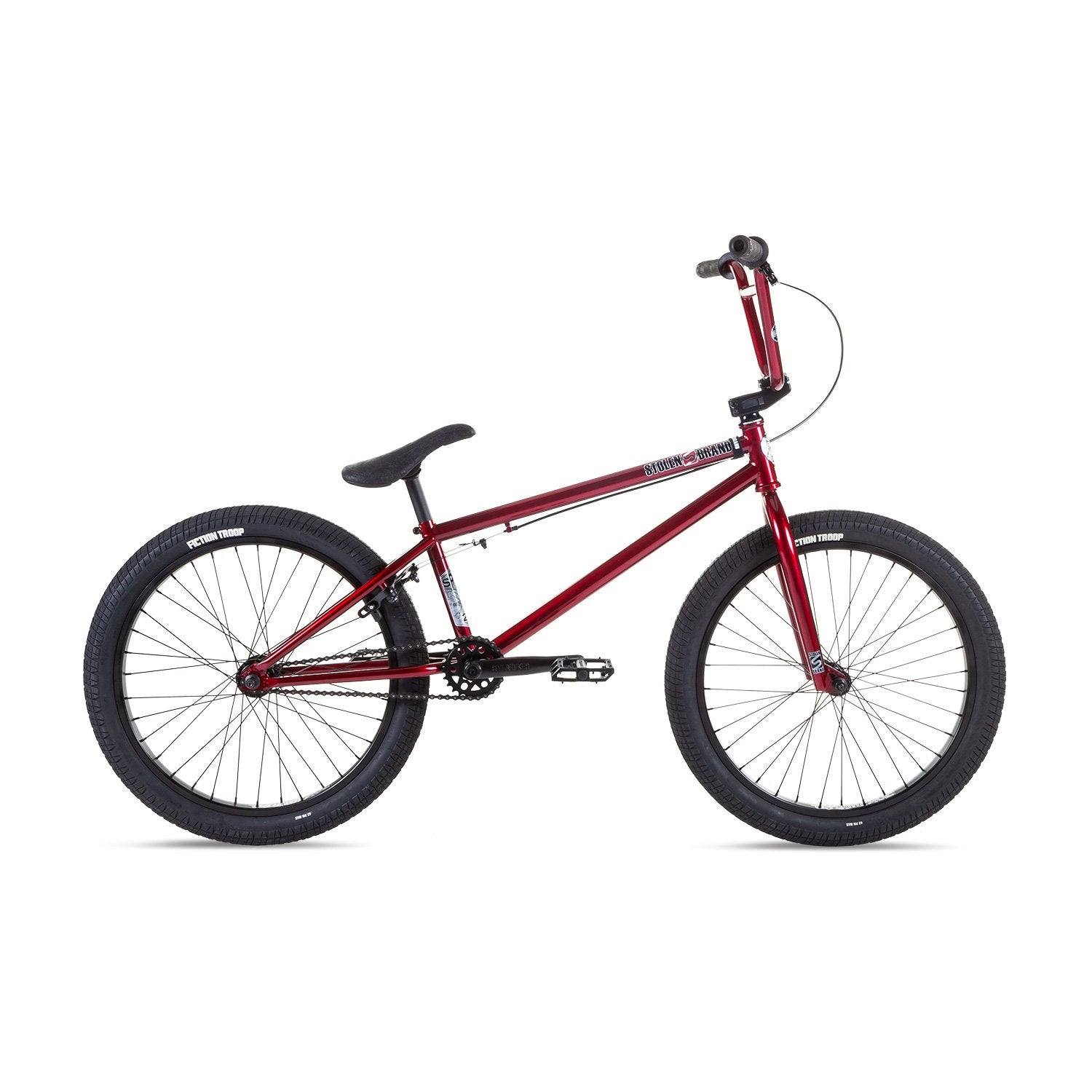

THE SPADE SET THE STANDARD FOR 22" WHEELED COMPLETE BIKES. PERFECT GEOMETRY THAT RIDES LIKE A FRAME UP BUILD BUT WONT BREAK THE BANK. EVERYTHING IS CHROMOLY AND EVERYTHING IS SEALED (-PEDALS), SLIM SEAT AND ALLOY THROTTLE PEDALS MAKE THIS THE PERFECT BUILD.

DETAILED SPECIFICATIONS

Frame: 100% ChroMoly Frame w/ S-Bend Chainstays for Bigger Tires
Fork: 100% Chromoly Fork w/ Tapered Legs & One-Piece Steerer w/ Compressor Topcap
Bars: Spade 2-piece ChroMoly, 8.75″
Grips: Stolen Team Fanged, 165mm
Barends: Stolen Vortex
Stem: Fiction Spartan, 52mm
Headset: Fiction Savage Sealed Integrated w/ 15mm Alloy Bearing Cover Brake
Lever: APSE Alloy w/ Hinged Clamp
Brakes: APSE Alloy U-brake
Cranks: 48 Spline Tubular ChroMoly Arms w/ ChroMoly Spindle, 175mm
Sprocket: Stolen 6061AL, 25T
Bottom Bracket: Fiction Savage MID 19mm
Chain: Z-410, Black
Front Hub: Stolen Rampage Sealed 3/8″ Axle
Rear Hub: Stolen Rampage Sealed Cassette 14mm Axle
Driver: 9T Sealed, One-Piece Chromoly
Front Rim: 22″ Stolen Rampage 36H (double-wall)
Rear Rim: 22″ Stolen Rampage 36H (double-wall)
Seat: Stolen Spade Slim Pivotal Seat, Black Waxed Canvas (MAY VARY)
Seat Post: Alloy 220mm Pivotal Post
Seat Clamp: Integrated
Front Tire: 22″ Fiction Troop 2.30″
Rear Tire: 22″ Fiction Troop 2.30″
Weight: Approx 27.0lbs

Colors: Metallic Red

GEOMETRY

Toptube Length: 22.25"
Chainstay Length: 14.10" (slammed)
Headtube Angle: 74.25°
Seattube Angle: 71°
Standover Height: 9.10″
Bottom Bracket Height: 12.25"
Fork Offset: 28mm
