We The People Revolver Bike 2023

Sold out
SKU BK5191
Check all Stock availability
Out Of Stock

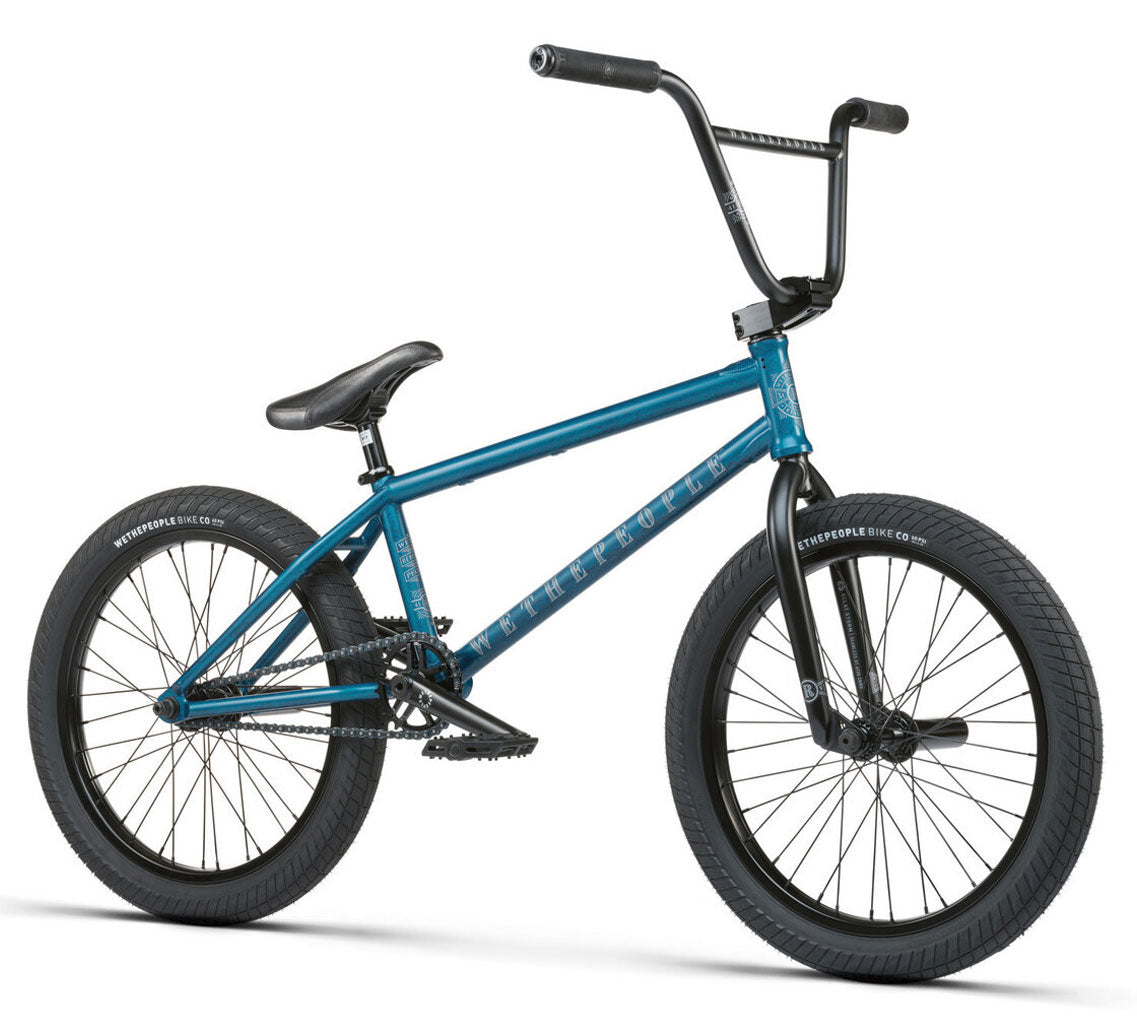

The new 2023 We The People Revolver Bike is a pro level "custom bike" in a rad affordable package.

Frame: WETHEPEOPLE "REVOLVER" frame, 4130 full sanko, invest cast wishbone & 7.5mm dropouts

Fork: ÉCLAT "STORM" fork, post liquid heat-treated & butted sanko tubing, 30mm offset

Bars: WETHEPEOPLE "REVOLVER" bar, post liquid heat-treated 4130 crmo

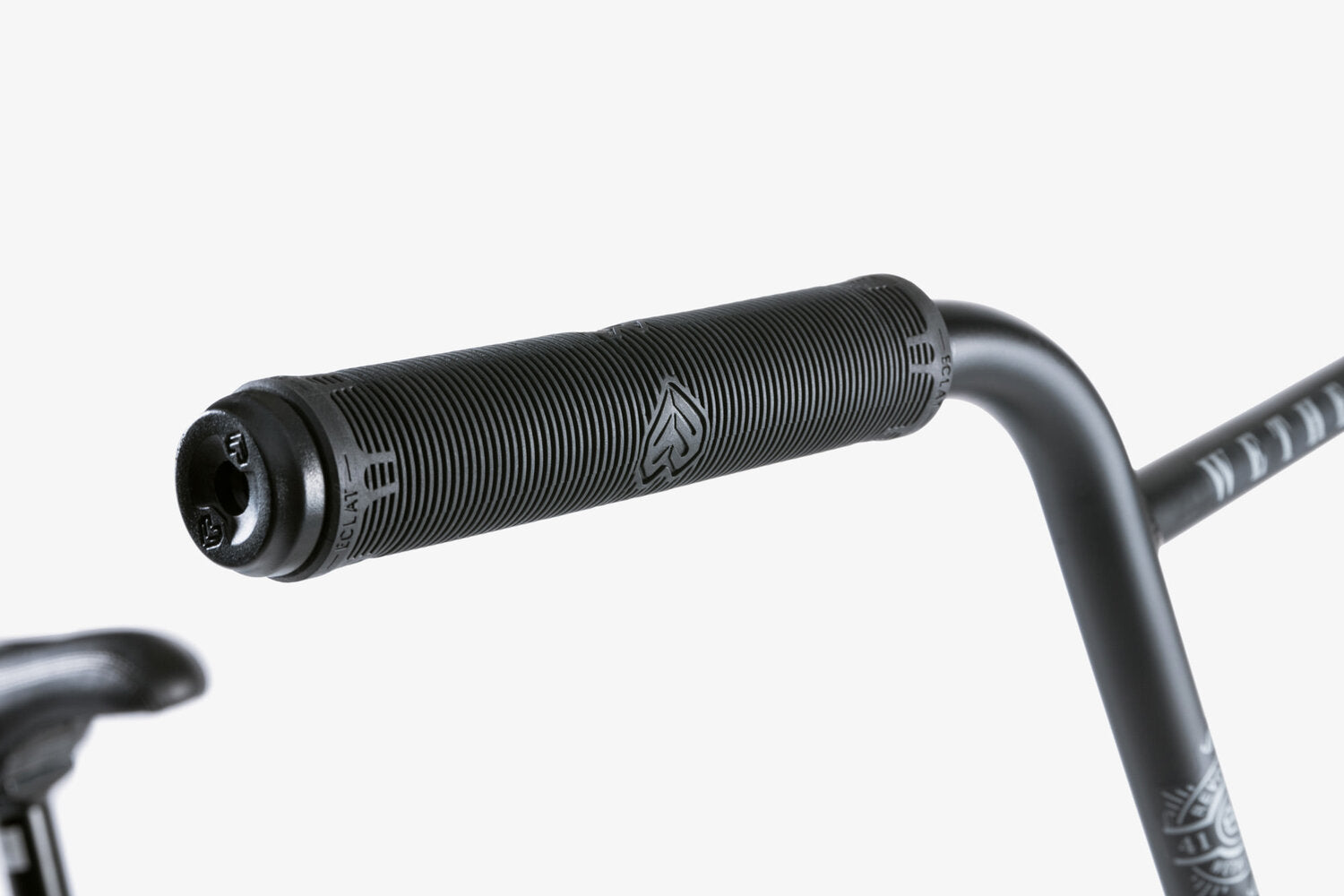

Grips: ÉCLAT "FILTER" grips, flangeless, with ÉCLAT "TECH-BOLT" barends

Stem: ÉCLAT "METRA" topload stem, cnc alloy, 51mm reach, 30mm rise

Headset: WETHEPEOPLE “” int. headset, sealed bearing

Gyro: holes for removable gyro tabs

Lever: SALT “MOTO” alloy brake lever

Brakes: ÉCLAT "TALON" alloy u-brake-rear

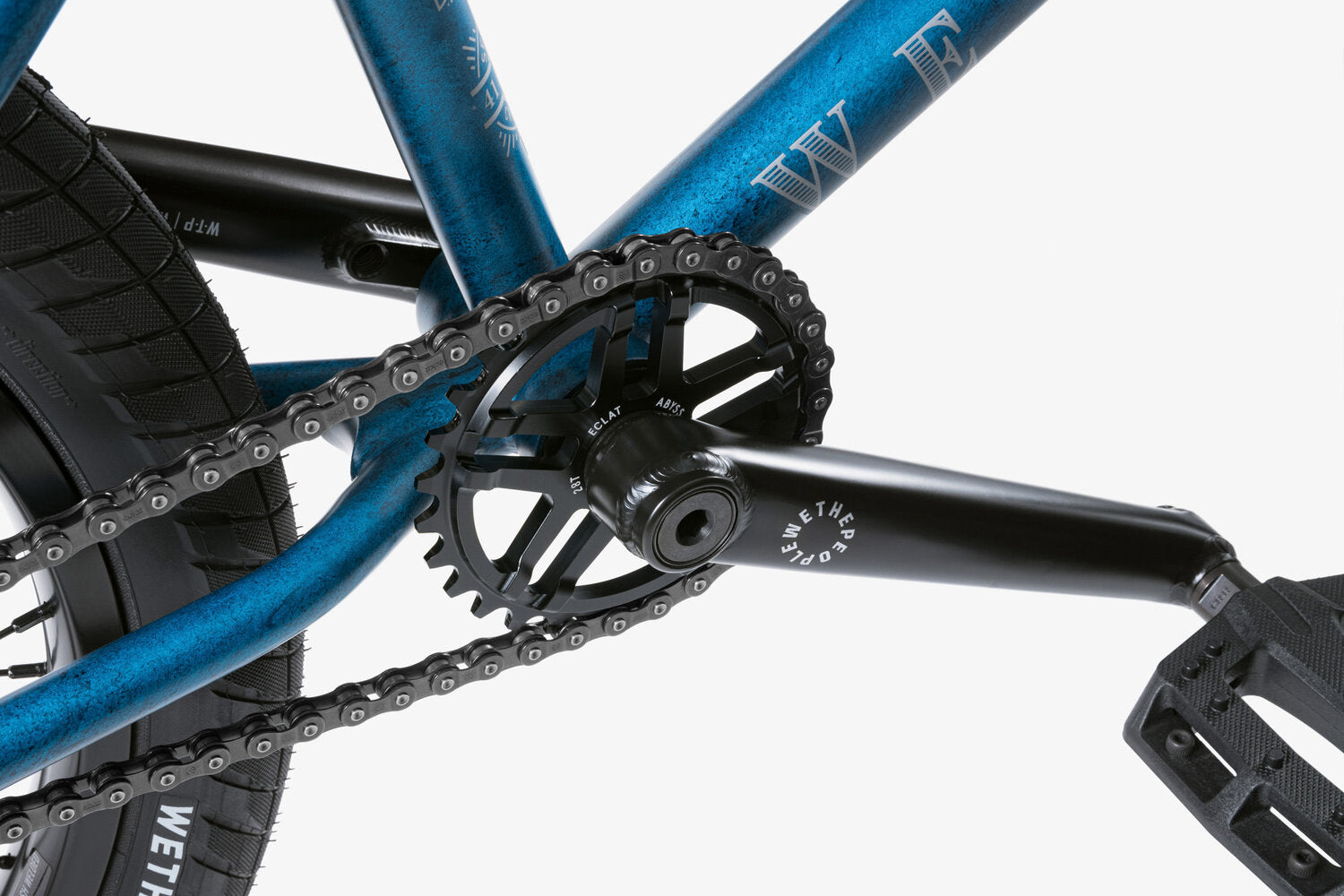

Cranks: WETHEPEOPLE “LOGIC” 22mm tubular 3pc crank crmo, 175mm, 48 spline

BB: WETHEPEOPLE “COMPACT” 22mm, press fit, sealed bearing

Pedals: WETHEPEOPLE “LOGIC” nylon/fiberglass pedals

Chain: ÉCLAT “DIESEL” chain

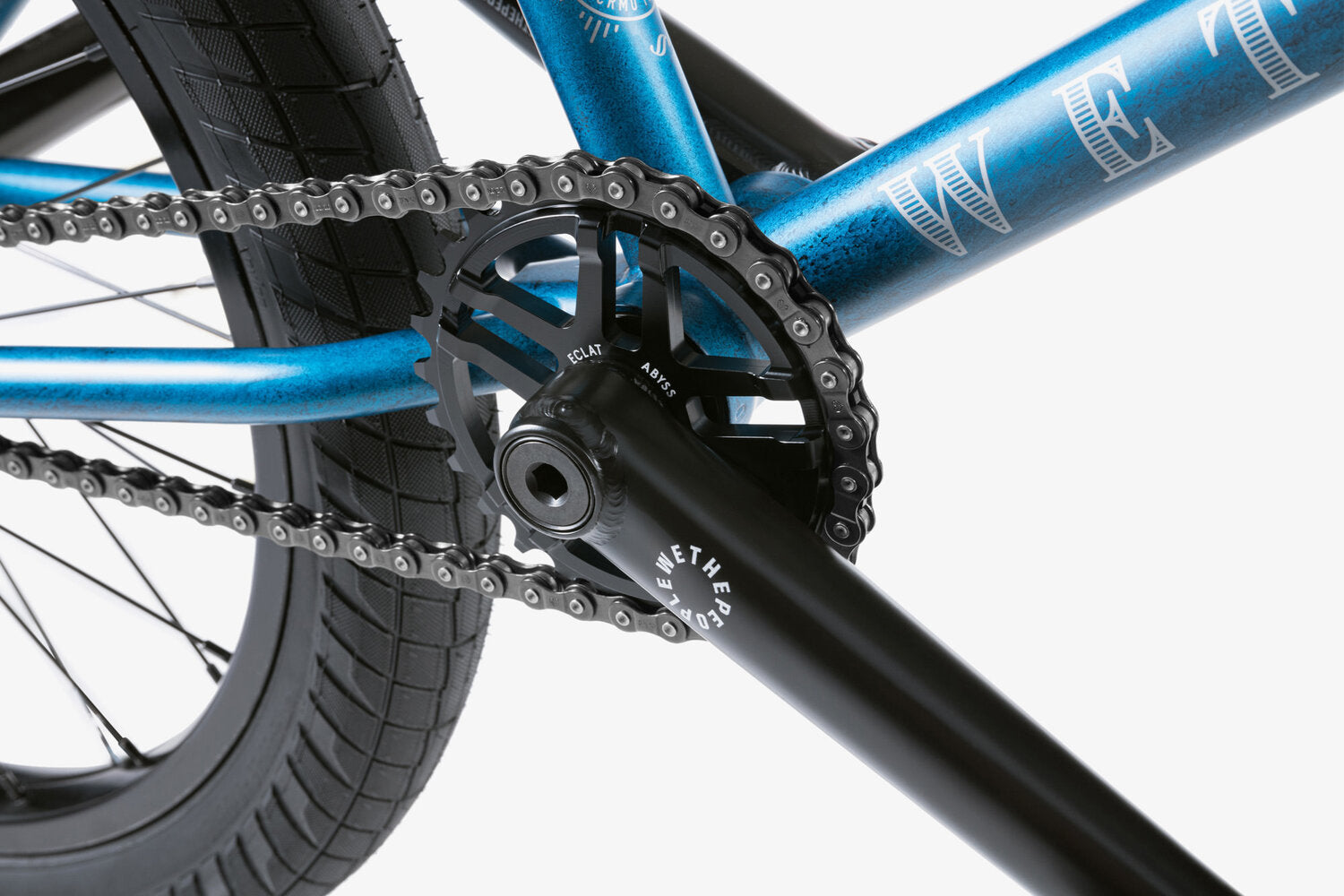

Sprocket ÉCLAT "ABYSS" sprocket, cnc, 6061-T6 alloy, 28t

Driver: 9t, 1pc cassette driver, full bushing, SDS (RSD/LSD switchable)

Front Hub:  ÉCLAT “PULSE ” hub, sb, 3/8"'s axle, 36h

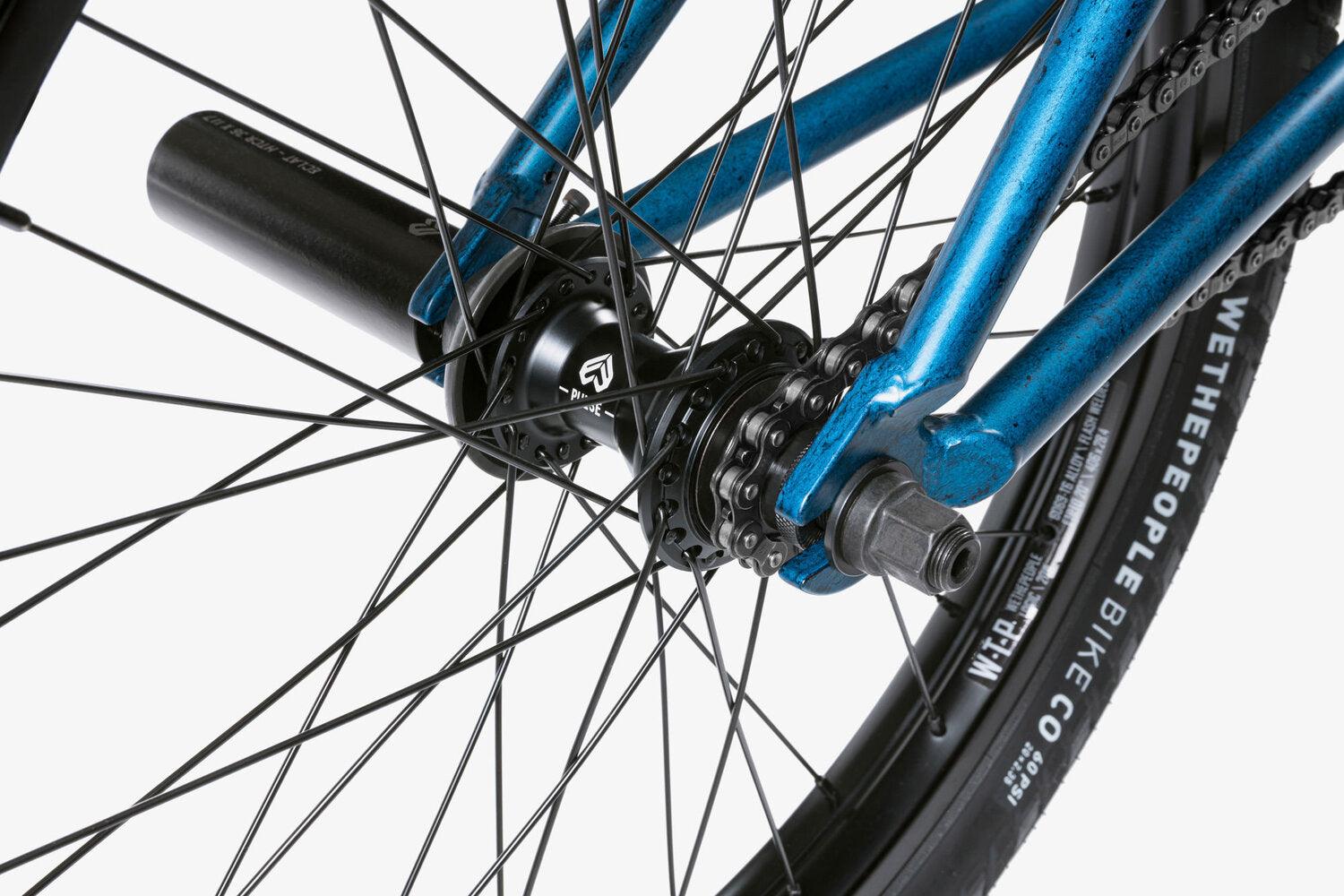

Rear Hub:  ÉCLAT “PULSE” cassette, sb hub, 9t, 14mm axle, 36h, SDS driver

Hubguards:  ÉCLAT “PULSE” 4140 chromoly x2

Front Rim: WETHEPEOPLE “LOGIC” 36mm double wall welded rim, 36h

Rear Rim: WETHEPEOPLE “LOGIC” 36mm double wall welded rim, 36h

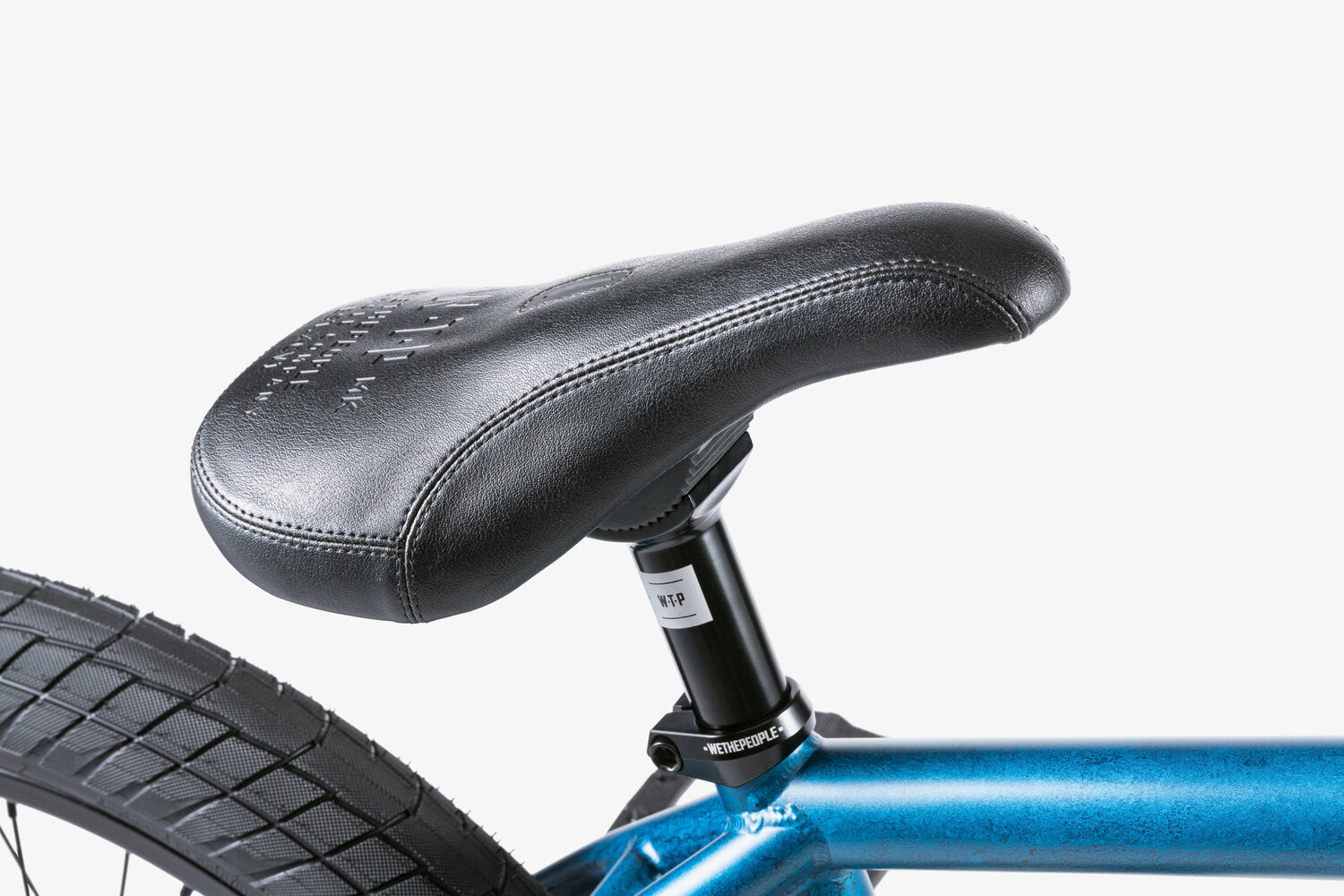

Seat: ÉCLAT “BIOS” slim padded pivotal seat

Seat Post: WETHEPEOPLE “TEAM” pivotal seat post, 606-T6 alloy, 200mm long

Seat Clamp: WETHEPEOPLE "SUPREME" cnc machined alloy seat clamp

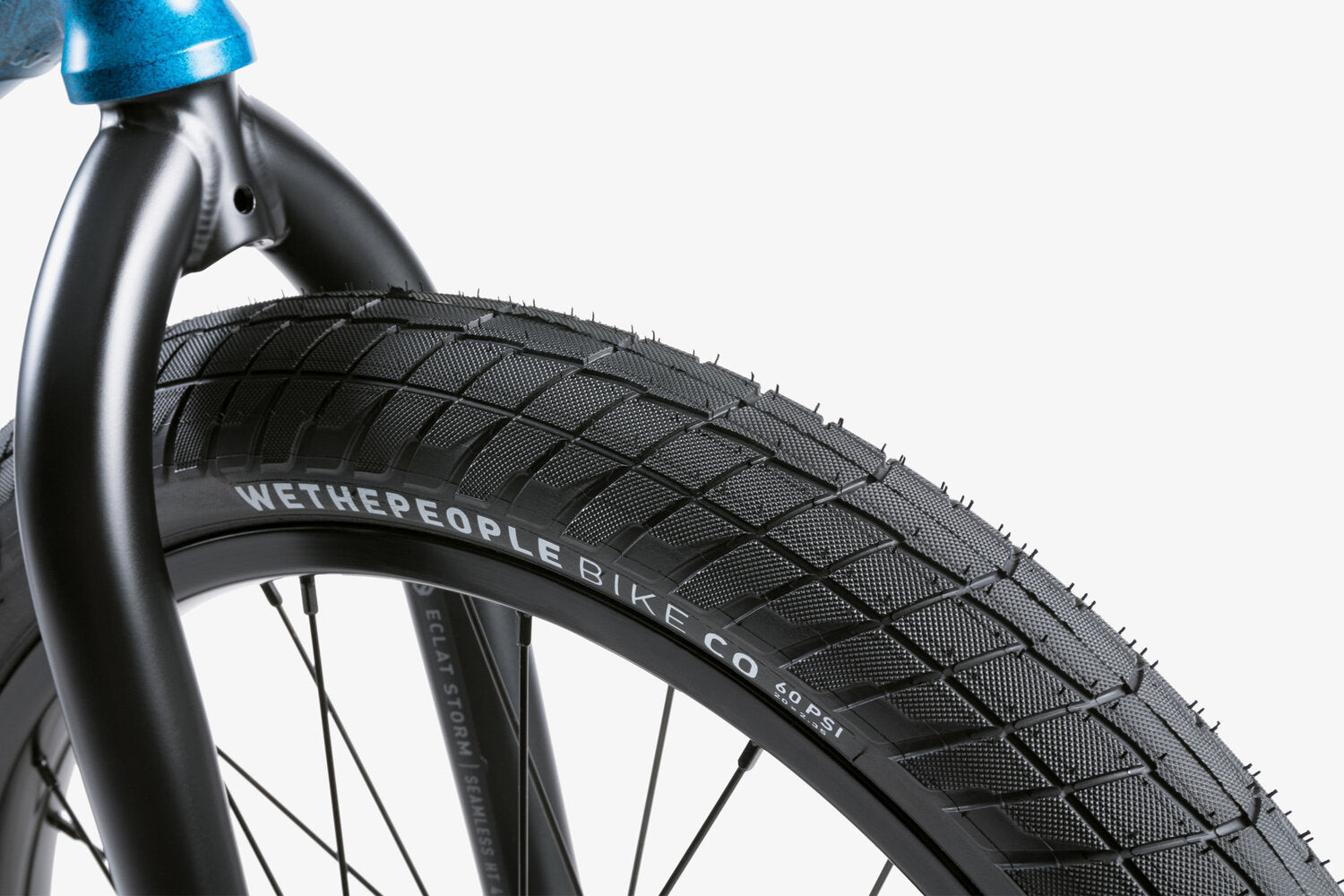

Tires: WETHEPEOPLE "OVERBITE" tire, 2.35" front & rear

Pegs: ÉCLAT "DURA" pegs, 4140 heat-treated crmo pegs, 4.6" long, x2

Weight: 12.06kg / 26.60lbs - without brakes, with pegs

A: Top Tube Length:  21”

B: Chain Stay Length: 13.5” (13.2"-13.75")

C: Head Tube Angle: 74.75°

D: Seat Tube Angle:71°

E: Bottom Bracket Height: 11.5”

F: Stand Over Height: 9.1”
