Volume Voyager XL Frame
by Volume
Original price
$0.00
-
Original price
$389.95
Original price
$0.00
$303.95
$303.95
-
$479.95
Current price
$303.95
SKU

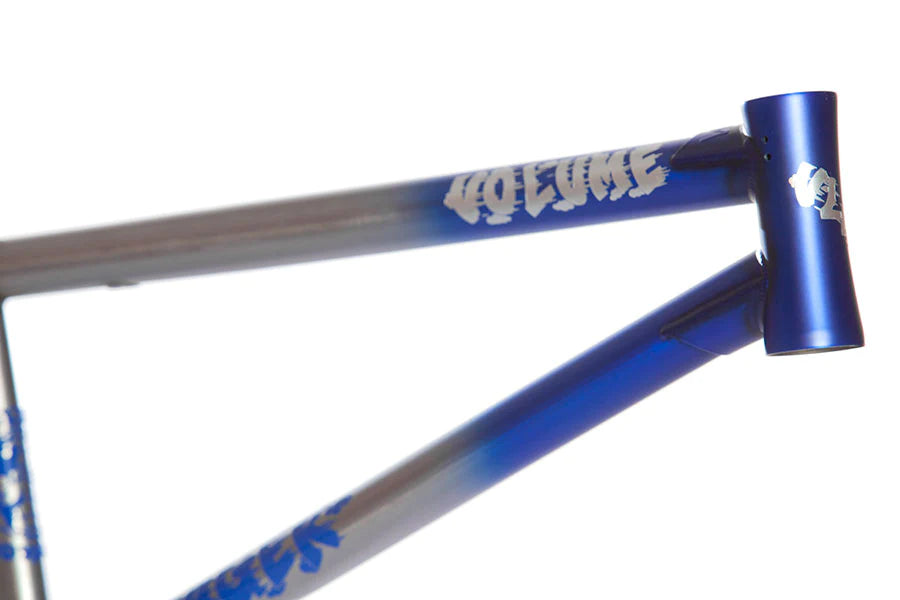

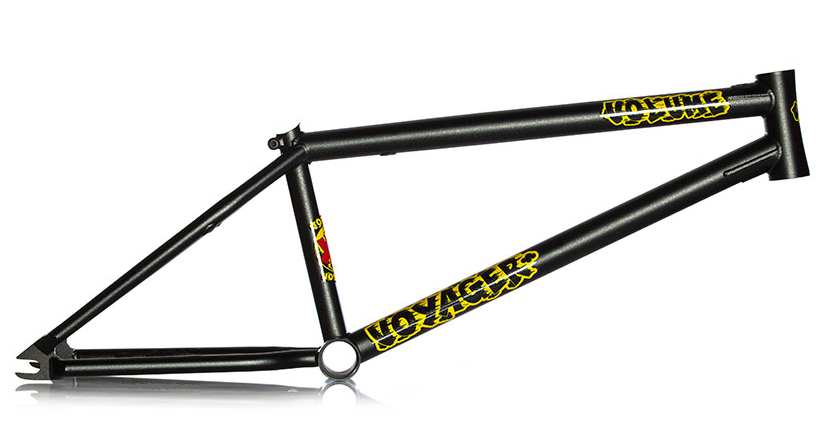

The Volume Voyager XL Frame features the same tech feel of the Voyager V2 but with a slightly longer chain stay. This frame also features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/ clean 6mm thick laser cut and welded dropouts with built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.
- Chainstay: 13″ (13.25″ center to center)
- BB height: 11.7″
- BB Width: 74mm
- Seat Tube height: 9.25″
- Head Tube Angle: 75.25°
- Seat Tube Angle: 71°
- Seat Post: 25.4
- Headtube: Integrated (45°X45° Campy Spec)
- Brake Mounts: Removable Seatstay Mounts
- Dropouts: Heat Treated, 6mm thick with built in chain tensioners. Clears hub guards and pegs of all sizes.
- Colors: Gloss Perry-Mint (Billy Perry), Metal Flake Flat Black
- Weight: 5 lbs 2 oz (21″)
