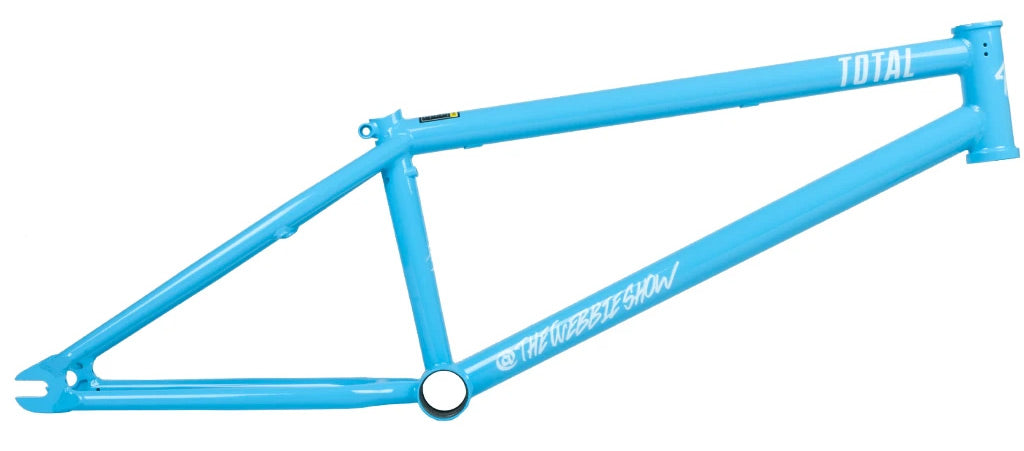

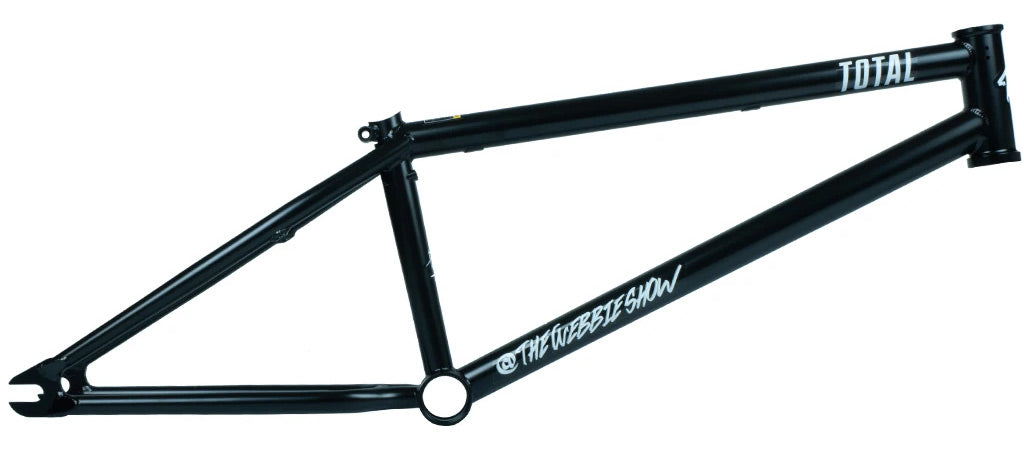

Total BMX TWS 2 Frame

$359.95
SKU 03-TB209K
Check all Stock availability
In Stock
description

Mark Webb kept the same proven geometry on the Total BMX TWS 2 Frame as the past TWS frames as he felt it was already perfect. However he did add Total's new DBS brake routing system to make things even sweeter.

Specification:



    • Full Multi Butted Sanko 4130 Chromoly

    • Head Tube Angle: 75.5º

    • Seat Tube Angle: 71º

    • Standover Height: 8.75” (center of BB to center of TT)

    • Rear End Length: 13.2” - 13.4”

    • Top Tube: 32mmø Multi butted

    • Down tube tapered 36mmø to 32mm, butted with offset thickness in key areas

    • Tapered chain stays 19mm-16mm

    • Tapered seat stays 19mm-14mm

    • BB Height: 11.5”, low and good for stability

    • Tapered seat tube with power clamp

    • Headtube: Integrated and heat treated 120mm length

    • Removable brake mounts plus DBS kit and tabs all included (other brands charge extra)

    • Brake Mod, 'DBS' (Dual Brake System) exclusive to Total frames

    • Dropouts: 6mm thick heat treated with integrated chain adjusters

    • Sizes: 20.3”, 20.6”, 21”, 21.25” top tube lengths

    • Color: Black ED/ Metallic Green/ Sky Blue

    • Weight: TBC

    • Warranty: 1 Year

**Note that you may need to cut your seat post to set it at the desired height due to the DBS cable routing system
