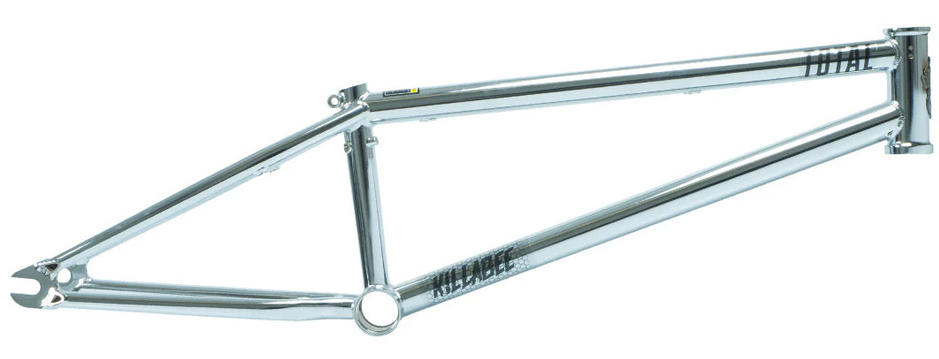

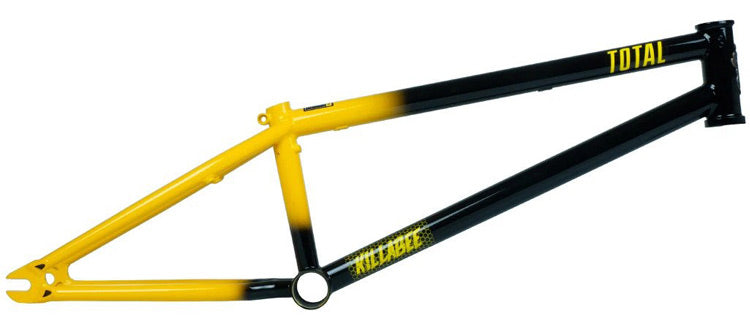

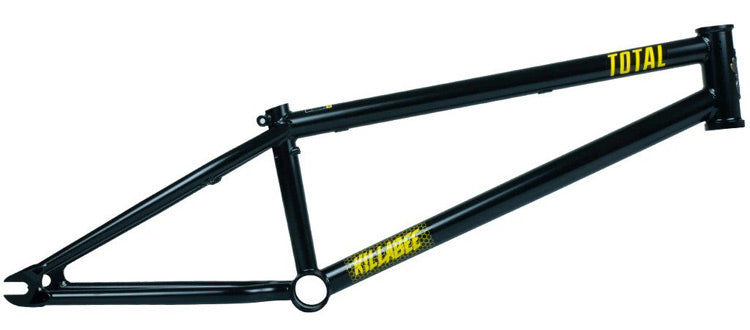

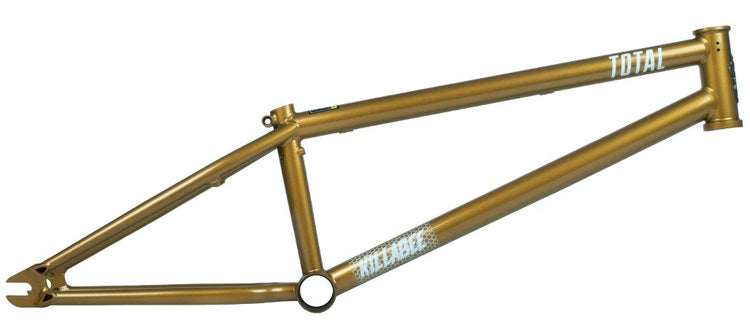

Total BMX Killabee K4 Frame

Sold out
$359.95
SKU 03-TB295A
Check all Stock availability
Out Of Stock
description

The Total BMX Killabee K4 Frame has been remastered this round. Integrated chain adjusters and the DBS brake system are justa couple of the new features of the K4 over the K3. Being the signature from of Kyle Baldock you know a lot of time and thought went into making the Killabee K4 frame as close to perfect as possible.

Specification:



  • Full Multi Butted Japanese Sanko 4130 Chromoly tubing

  • Head Tube Angle: 75.75º

  • Standover Height: 7.7” (centre of BB to centre of TT)

  • Rear End Length: 12.65” - 12.95”

  • Top Tube: 32mmø Multi butted internal gusseted

  • Down tube 34.9mm taper to 32mm internally gusseted

  • Tapered chain stays 21mm-17mm (Ovalized for dent resistance and extra tyre clearance)

  • Tapered seat stays 19mm-14mm

  • Tyre clearance- 2.4”

  • BB Height: 11.6”

  • Headtube: Integrated and heat treated, drilled for gyro tabs 120mm length

  • Removable brake mounts and tabs all included (other brands charge extra)

  • Dropouts: 6mm thick heat treated with integrated chain adjusters and CNC cutouts

  • Brake Mod, 'DBS' (Dual Brake System) excusive to Total frames

  • Sizes: 18”, 19.75”, 20.4”, 20.7”, 21” top tube lengths

  • Color: Black ED/ Gold Metallic/ Bumblee Bee

  • Weight: TBC

  • Warranty: 1 Year

**Please note that due to the DBS brake set up you may need to cut your seat post
