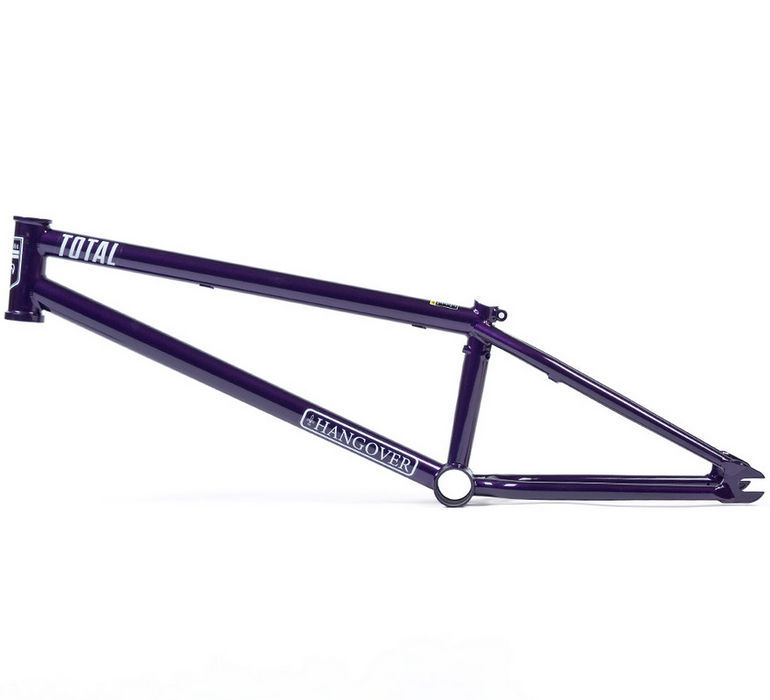

Total BMX Hangover H4 Frame

Sold out
SKU 03-TB254A
Check all Stock availability
Out Of Stock

The Total BMX Hangover H4 Frame has a few new standout features over the past H3 model. The new H4 has a slightly shorter rear end to aid in spinning and whipping, a "normal" style seat clamp and and Total's new DBS Braking system. The Hangover H4 is a great frame for the hardcore park and ramp rider.


  • Full Multi Butted Japanese Sanko 4130 Chromoly tubing

  • Head Tube Angle: 75.25º

  • Standover Height: 7.25” (centr of BB to centr of TT)

  • Rear End Length: 12.6” - 12.9”

  • Top Tube: 32mmø Multi butted internal gusseted

  • Down tube 34.9mm taper to 32mm internally gusseted

  • Tapered chain stays 21mm-17mm (Ovalized for dent resistance and extra tyre clearance)

  • Tapered seat stays 19mm-14mm, triple butted for lightness

  • Tire clearance- 2.4”

  • BB Height: 11.5” low and stable

  • Headtube: Integrated and heat treated, drilled for gyro tabs. 117mm height

  • Removable brake mounts plus DBS kit and tabs all included (other brands charge extra)

  • Dropouts: 6mm thick heat treated with integrated chain adjusters and CNC cutouts

  • Brake Mod, 'DBS' (Dual Brake System) exclusive to Total frames

  • Sizes:19.8”, 20.4”, 20.6”, 21” top tube lengths

  • Color: Black ED/ Gunmetal Grey/ White Gloss

  • Weight: TBC

  • Warranty: 1 Year

**Note that you may have to cut your seat post to get it set at the right height due to the DBS brake cable routing.
