SKU 03-TB304K
Check all Stock availability
In Stock

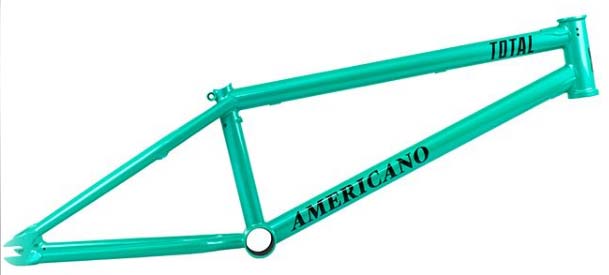

Total BMX Americano frame is the signature from for Total BMX team rider, Nick Bruce. Nick comes from the great state of Ohio so he's about as American as they come. Nick is also a beast on his bike. The Americano frame is built to Nick's specs and is ready to perform under the the most grueling park conditions. One of the Americano frame's stand out features is the way you can set the rear brake up with dual cable routing in the most clean fashion possible.

    • Full Multi Butted Sanko 4130 Chromoly tubing
    • Head Tube Angle: 75.1 degree
    • Stand over Height: 8.25” (centrer of BB to center of TT)
    • Rear End Length: 13.3” - 13.55”
    • Top Tube: 33mmø Multi butted
    • Down tube 34.9mm Multi butted
    • Tapered chain stays 19mm-16mm
    • Tapered seat stays 19mm-14mm
    • BB Height: 11.5”, low and good for stability
    • Head tube: Integrated and heat treated
    • Removable brake mounts and tabs (not included)
    • Dropouts: 6mm thick heat treated with integrated chain adjusters and CNC cutouts
    • External Gussets top and down tube
    • Brake Mod, 'DBS' (Dual Brake System)
    • Sizes: 20.5”, 20.75”, 21” top tube lengths
    • Weight: 4 lbs 14 oz.
