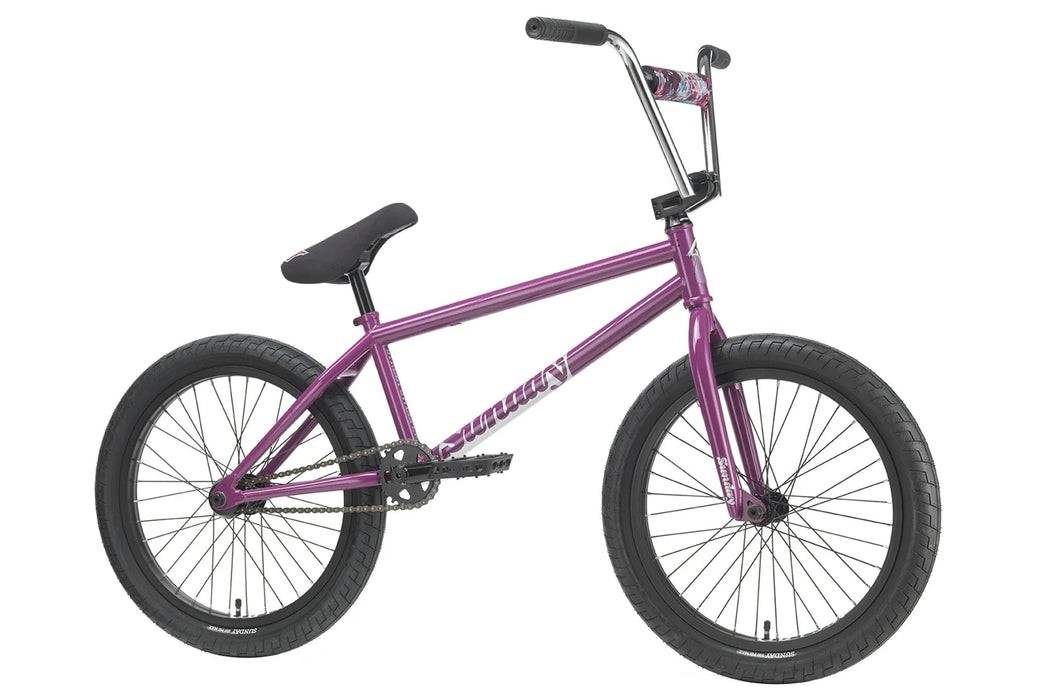

Sunday Street Sweeper Jake Seeley Signature Bike
The Sunday Street Sweeper bike is built around Sunday's aftermarket Jake Seeley signature Street Sweeper frame which is then loaded up with tons of Odyssey and Sunday parts. Just a couple of the features worth noting would be the Odyssey Clutch rear Freecoaster hub, Odyssey Quadrant rims, Pivotal seat / post and much much more. This complete bike is setup as a modern day street riding bike with its 4-piece bars, short 160mm cranks, a freecoaster, and a super tech geometry.

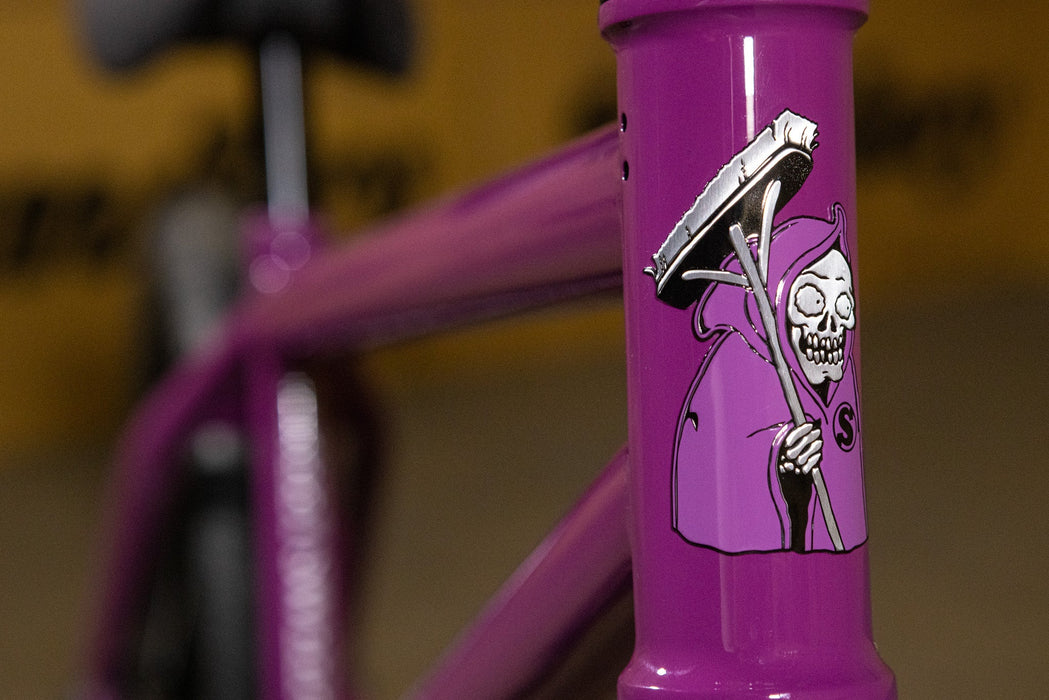

- Aftermarket Sunday Street Sweeper Frame
- 100% Chromoly Forks and 4-piece Bars
- Sunday Seeley Signature Grips
- Sunday Blockhead Seat
- Odyssey Clutch Pro Freecoaster
- Odyssey Quadrant Rims
- Sunday Street Sweeper v2 2.4" Tires

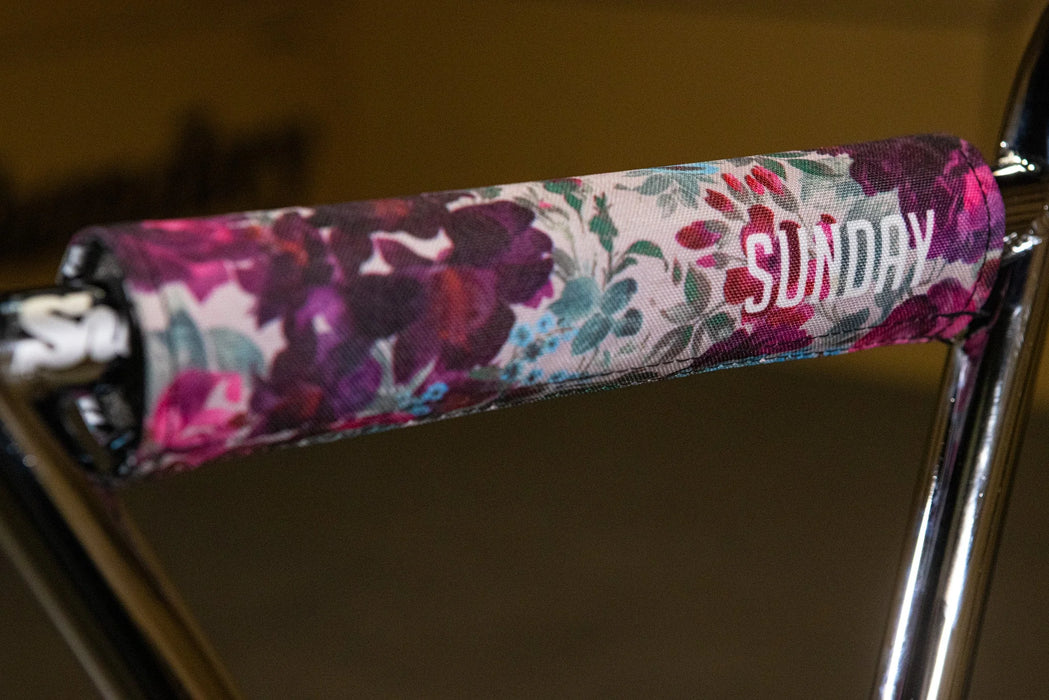

- Handlebar Pad
Specifications

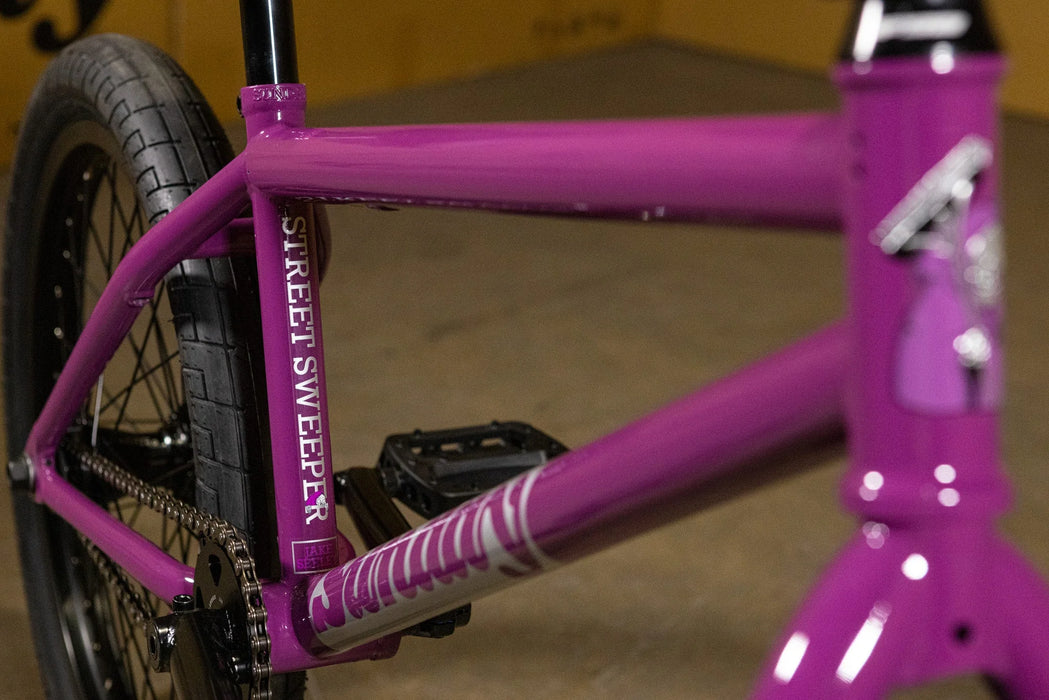

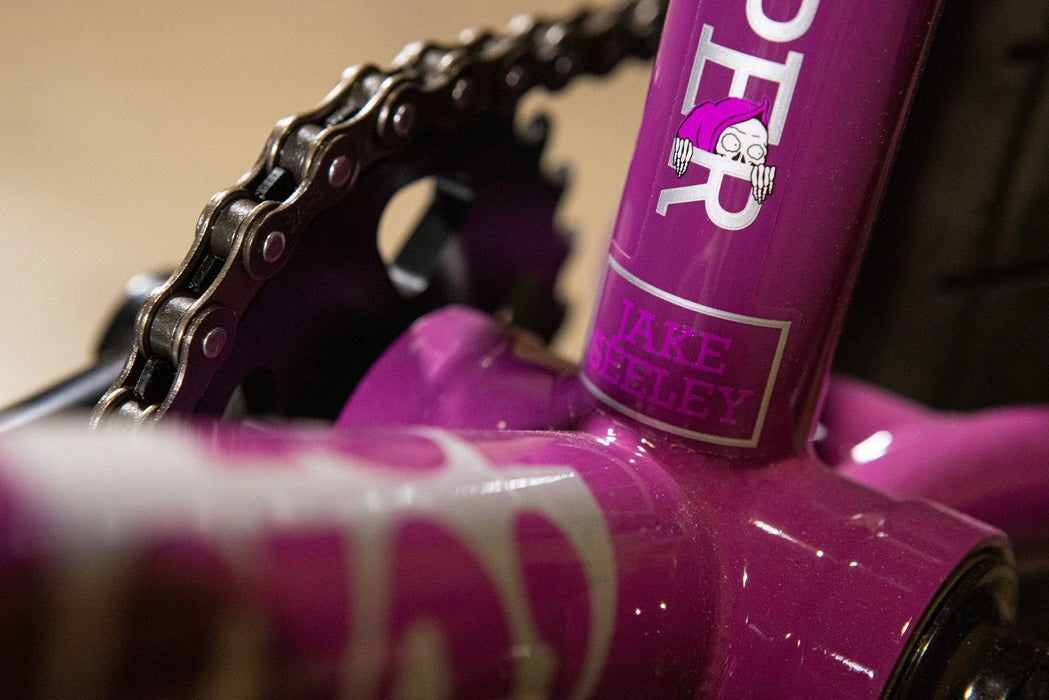

Frame: Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork: Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset

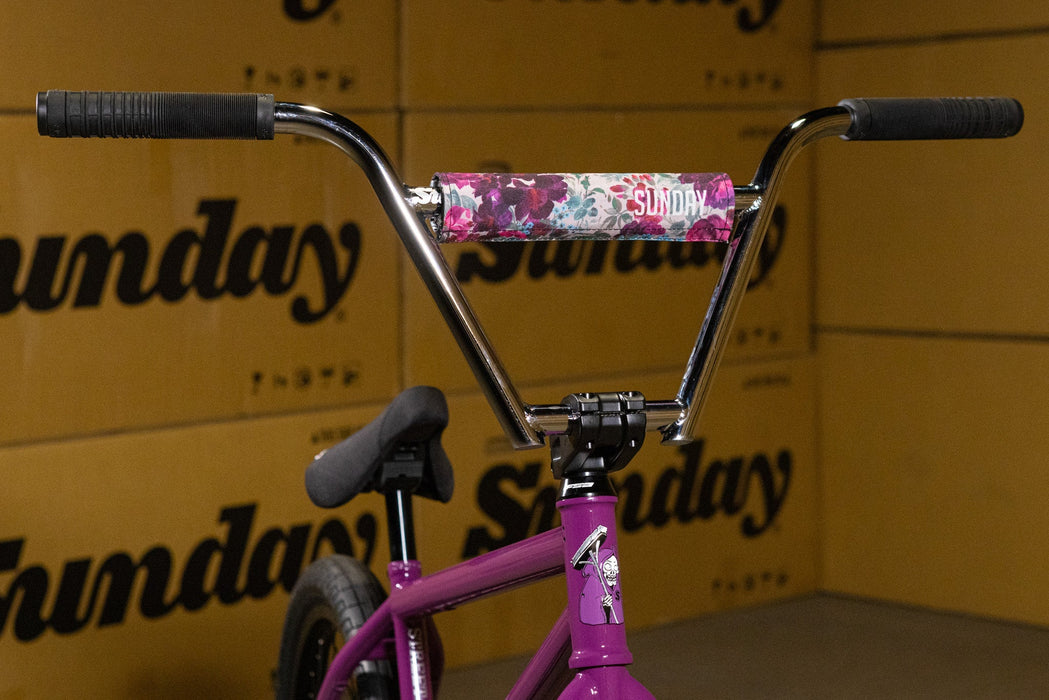

Handlebar: Sunday, 100% chromoly, 4-piece with handlebar pad

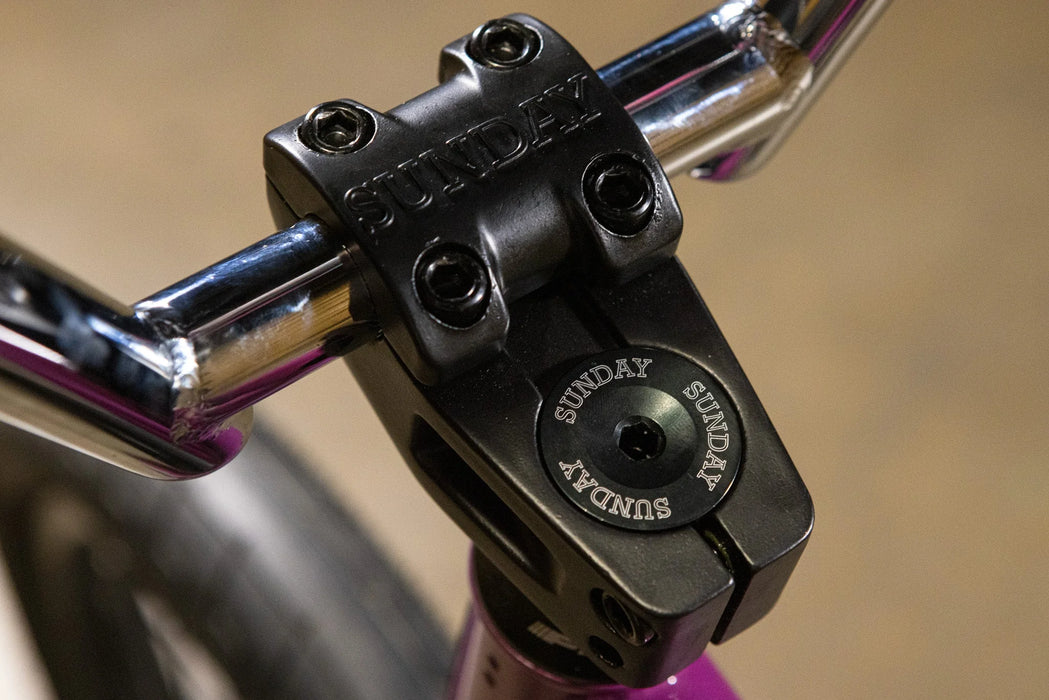

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap: Sunday M16, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

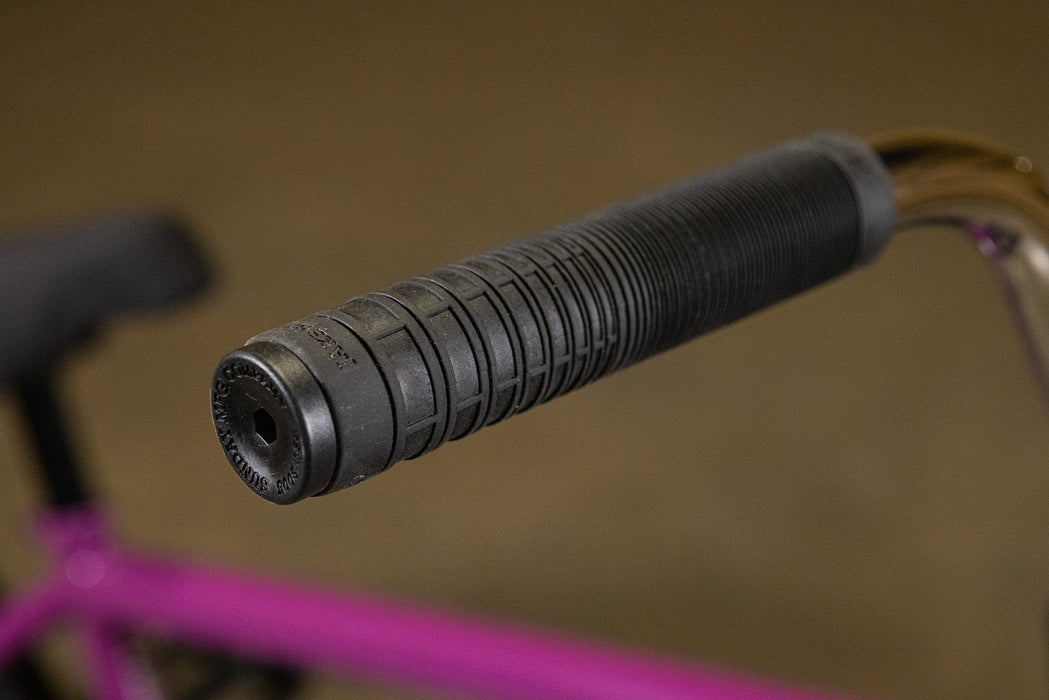

Grips: Sunday Jake Seeley

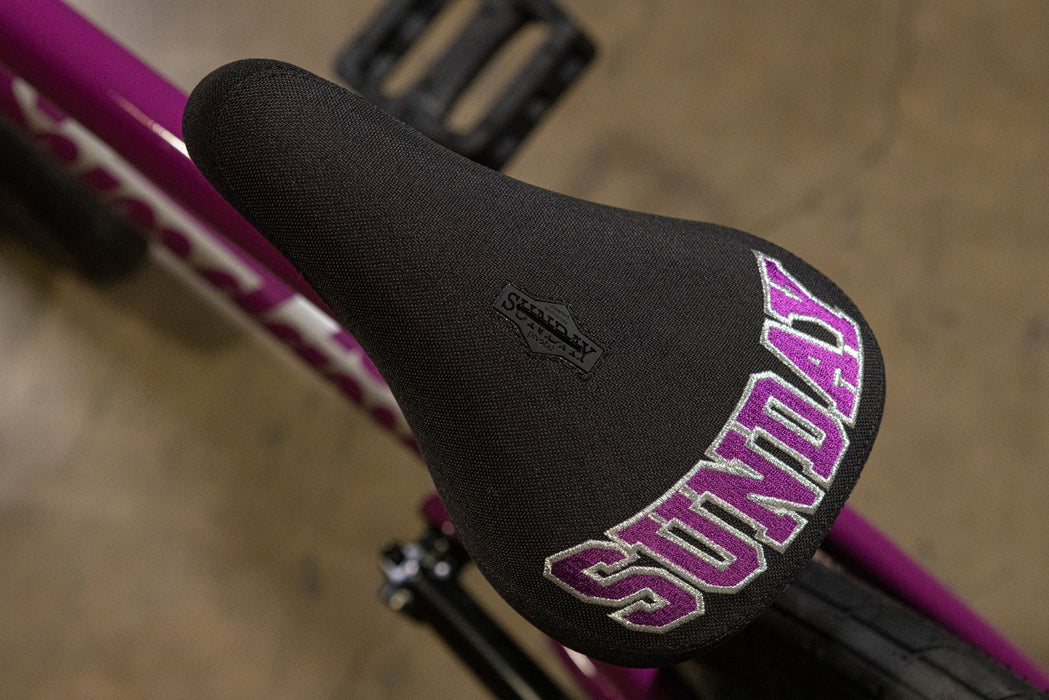

Seat: Sunday Blockhead, Pivotal
Seat post: Sunday Pivotal
Seat Clamp: Integrated

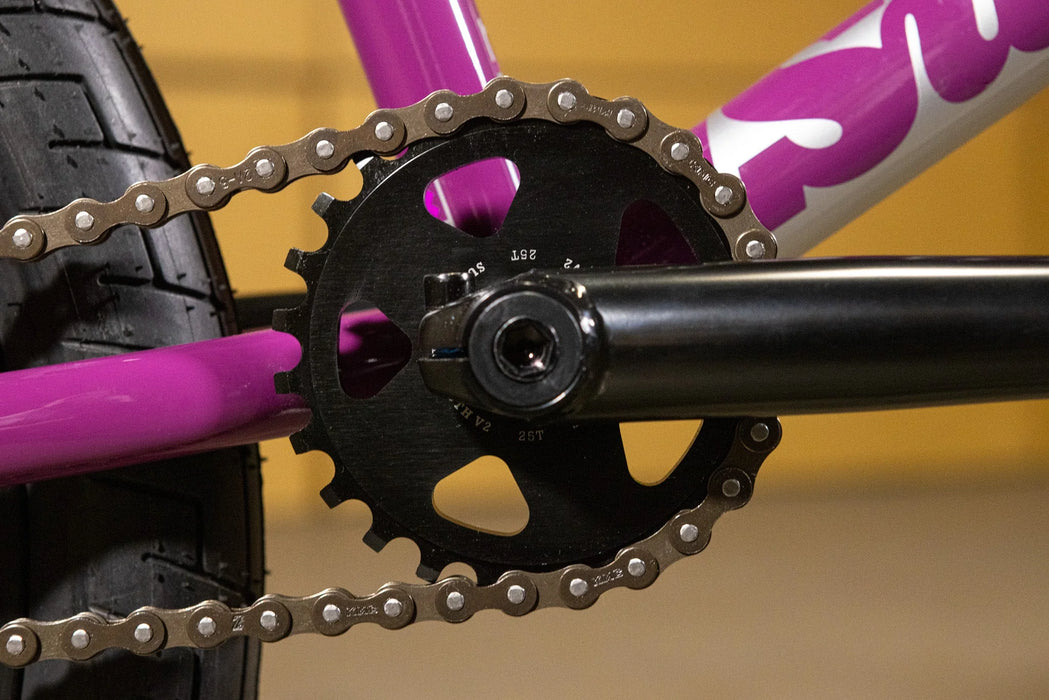

Sprocket: Sunday Sabretooth v2, 25T, 6061 aluminum
Cranks: 160mm, 3-piece, chromoly (LHD/RHD Compatible)
BB Parts: Sealed, Mid, 19mm

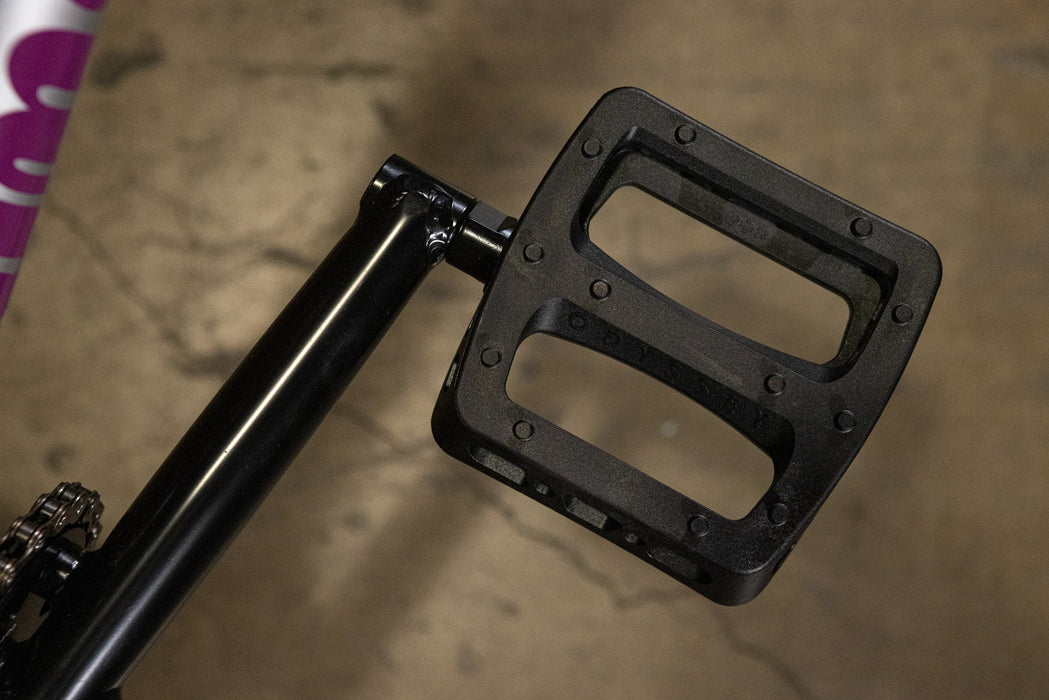

Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Quadrant, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts

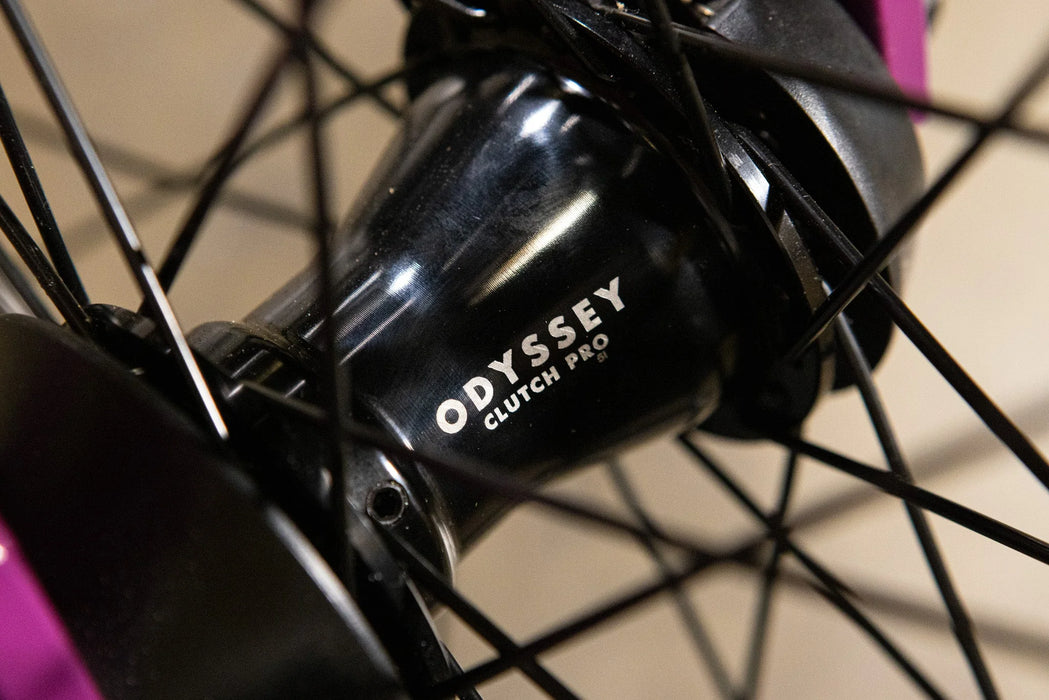

Rear Hub: Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, plastic guards
Spokes: 14g steel, black

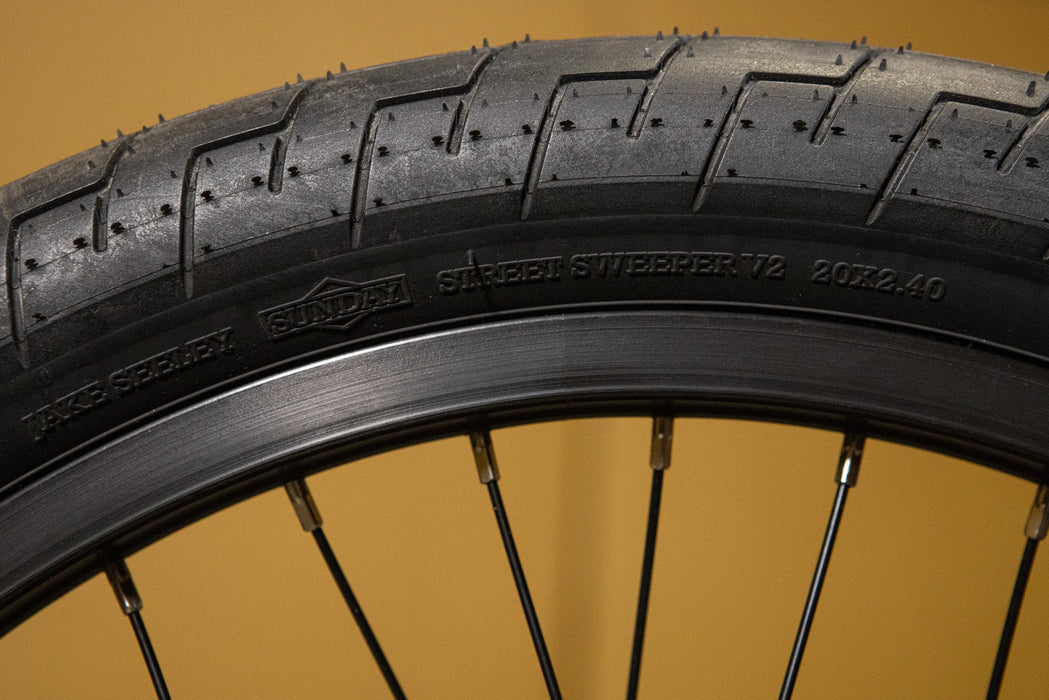

Tires: Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 20.75"
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 12.7"-13”
Bottom Bracket Height: 11.7"
Headtube Length: 4.7"
Standover: 8.85”
Handlebar Geometry
Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
