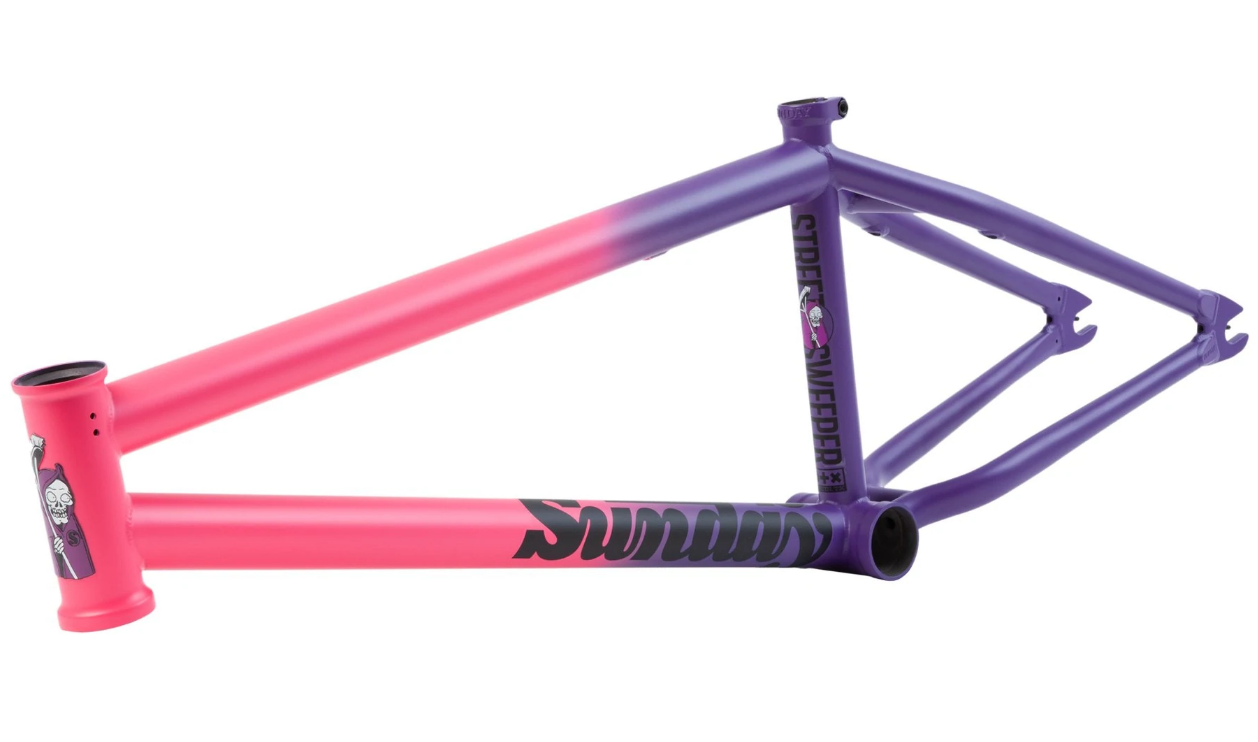

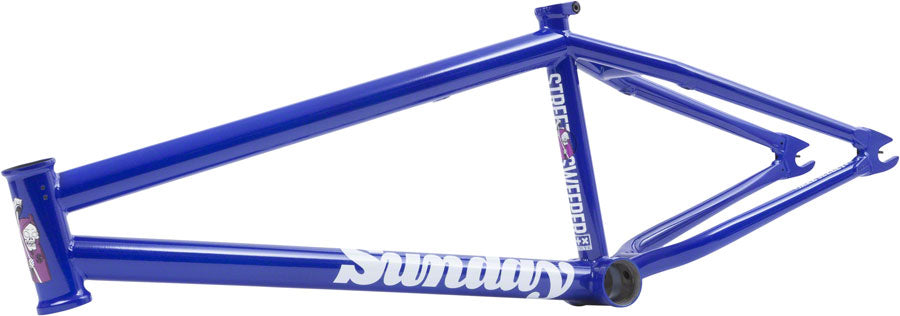

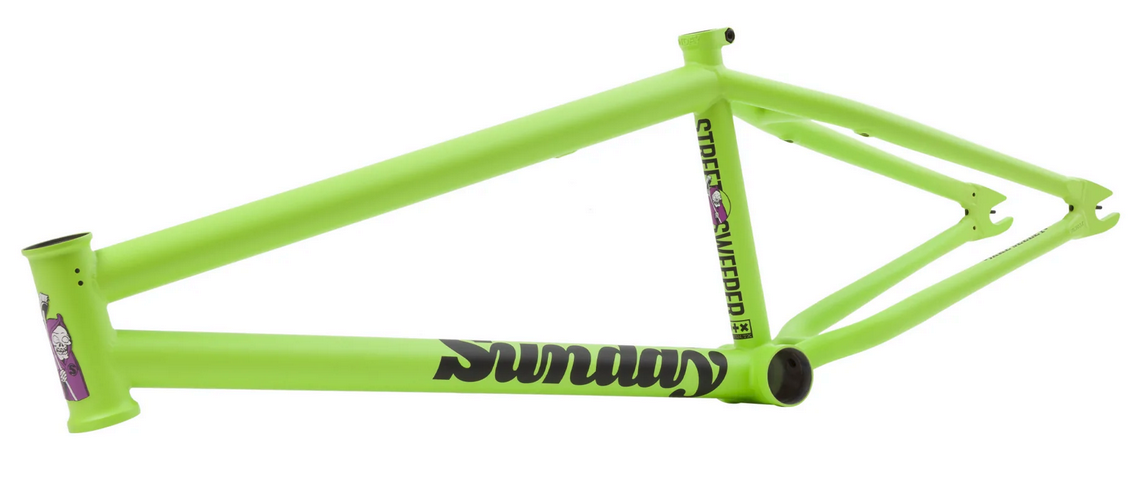

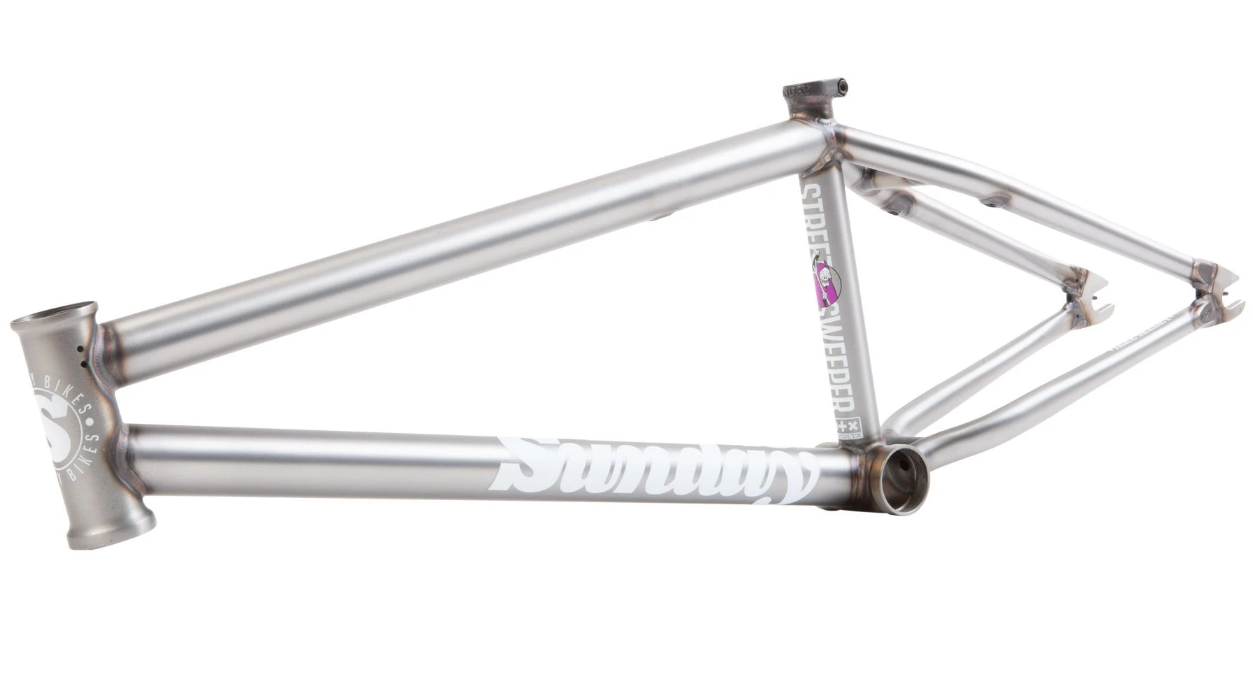

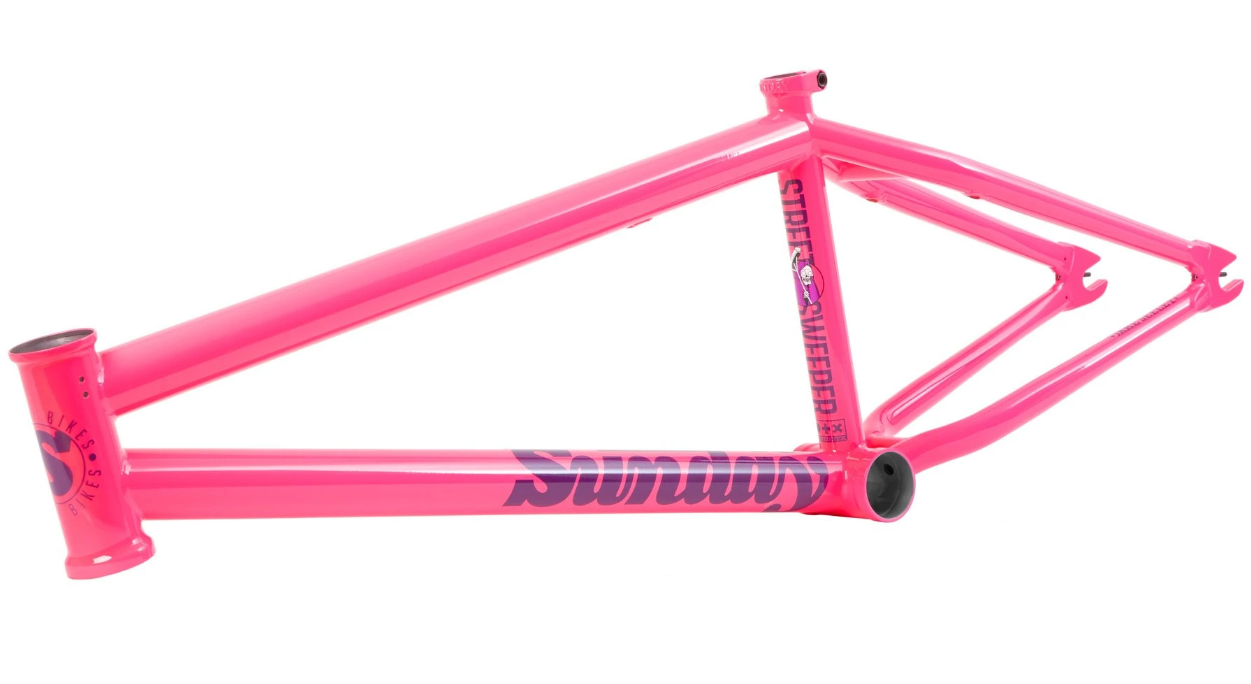

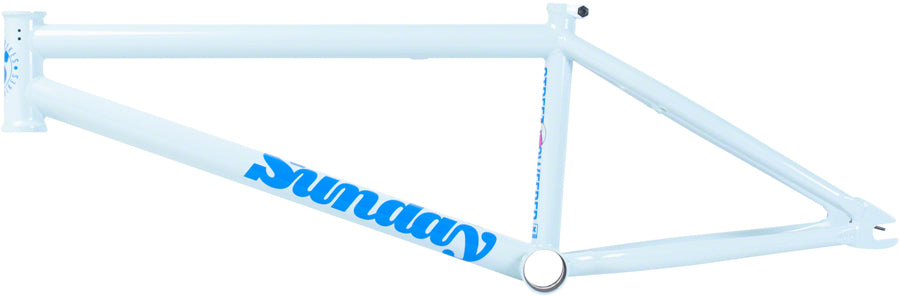

Jake Seeley is one of the most creative riders in the game and his signature Street Sweeper from Sunday is up for the task. Updated geometry with a steeper head tube and shorter stays. All chromoly construction, removable brake mounts, internal gusseting on top/down tubes and smaller, hollow dropouts with integrated chain tensioners. Everything you need.
TT LENGTH: 20.75, 21
HEAD TUBE ANGLE: 75.25°
SEAT TUBE ANGLE: 71°
CHAIN STAY LENGTH: 12.70-13”
BOTTOM BRACKET HEIGHT: 11.7”
TIRE CLEARANCE: 2.4”
HEAD TUBE LENGTH: 4.7”
WEIGHT: 5 LBS
- 100% 4130 Chromoly Frame
- Nightshift style, double-butted, top and down tubes with proven internal gusseting.
- Integrated seat clamp
- Miter Cut Top Tube:
A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwiched” top tube at this critical junction.
- Tapered Chain & Seat Stays:
Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
- Hollow Dropouts with Chain Tensioners:
Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.
- Removable Brake Hardware:
Proven, removable, brake mounts and cable guides/stops work flawlessly when installed and allow for a sleek overall look when they’re not.
