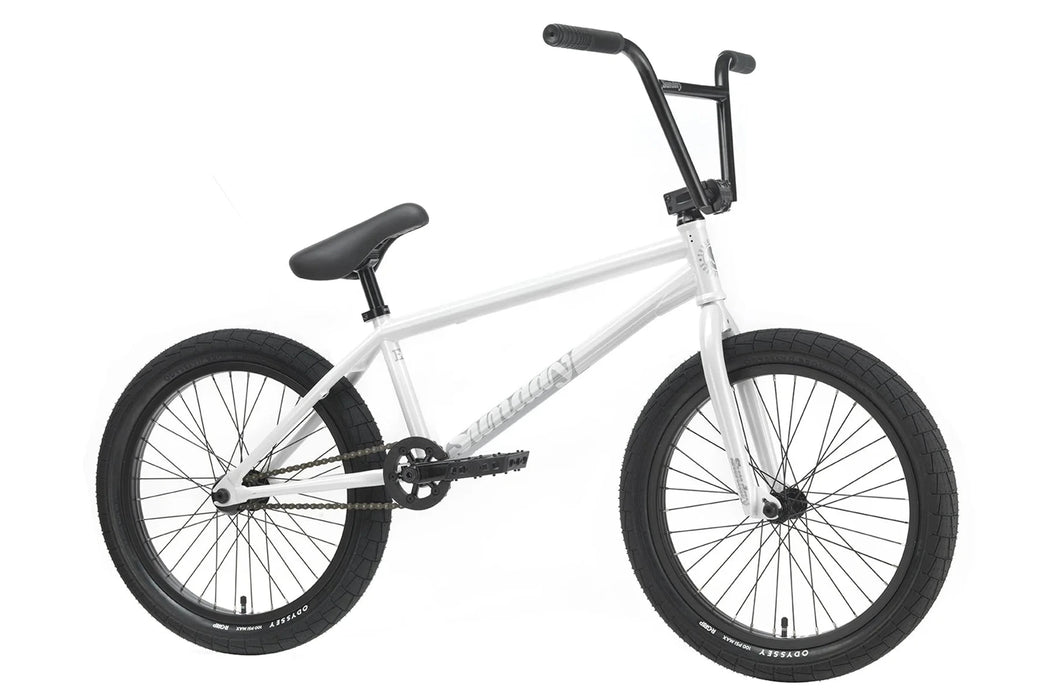

Sunday EX Julian Arteaga Signature Bike

The Sunday EX Arteaga Bike gets you into a pro level bike without completely breaking the bank. Julian Arteaga's signature model gives you a 100% chromoly frame, fork, and bar with Sunday's signature wave downtube backed with a laundry list of aftermarket parts.

• 100% Chromoly Frame, Fork, and 4-piece Bars
• Sunday Signature Wave Down Tube
• Sunday Freeze Front Load stem
• Sunday Saker 3-PC Cranks, 165mm
• Odyssey Utility Pro 25t Sprocket
• Odyssey Clutch PRO Freecoaster
• Odyssey Stage 2 Rims
• Odyssey Broc 2.40" Tires


Specifications

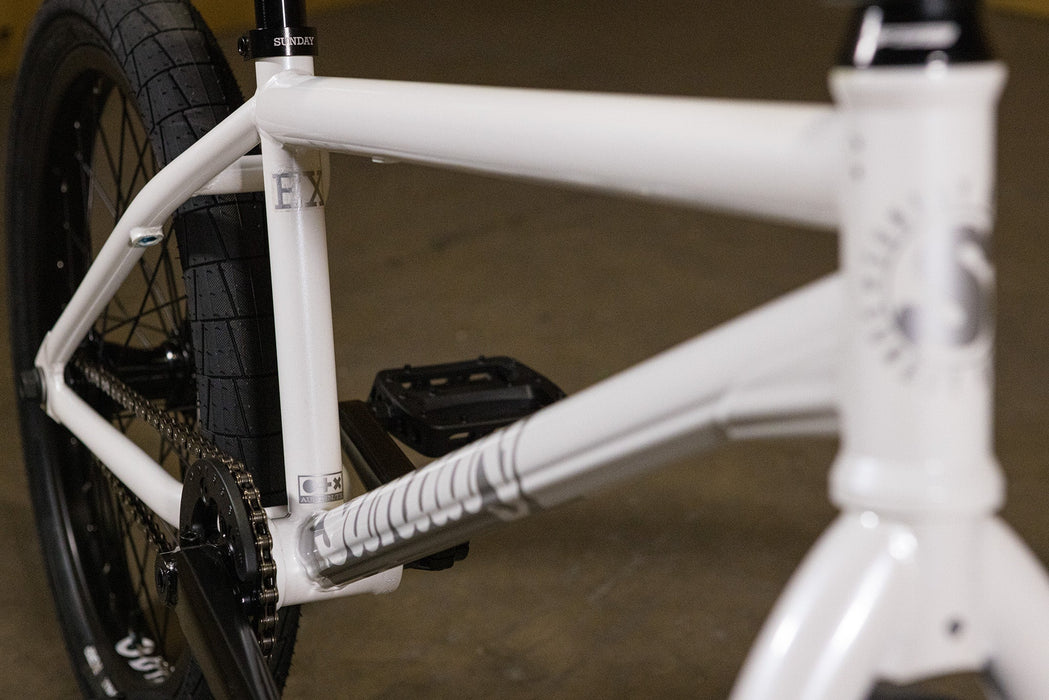

Frame: 20.75" top tube, 100% chromoly frame with wave downtube, removable brake hardware
Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8"
Alloy Cap:  Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Linear Quik Slic

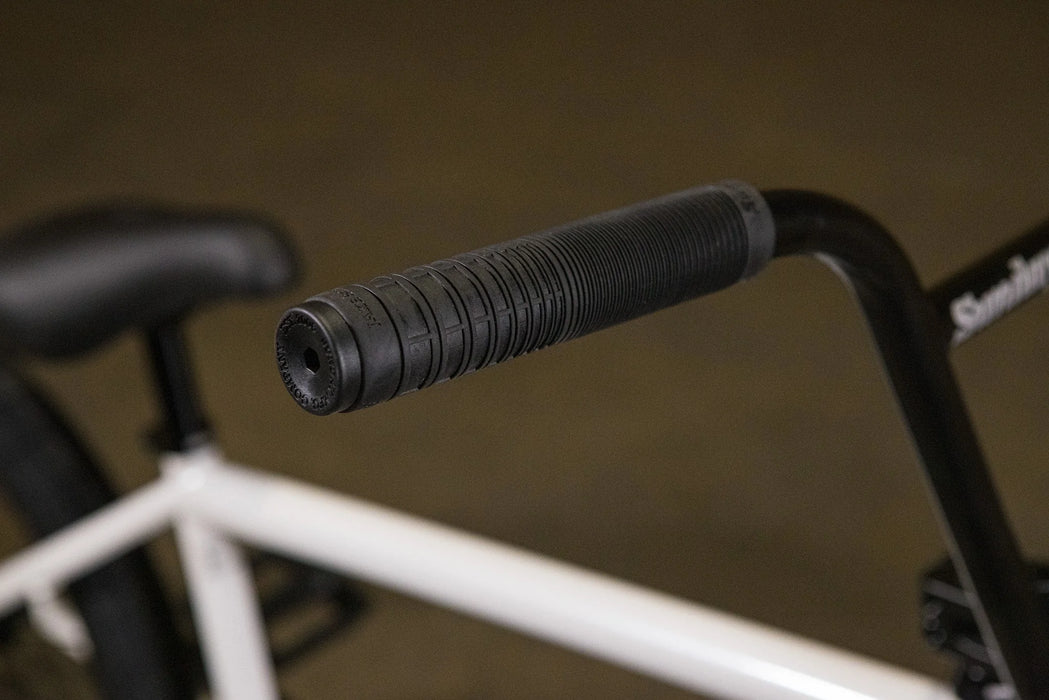

Grips: Sunday Jake Seeley Signature

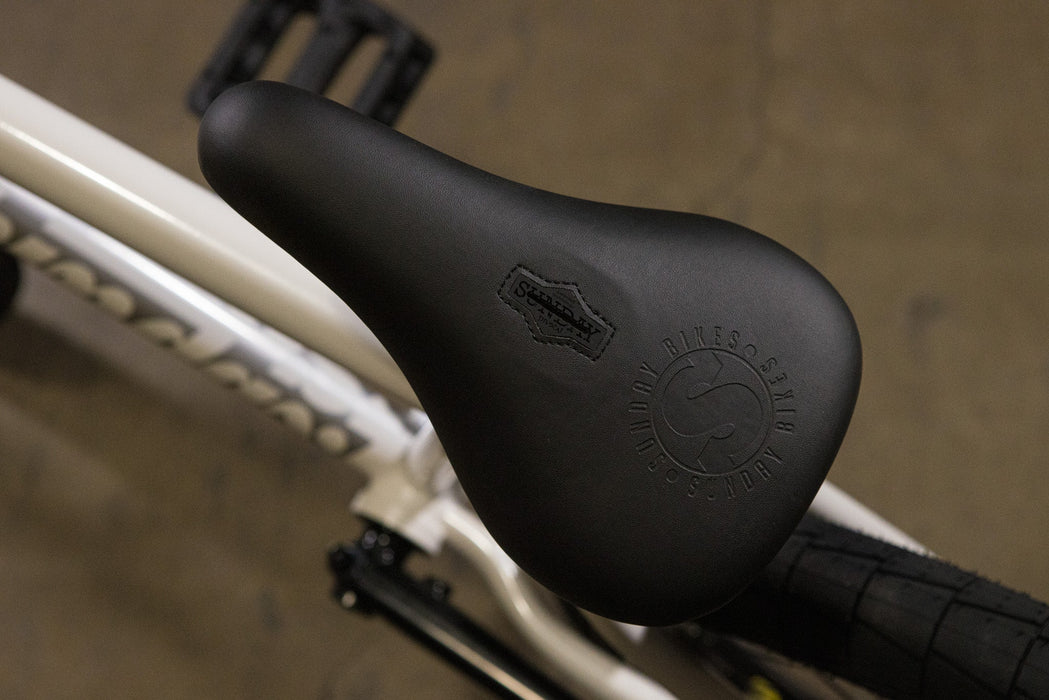

Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday

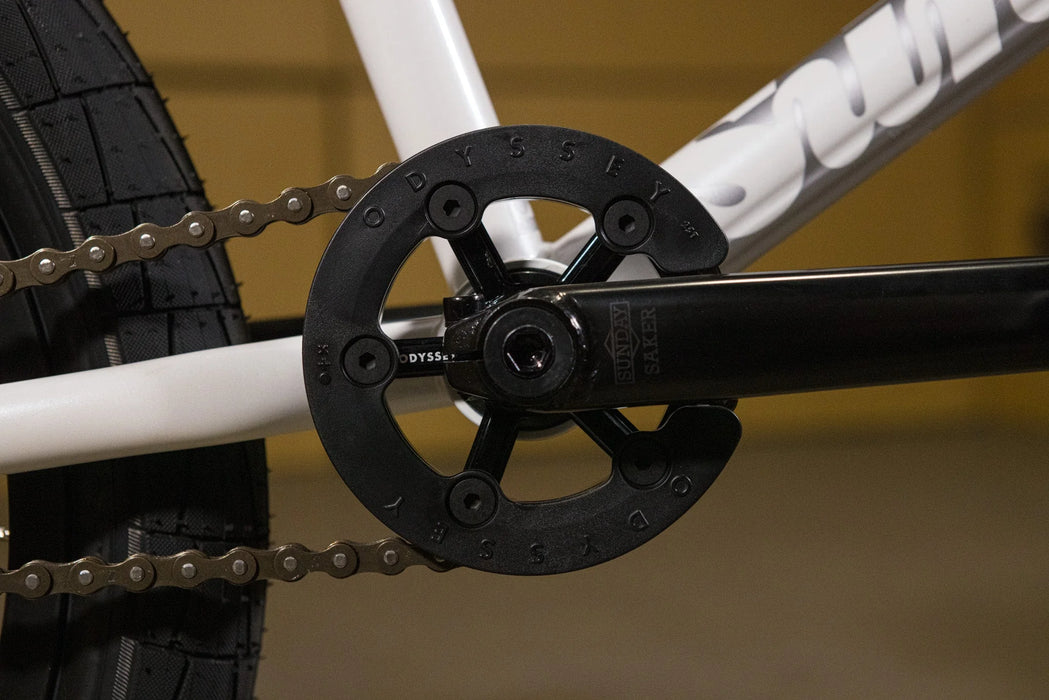

Sprocket: Odyssey Utility Pro, 25T, w/Plastic Guard
Cranks: Sunday Saker, 165mm (LHD/RHD Compatible)
BB Parts: Sealed, Mid, 19mm

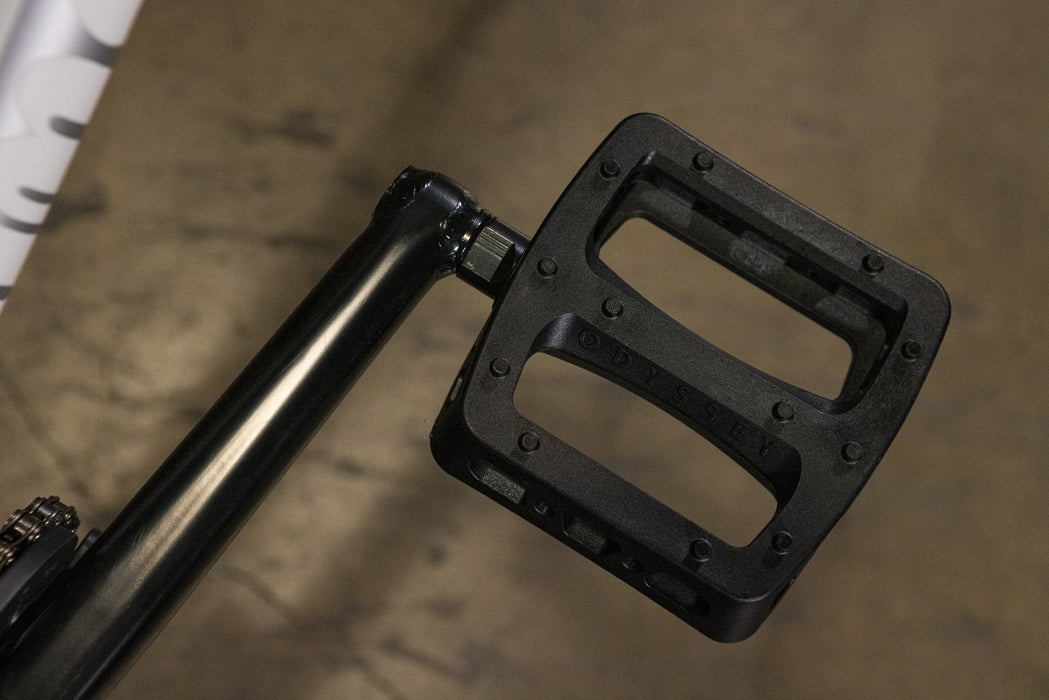

Pedals: Odyssey Twisted PC Pro

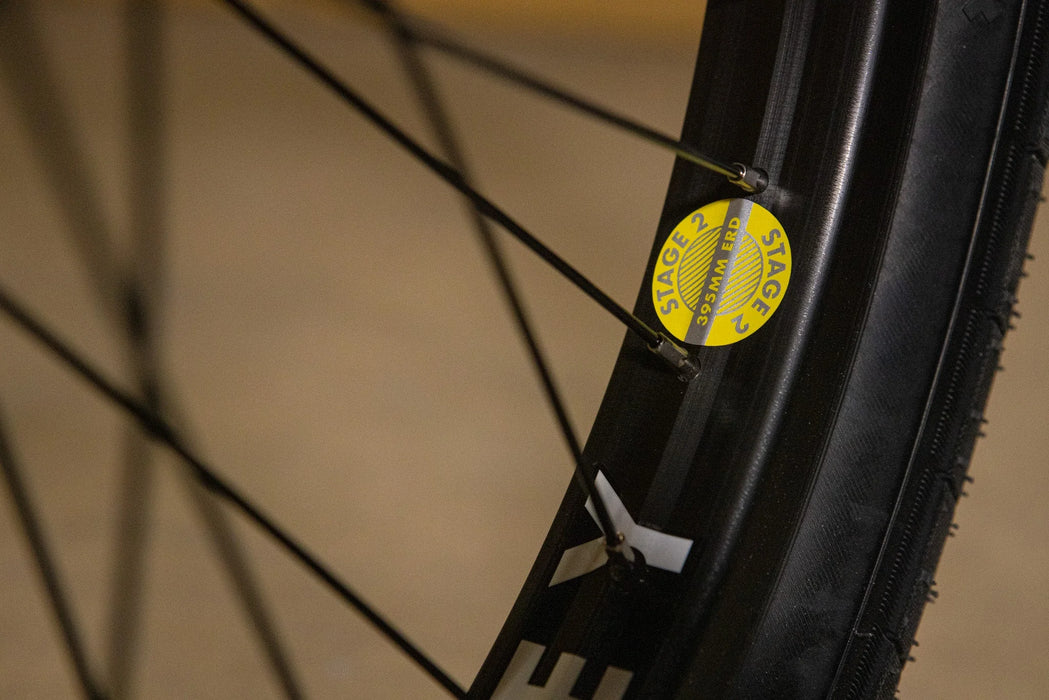

Rims: Odyssey Stage 2, 20", 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8" inbound axle bolts

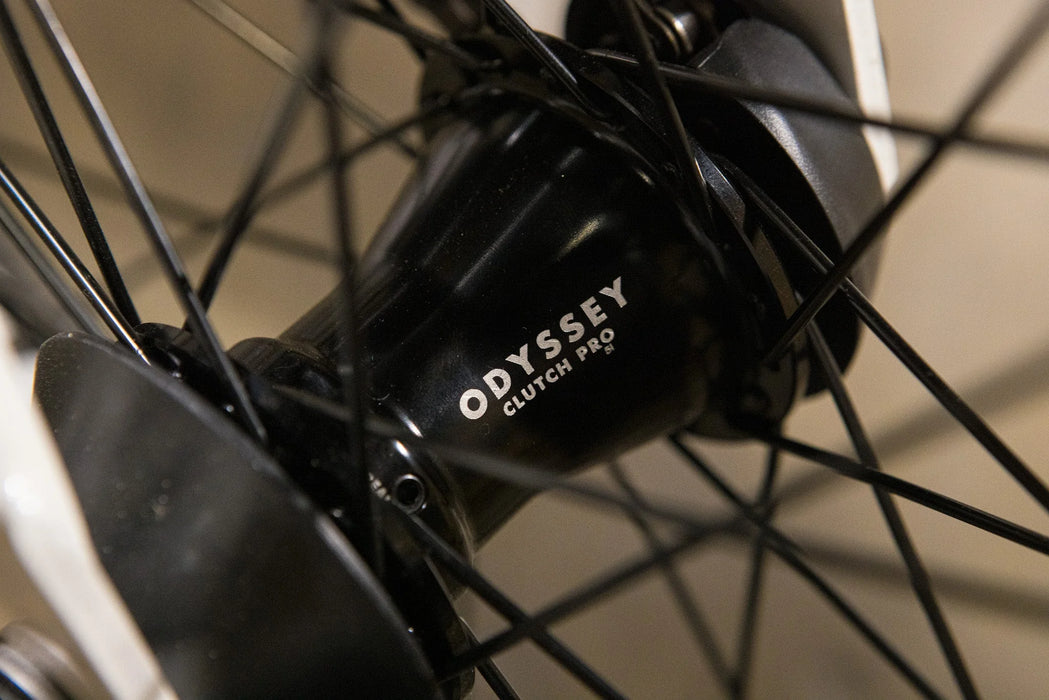

Rear Hub: Odyssey Clutch PRO freecoaster, 36H, 14mm inbound axle bolts w/ 9T driver, RHD, plastic guards
Spokes: 14g steel, black

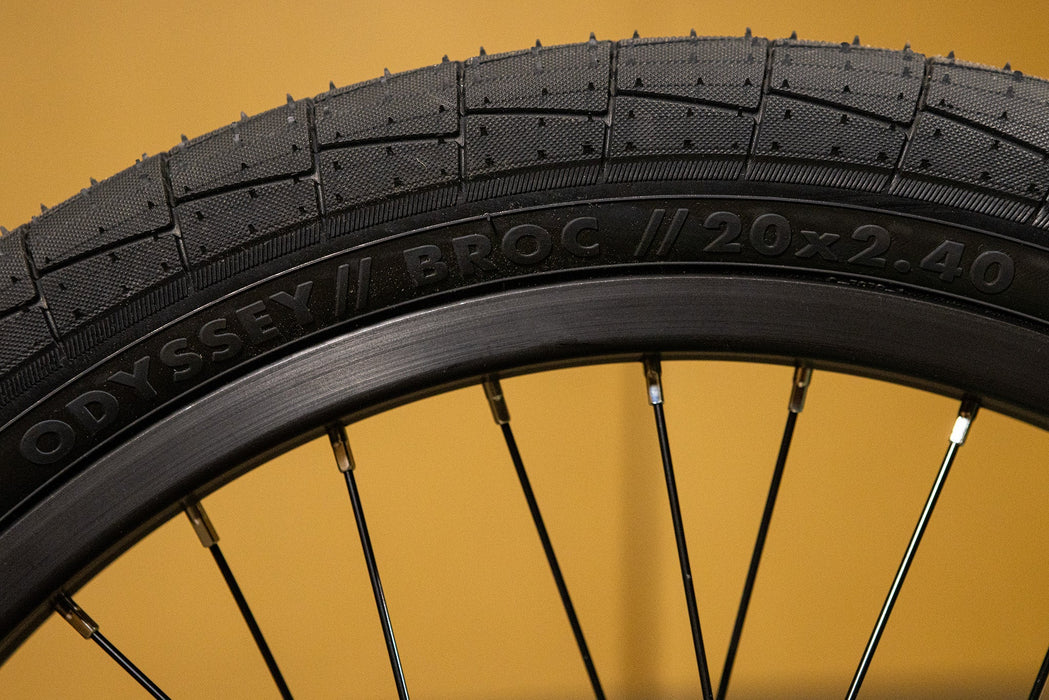

Tires: Odyssey BROC Tire, 20 x 2.4" (F & R)
Chain: KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)

Frame Geometry

Top Tube Length: 20.75"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 9"

Handlebar Geometry

Rise: 9"
Width: 29"
Backsweep: 12°
Upsweep: 3°
