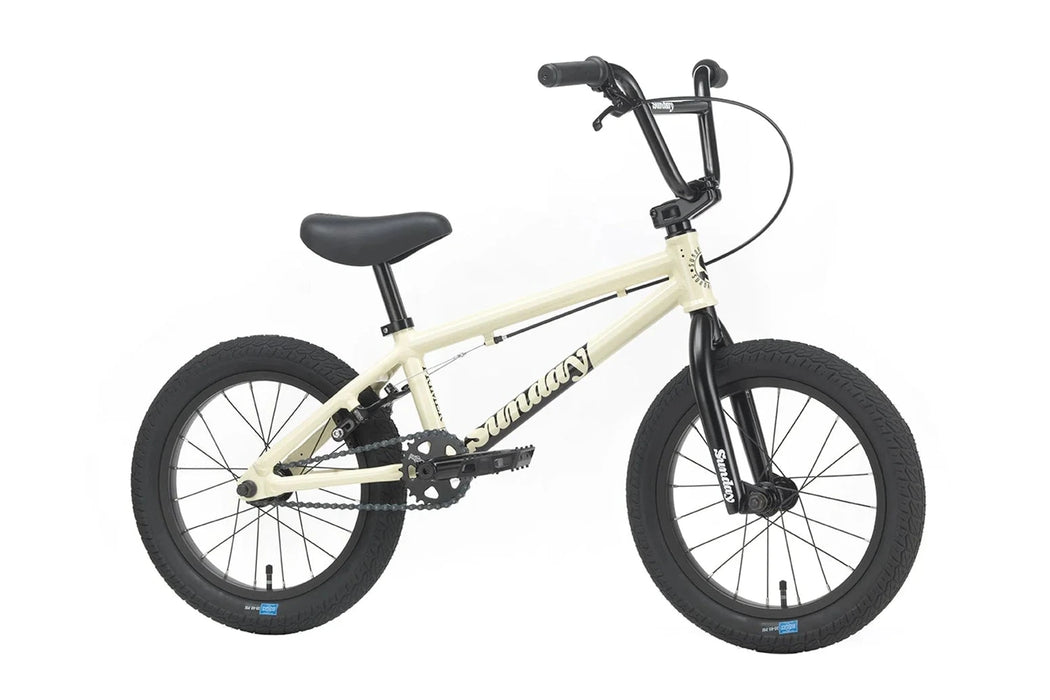

Sunday Aluminum Primer 16" Bike
Sunday has just introduced their all new aluminum frames, perfect for younger riders. The aluminum frames are still very sturdy while shaving a bit of unnecessary weight for smaller riders. Sunday also set up the smaller bikes with a "pro level geometry", meaning the smaller bikes are designed for serious riding.
- ALL NEW ALUMINUM FRAME
- 16" Pro-Style Geometry
- 40mm Top Load Stem
- FSA Headset
- KMC S1 Chain
- Sunday Badge Seat and Post Combo (new more level position)
- Odyssey Springfield Brakes
- Sealed 10t Cassette Hub
- Sunday Current v1 16" Tires
Specifications

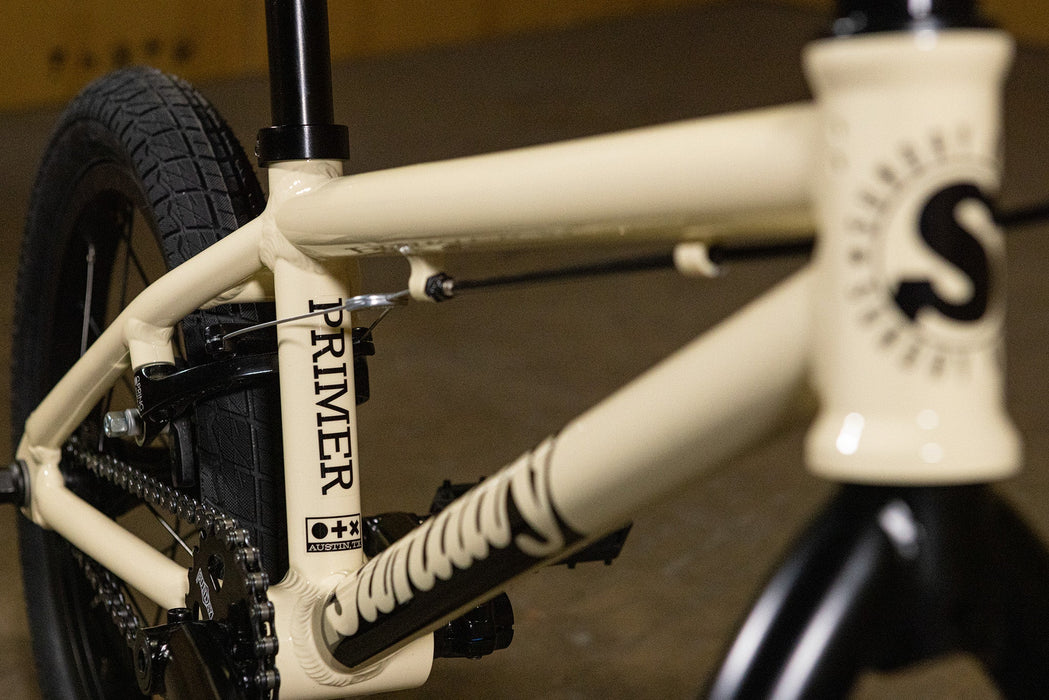

Frame: Sunday Primer Aluminum, 16.5" top tube, integrated 1-1/8" head tube
Fork: Sunday Primer, 16" fork w/ 2-piece steerer tube and welded pre-load

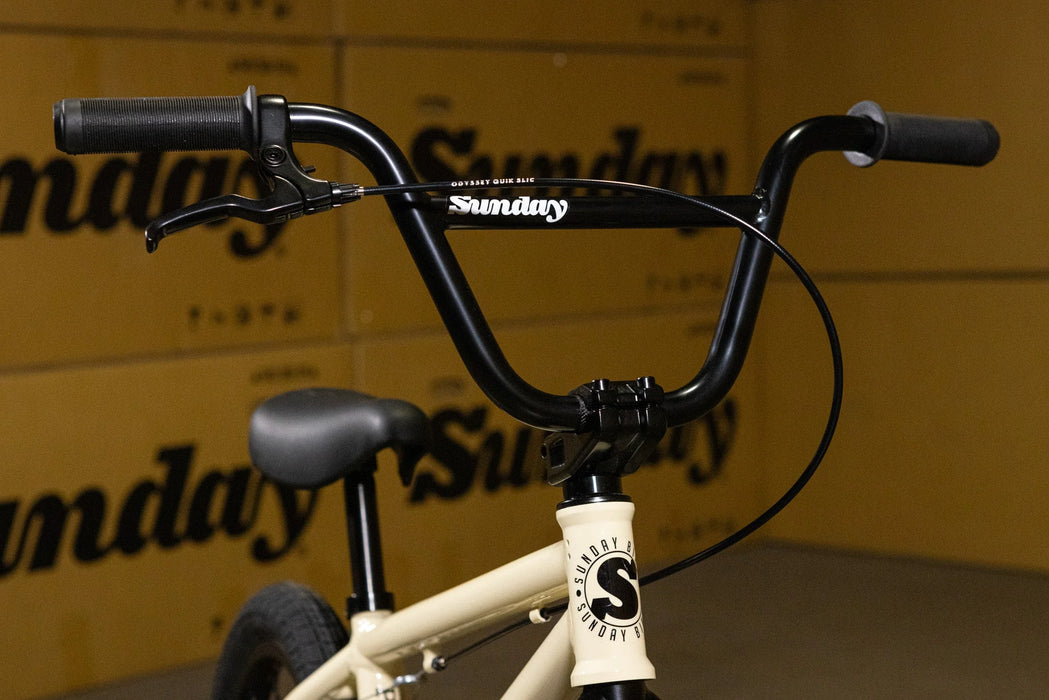

Handlebar: Sunday, 2-piece

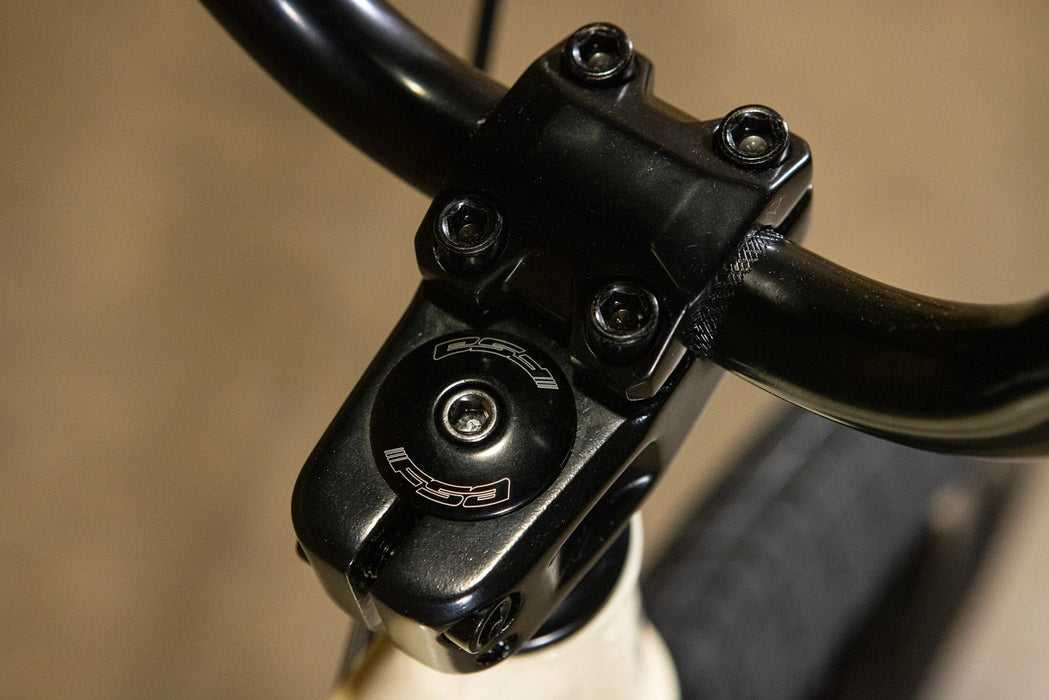

Stem: Top load, aluminum, 40mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap
Brake Lever: Junior Aluminum, U-brake compatible

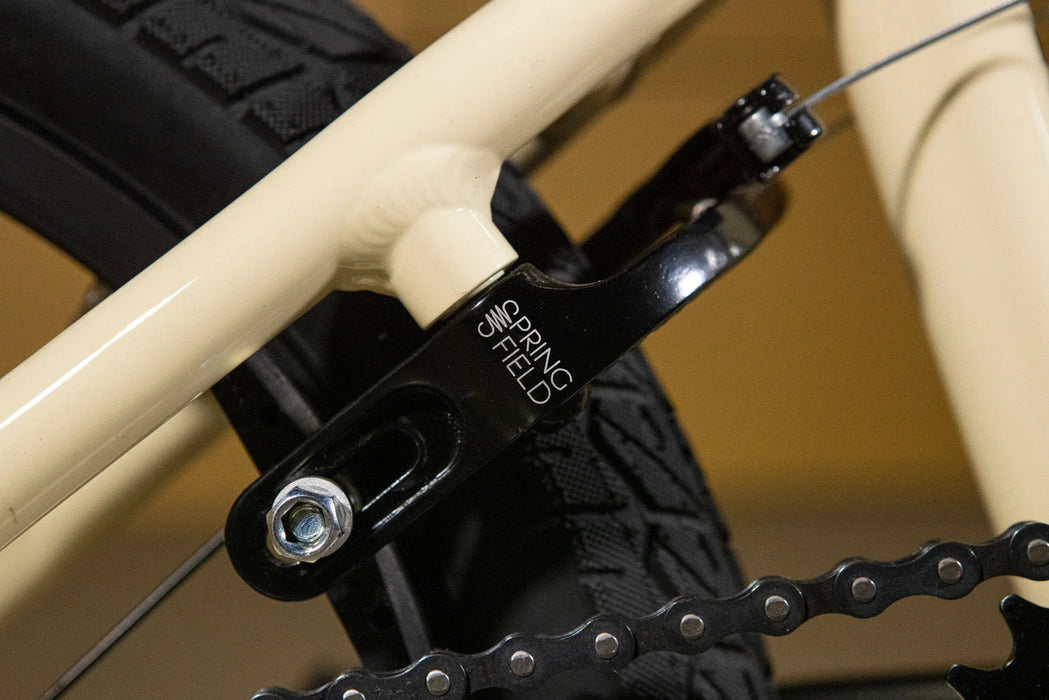

Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Velo Junior

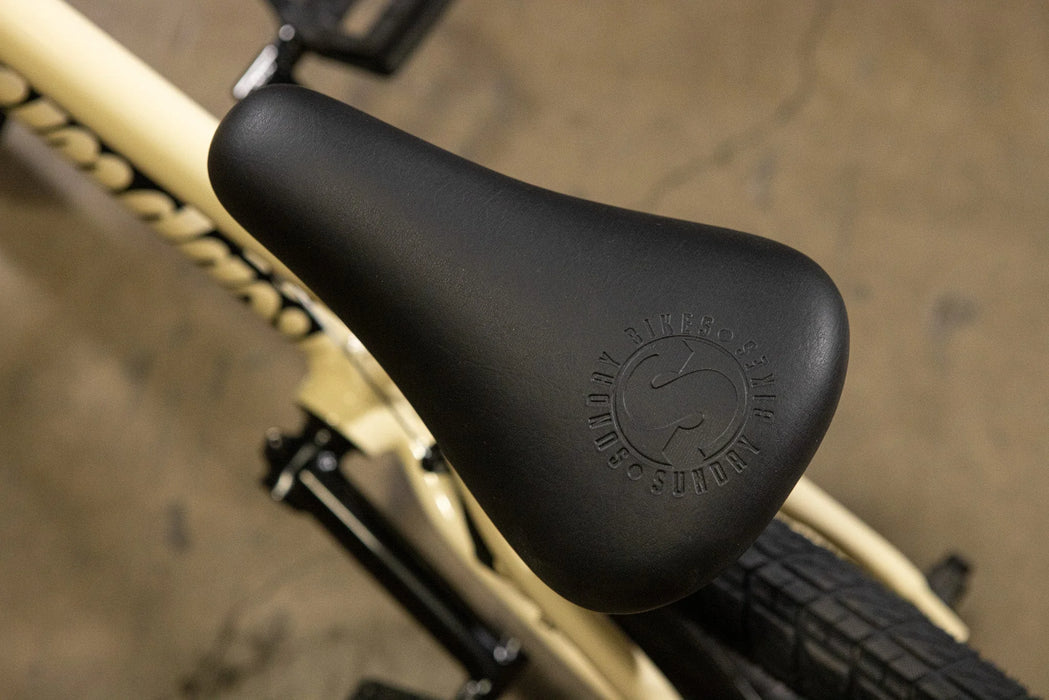

Seat: Sunday Badge, seat and post combo
Seat post: Integrated
Seat Clamp: Sunday

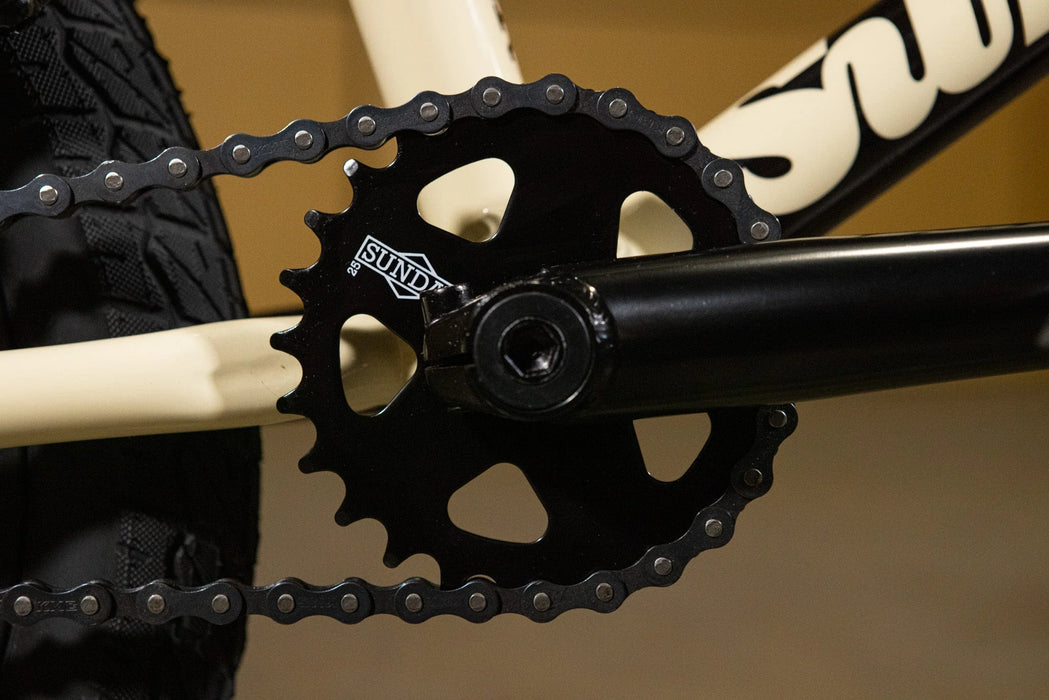

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 127mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

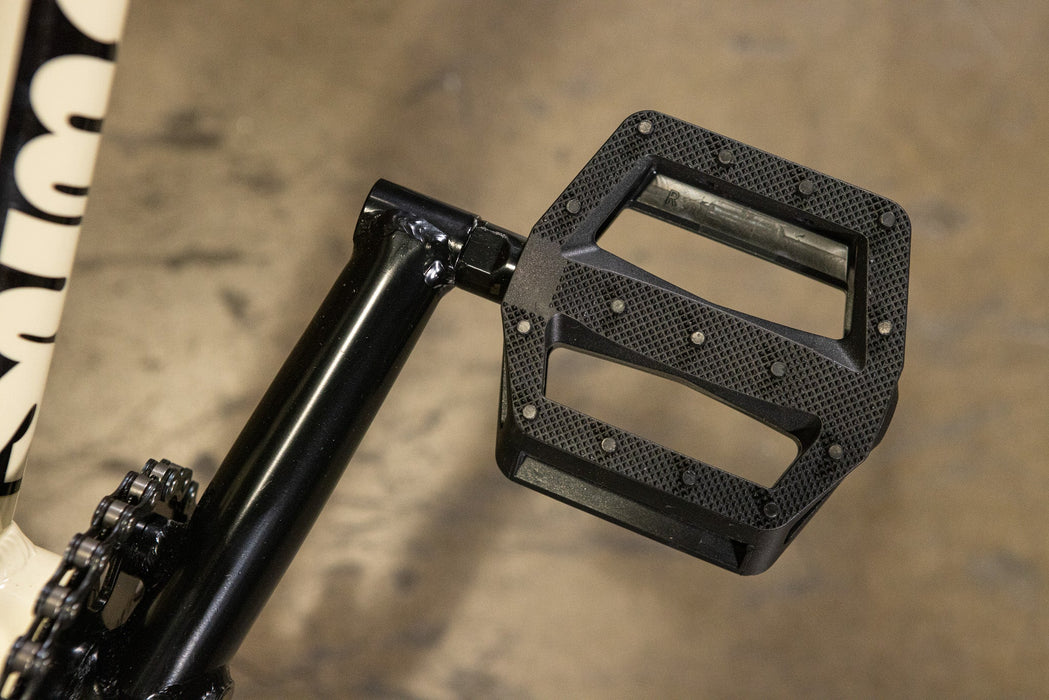

Pedals: FPD platform, plastic
Rims: P-7X aluminum, 16", 20H

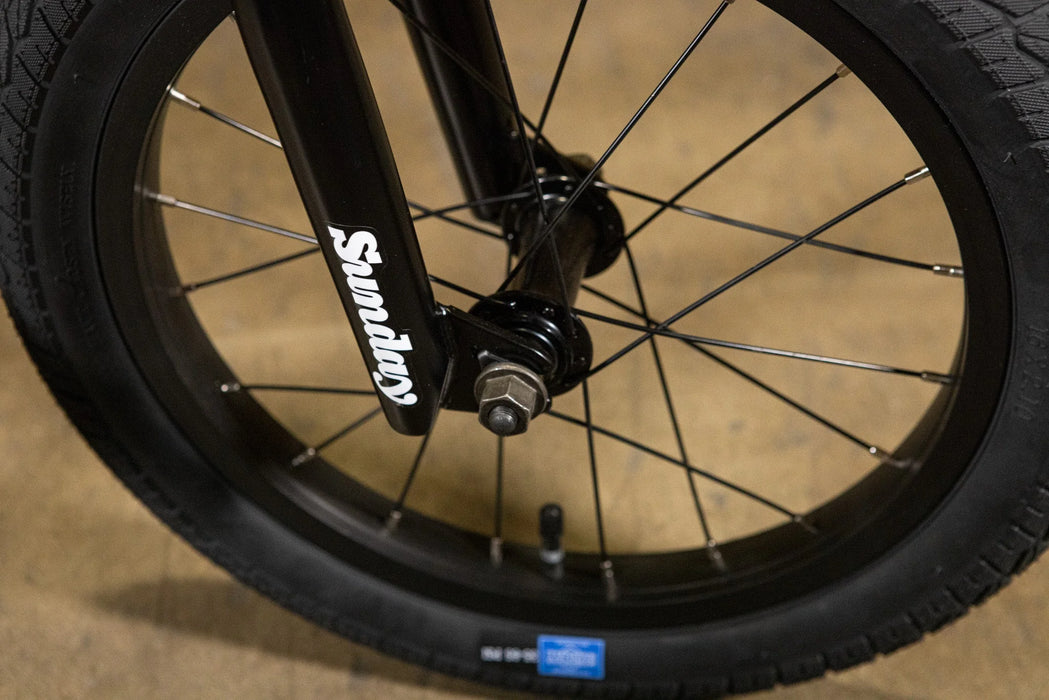

Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle
Rear Hub: Sunday, 20H, sealed, 14mm axle w/ 10T Driver
Spokes: 14g steel, black

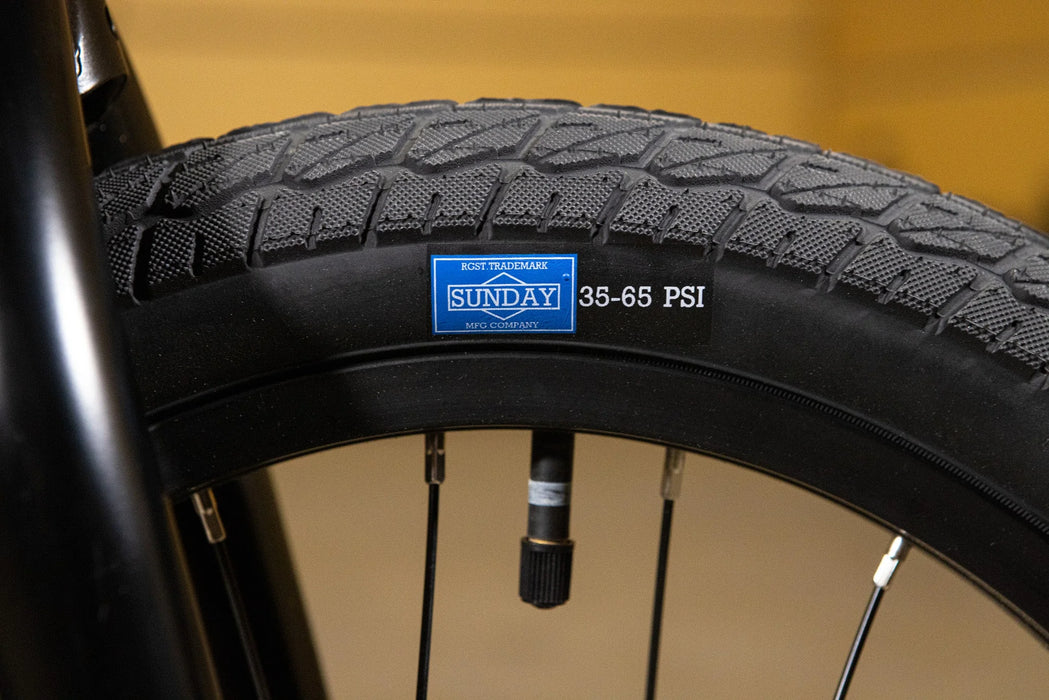

Tires: Sunday OEM, 16 x 2.20" (F & R)
Chain: KMC S1
Approx. Weight: 23.3lbs (with brakes)
Frame Geometry
Top Tube Length: 16.5"
Head Tube Angle: 74.5°
Seat Tube Angle: 71°
Chainstay Length: 10.6"-10.85”
Bottom Bracket Height: 9.25"
Standover: 6.9"
Handlebar Geometry
Rise: 6.75"
Width: 23"
Backsweep: 12°
Upsweep: 1°
