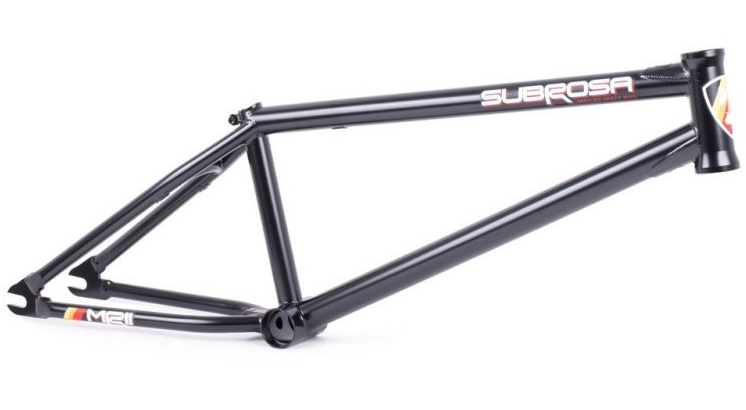

Subrosa MR2 Frame

Although Matt’s big burly riding style hasn’t changed, he wanted to fine-tune a few things on his frame and change the theme to freshen it up a bit. The standover height changed from 8.75″ to 9″ to make the bike a little more stable. The B.B. was also raised just a little bit, for a little extra pop. Increased length of the dropout slot to make the frame compatible with more gear ratios, and it also makes it easier to remove the rear wheel during repairs.

• Matt Ray Signature Frame
• Sizes: 20.5″, 20.75″, 21″, 21.2″
• 4130 chromoly, double butted top tube and down tube
• Head tube: 75° / 120mm
• Seat tube: 71° / 9.0″ / integrated seat clamp
• Chain stays: Range 13.3″-13.85″ Centered 13.5″
• BB: 11.65″/ 38mm – Mid
• Weight: 4.8 lbs (20.5″)

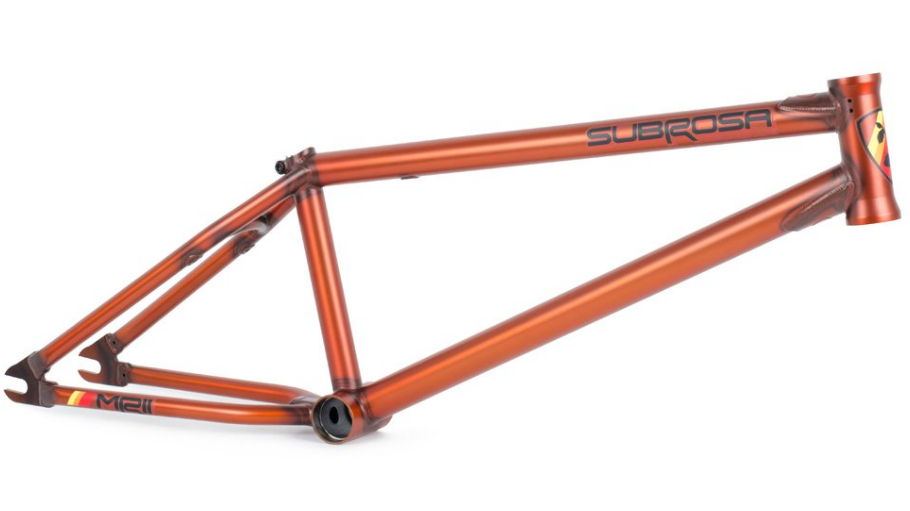

• Colors: Satin Translucent Orange,  Black
