Check all Stock availability
Trans Red / 20.5" Top Tube
$409.95
Trans Red / 20.75" Top Tube
$409.95
Trans Red / 21" Top Tube
$409.95
S3 Green / 20.5" Top Tube
$409.95
S3 Green / 20.75" Top Tube
$409.95
S3 Green / 21" Top Tube
$409.95
description

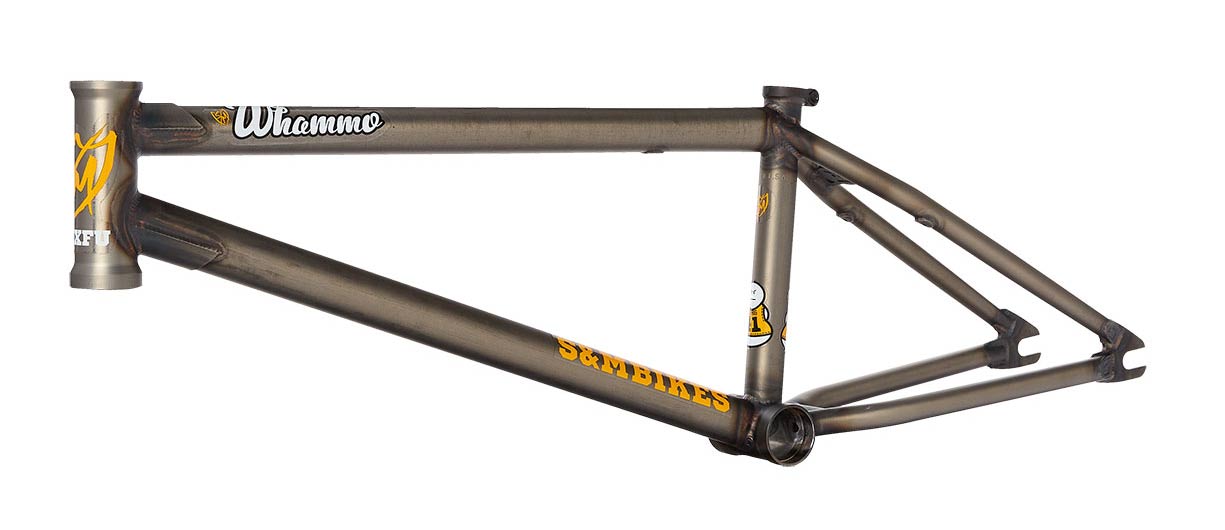

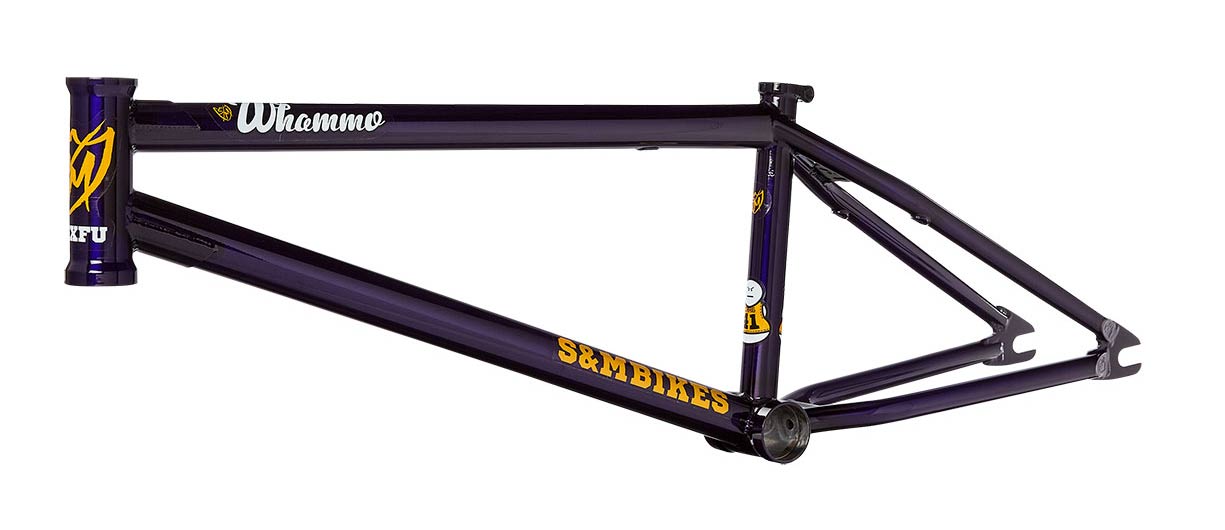

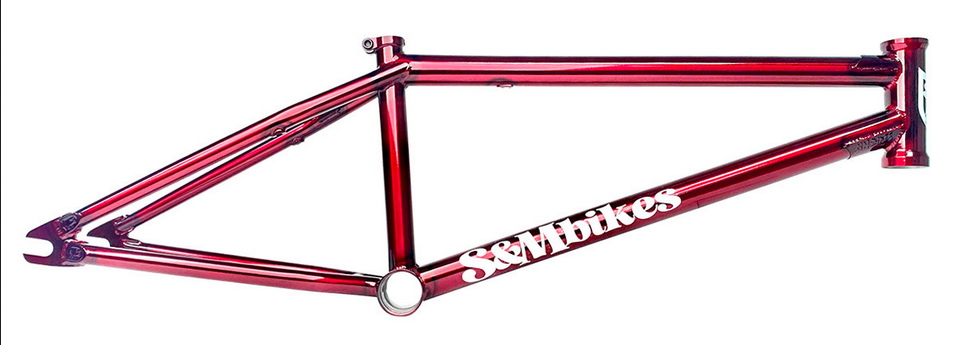

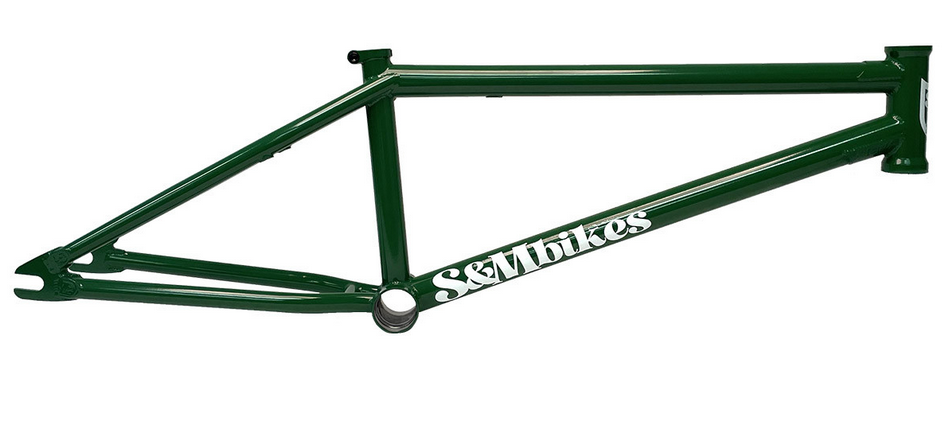

The S&M Whammo V2 Frame is now built with taller 5" headtube, shorter 12.9" rear chainstay and an 11.8" bottom bracket height.
TOP TUBE LENGTH | 20.5″,20.75″,21″ |
REAR END LENGTH | 12.9″-13.5″ |
HEAD TUBE ANGLE | 75.3° |
HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
SEAT TUBE ANGLE | 71° |
SEAT CLAMP | Integrated |
SEAT POST SIZE | 1″ (25.4mm) |
BB HEIGHT | 11.8″ |
BB STYLE | Mid |
STANDOVER HEIGHT | 8.85″ |
BRAKE MOUNTS | Thread-On (sold separately) 990 Mounts |
DROPOUTS | 14mm Slot, 4Q-Baked |
GYRO TABS | None |
WEIGHT | 4.65 lb (2.12 kg) |
TUBESET | Butted ThermalX Tubing |
