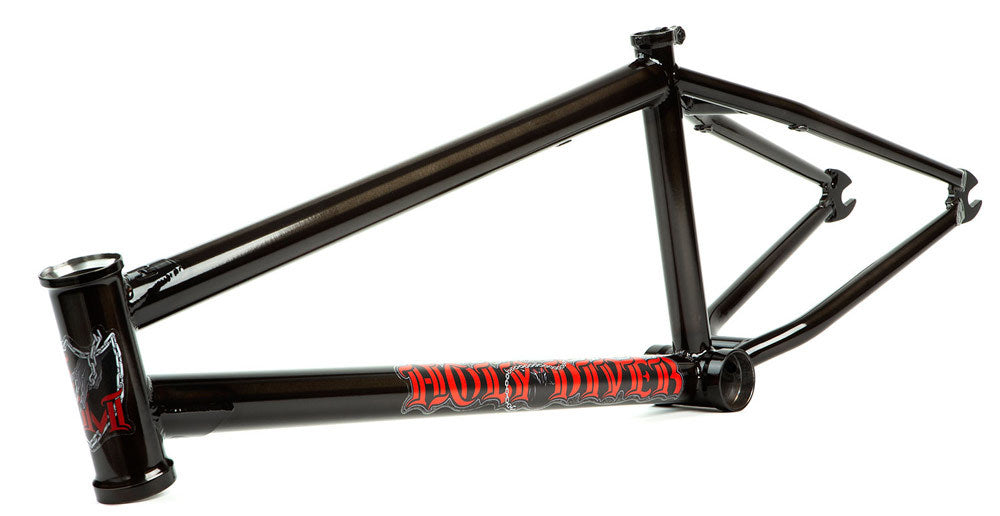

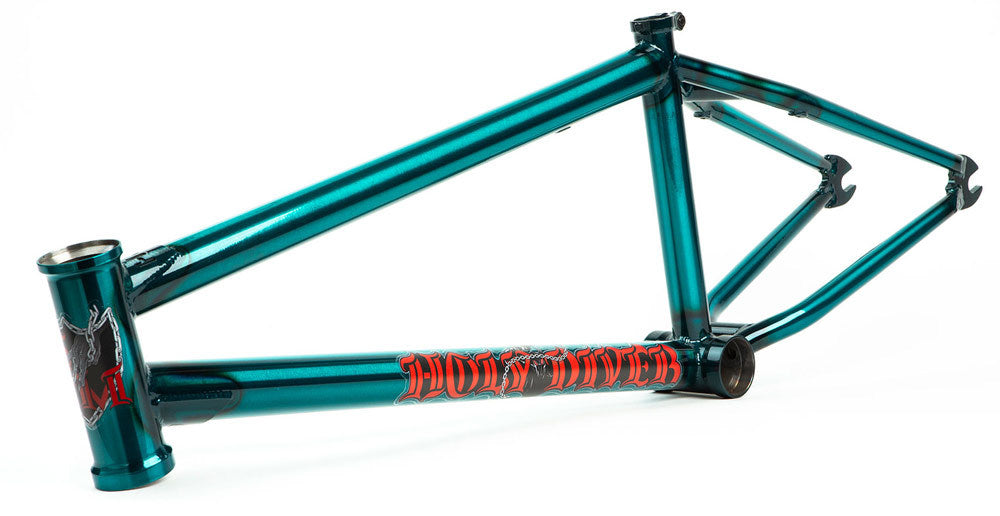

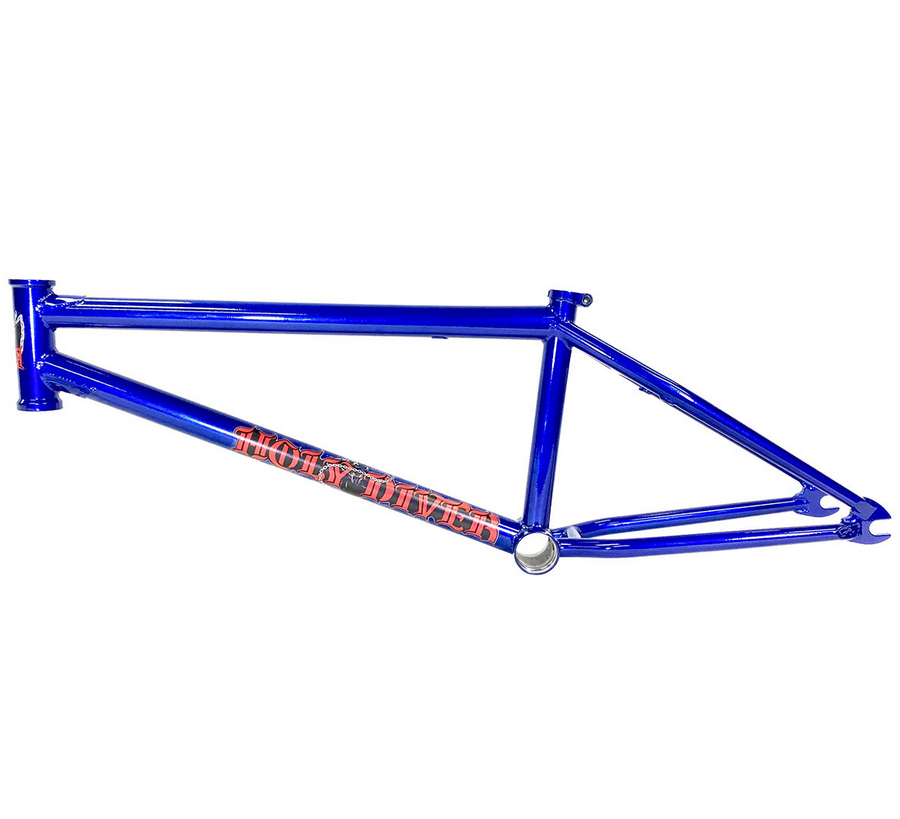

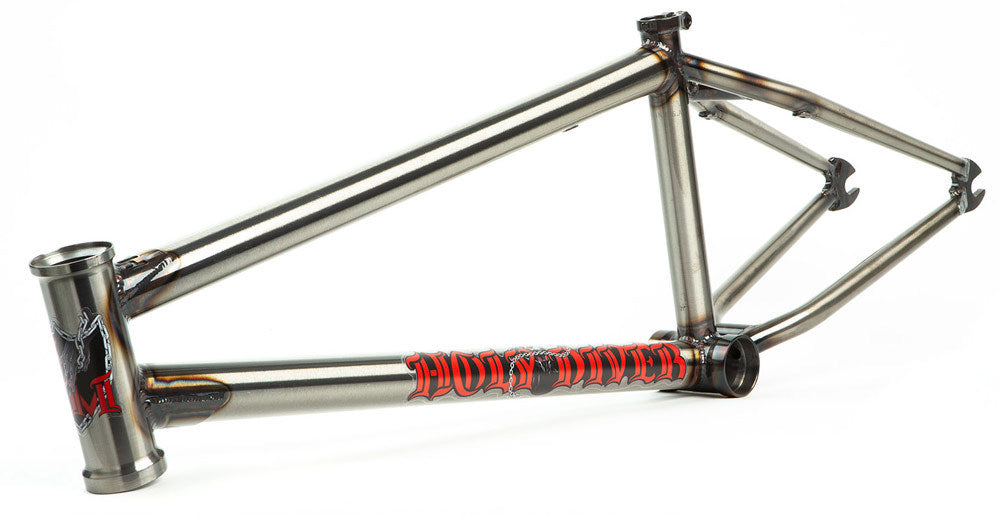

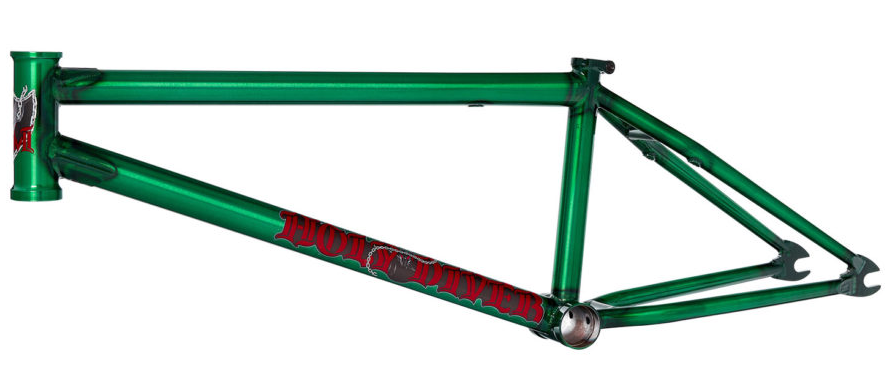

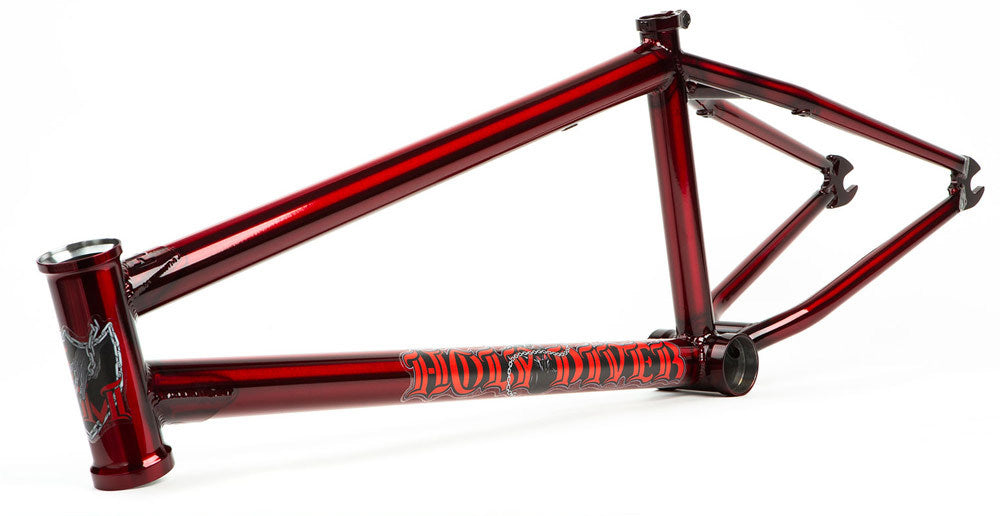

S&M Holy Diver Frame

by S&M
Sold out
$389.95
SKU 01-DIVER-BLK-20.5
Check all Stock availability
Out Of Stock
description

The S&M Holy Diver Frame is built with new school geometry and is ready to be ridden HARD. The Thicker drop outs are micro sized to keep them from catching on grinds but large enough to give you good peg room. S&M set the head tube up to be a little taller than average to help reduce the number of headset spacers leaving you with that clean look

TOP TUBE LENGTH 20.5″,20.75″,21″
REAR END LENGTH 12.7″-13″
HEAD TUBE ANGLE 75.5°
HEAD TUBE STYLE 5″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Investment Cast
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid
STANDOVER HEIGHT 9″
BRAKE MOUNTS Thread-On (sold separately) 990 Mounts
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.65 lb (2.12 kg)
TUBESET ThermalX Butted Tubing
