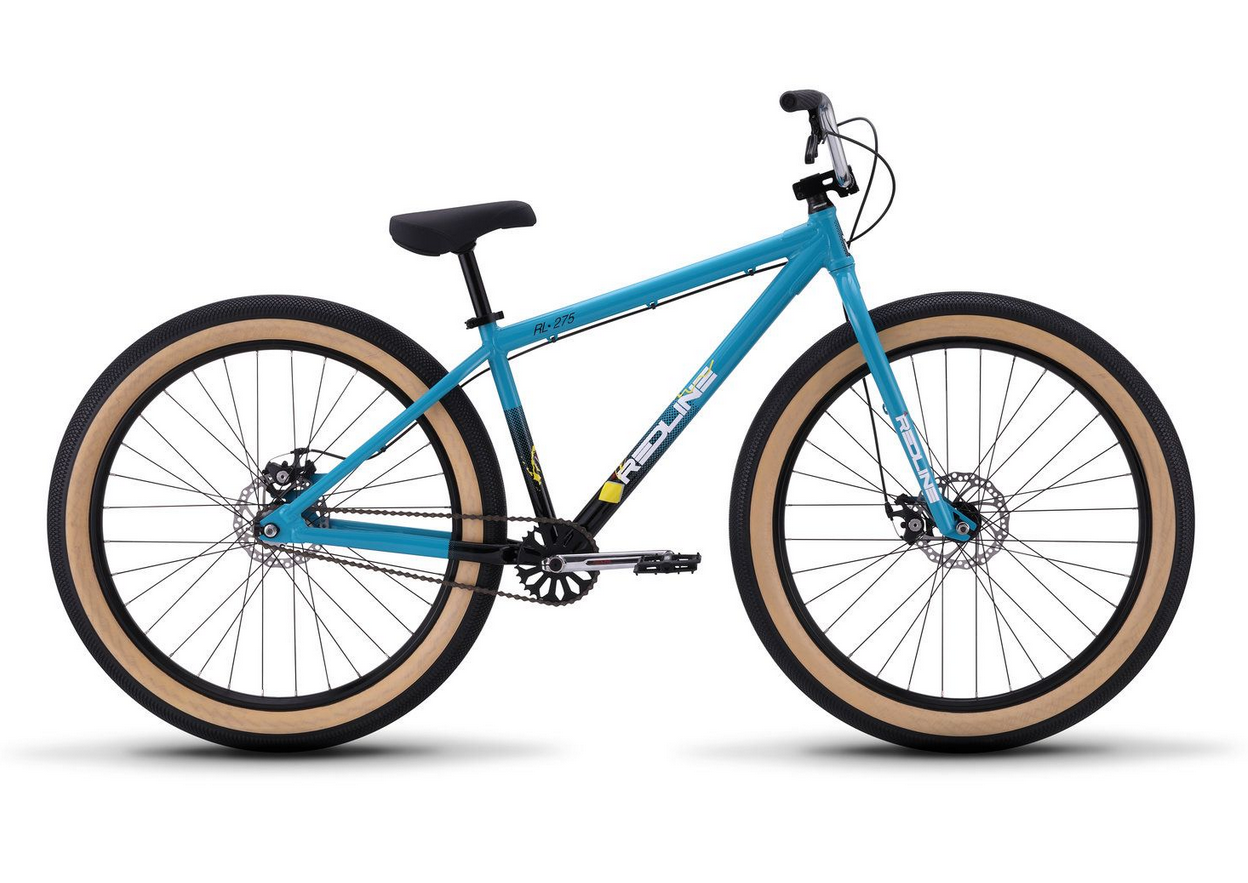

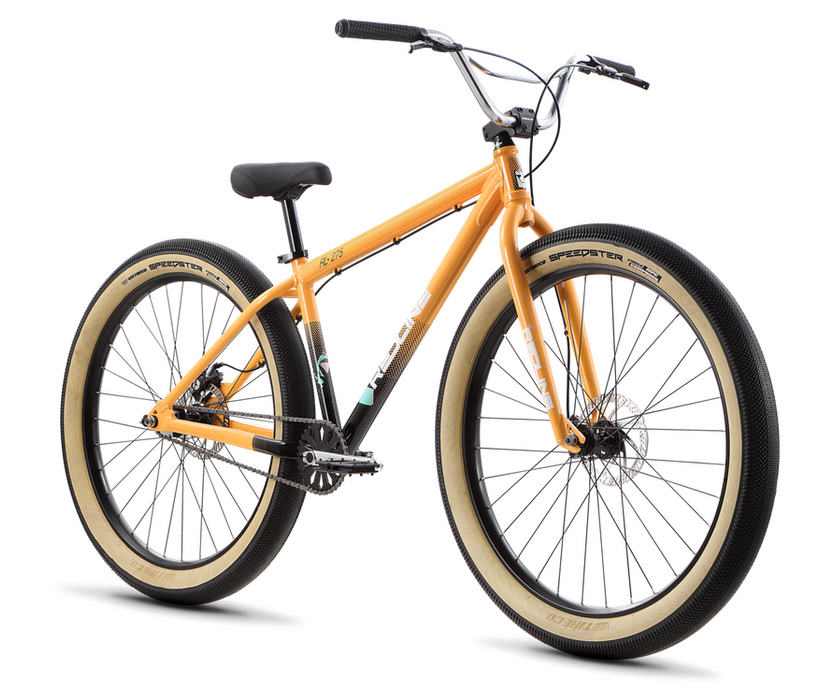

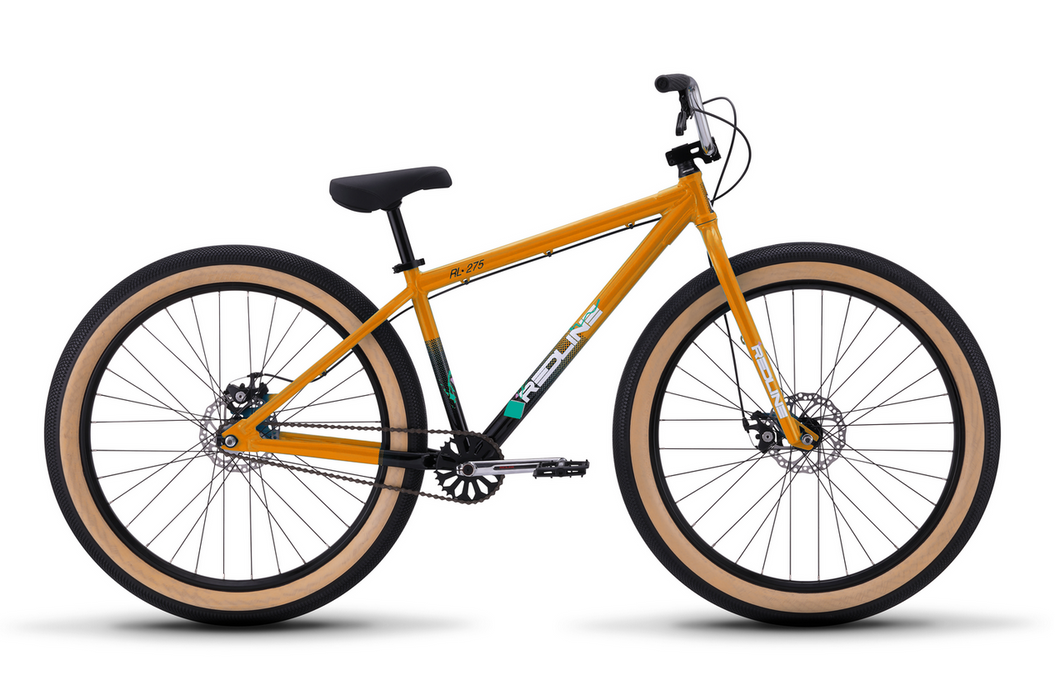

Redline RL275 27.5" Bike 2022

Sold out
Original price $849.95 - Original price $899.95
Original price
$849.95
$849.95 - $899.95
Current price $849.95
SKU

Redline RL275 27.5" Bike 2022

Frame: 6061 Alloy with Disc Tabs
Fork: Full Chromo, Disc
Headset: Sealed Integrated Headset 1 1/8, Aluminum top cap
Cranks: Classic Flight Cranks, Dual Pinch, Chromo, w/Chrome Finish and Retro Decal, 180mm
Sprocket: Alloy, 33t
Bottom Bracket: Sealed Euro BB
Cogset: 16t
Chain: KMC Z33
Front Hub: Formula Aluminum Disc, Nutted Axle, 32h
Rear Hub: Formula Aluminum, Cassette Spaced for Single Speed, Disc, 32h
Spokes: Stainless 14g, Black
Rims: Alloy DDM-7 Plus Rim
Tires: Vee Speedster 27.5 x 3.0
Brake Levers: Tektro ML520
Pedals: Monster Ultra Low Profile, PC, Sealed, Broached Chomoly Spindle
Handlebar: Retro Double Bend Crossbar, Chromo, 5.5" Rise, 12D Backsweep, 29" Wide
Grips: Monster 151, No Flange, Monster Plug
Stem: RL Aluminum Hollowpoint 55mm
Seat: Monster Fat Pivotal
Seatpost: Alloy Pivotal, 27.2 x 350mm
Brakes: Tektro MD-M300 Mechanical Disc

Top Tube Length: 22.2 "
Head Angle: 71.0 °
Seat Angle: 73.0 °
Chain Stay Length: 16.9 "
BB Height: 12.0 "
Stem Length: 55.0 mm
Handlebar Width: 28.0 "
Crank Length: 180.0 mm
