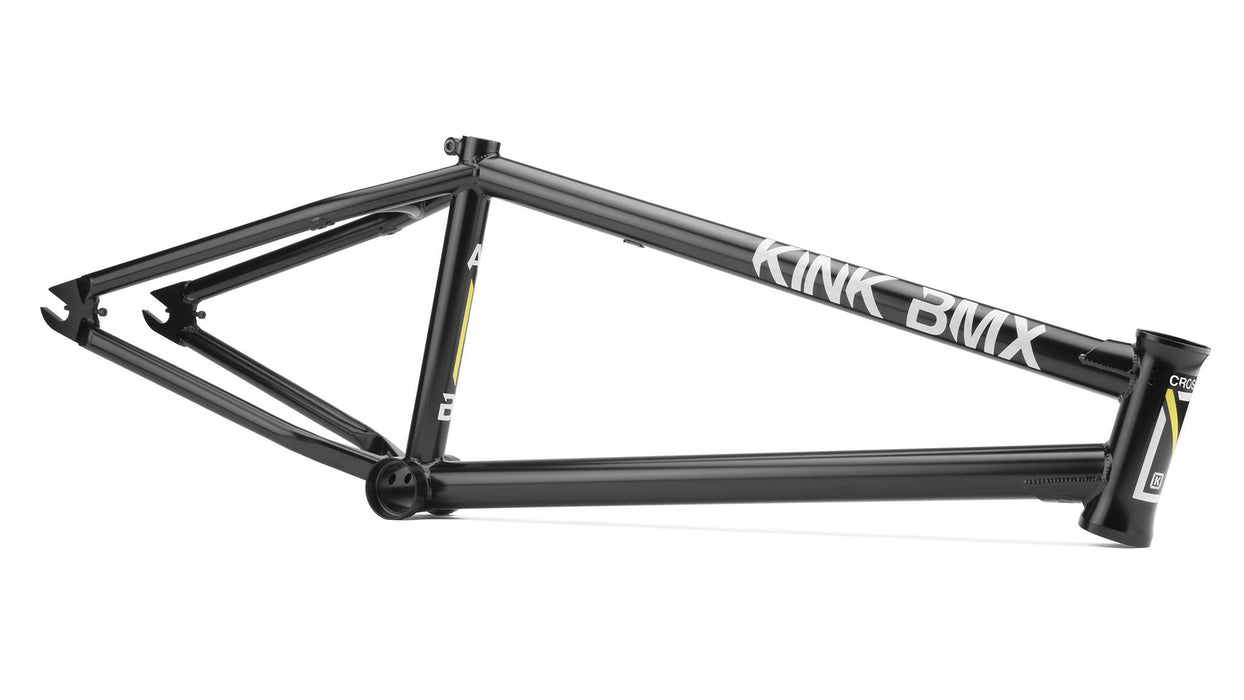

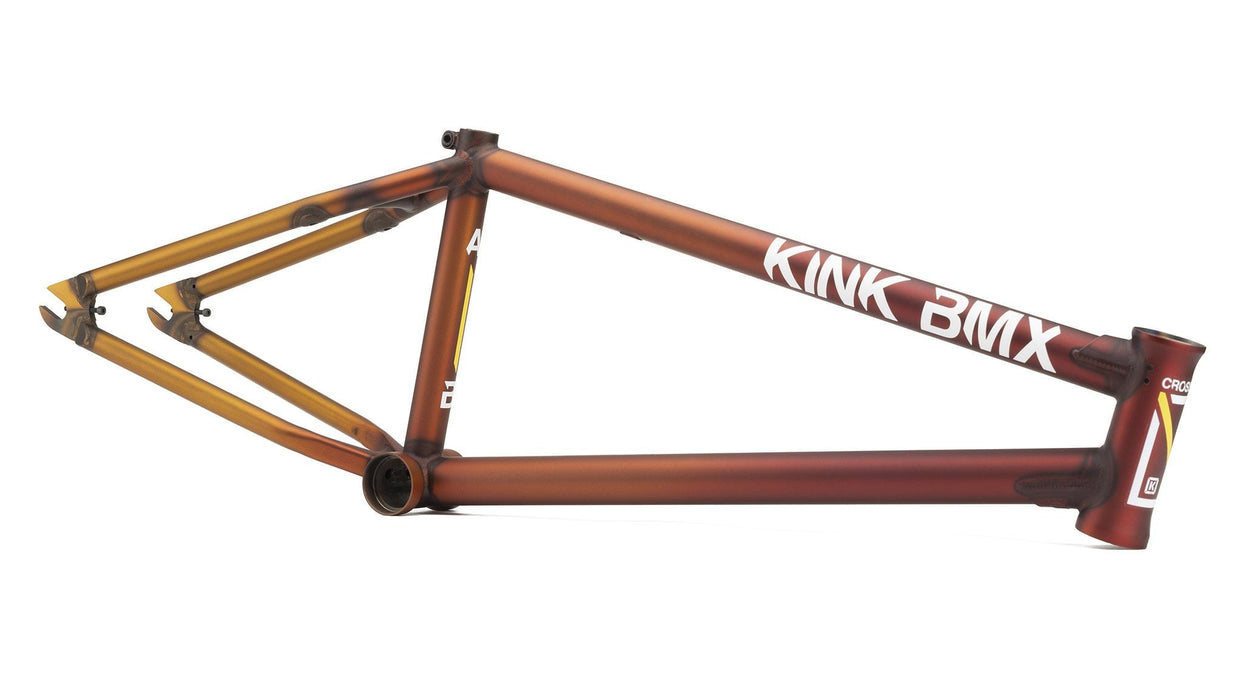

Kink Crosscut Frame

The Kink Crosscut Frame is Kink's super up to date frame featuring steep headtube, shorter back end 9.25" stand over height.

GEOMETRY
Toptube Sizes: 20.5", 20.75",21", 21.25"
Chainstay Length: 12.5" Slammed
Bottom Bracket Height: 11.6"
Standover Height: 9.25"
Headtube Angle: 75.5°
Seattube Angle: 71°
Material: 100% 4130 Chromoly Tubing
Headtube: Integrated Campy Spec
Dropouts: Laser Cut with Integrated Chain Tensioners
Bottom Bracket: Internally and Externally Machined Mid BB
Braking: Removable
Gussets: Toptube and Downtube
Seat Clamp: Integrated
Weight: 5lb 4oz (20.5")
