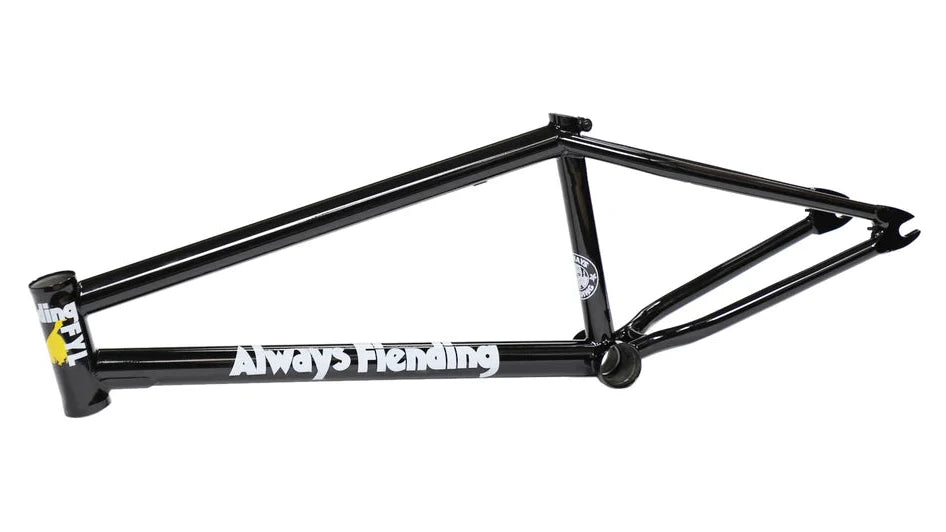

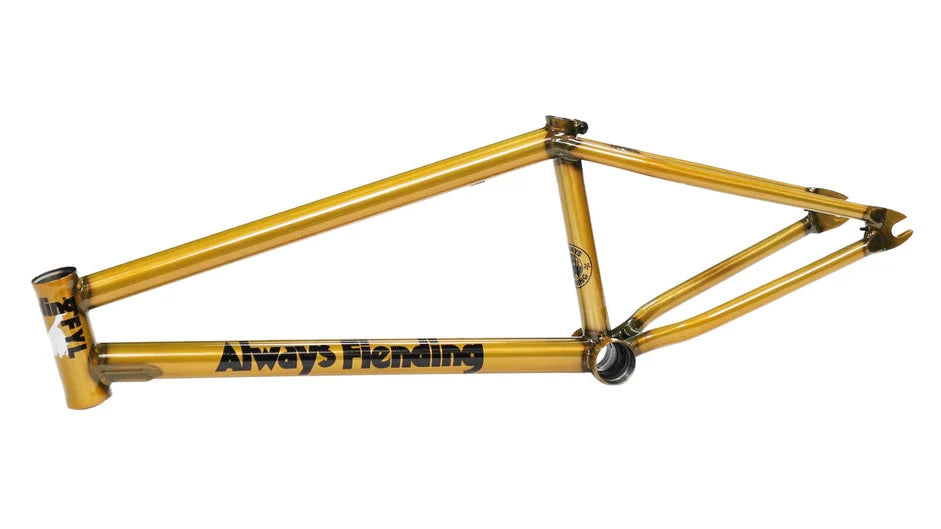

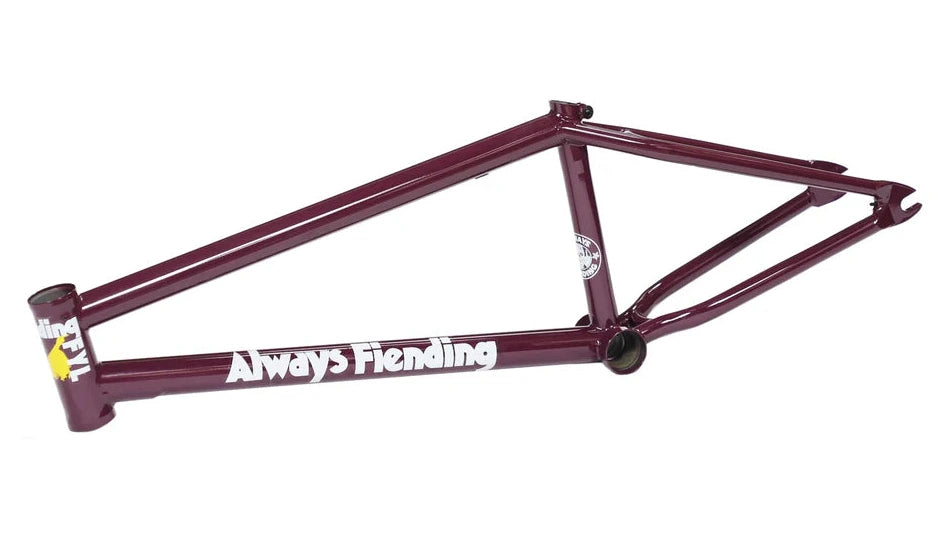

Fiend Reynolds V4 Frame

The new Fiend Reynolds V4 Frame is obviously designed by the man himself, Garrett Reynolds. Heat treated chromoly construction with a modern geometry that lends itself well to all types of riding. Looks good, rides good, and has all the gussets to keep the steed sturdy.

• Heat treated 4130 chromoly
• Internal gusseted top tube and an external gusset on the down tube
• Double-butted top and down tubes
• Seat stay flush mounted brake lugs
• 5" head tube(tapped for gyro tabs)
• Updated chain stay shape and updated 8mm thick investment cast dropouts with integrated chain tensioners
• Brake hardware sold separately

Geometry:
Headtube: 75.5°
Seat Tube: 71°
Chain Stay: 12.75″
Standover: 9"
BB height: 11.625″
Weight: 5lbs (20.75″)
