by BSD
$399.95
SKU BSFR-101-MRAW22
Check all Stock availability
In Stock
description

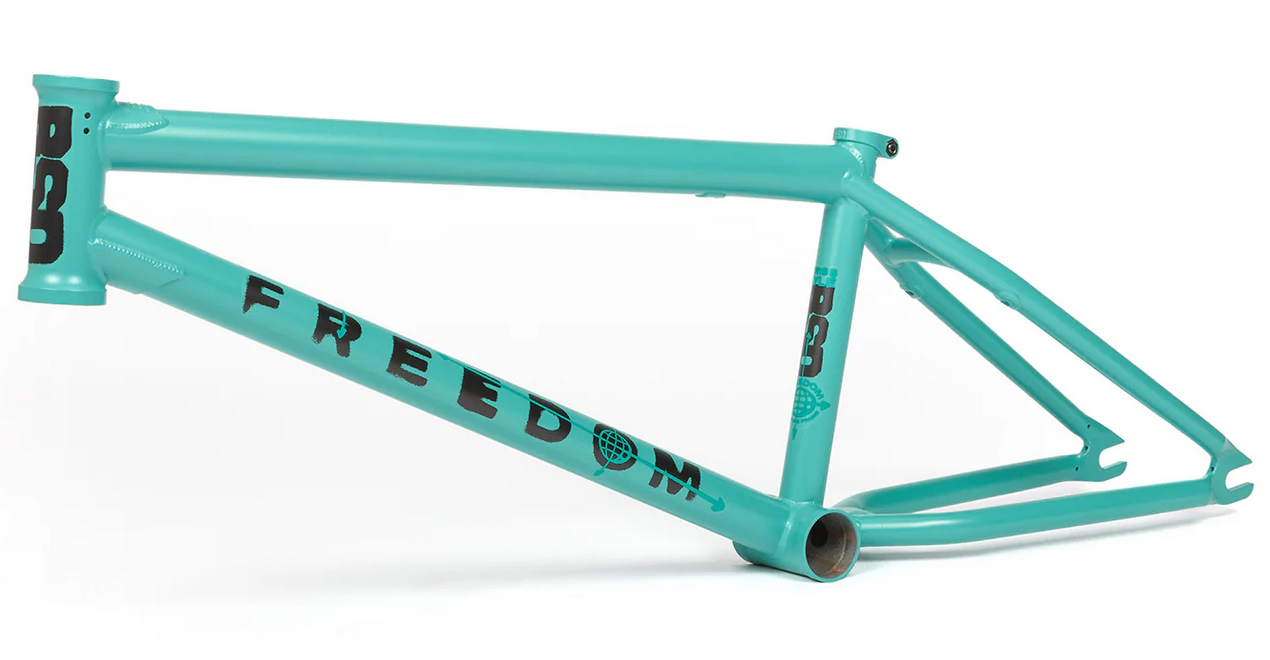

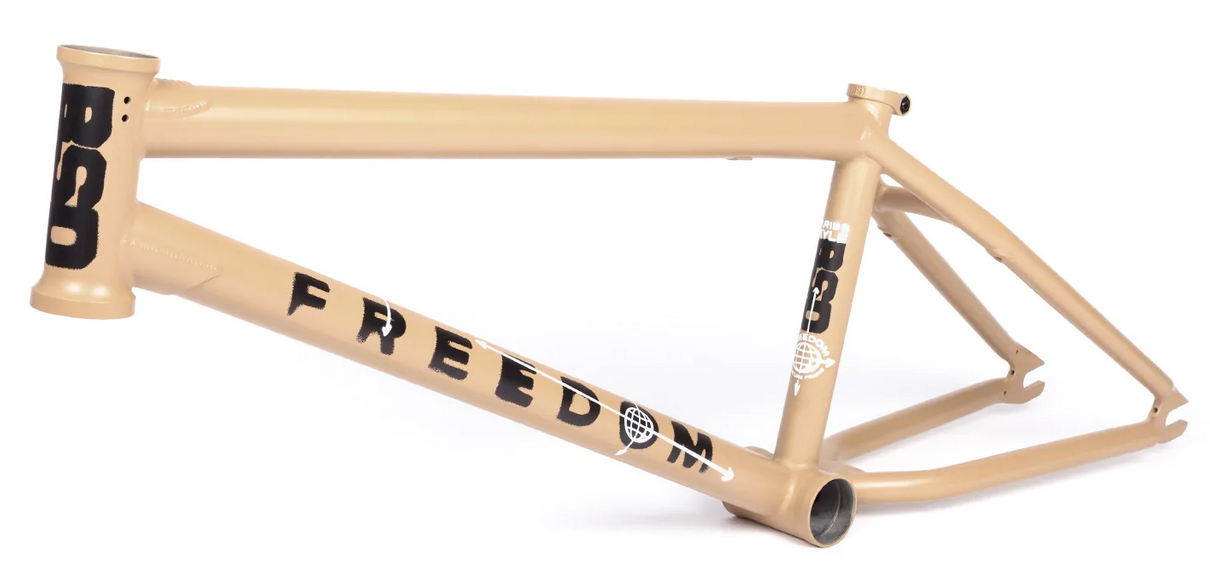

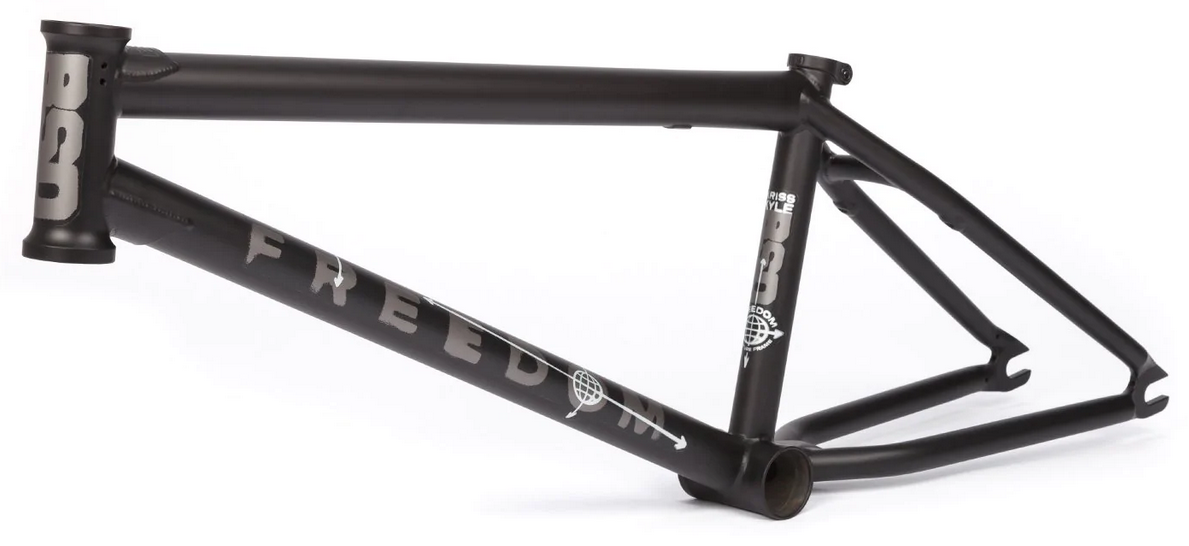

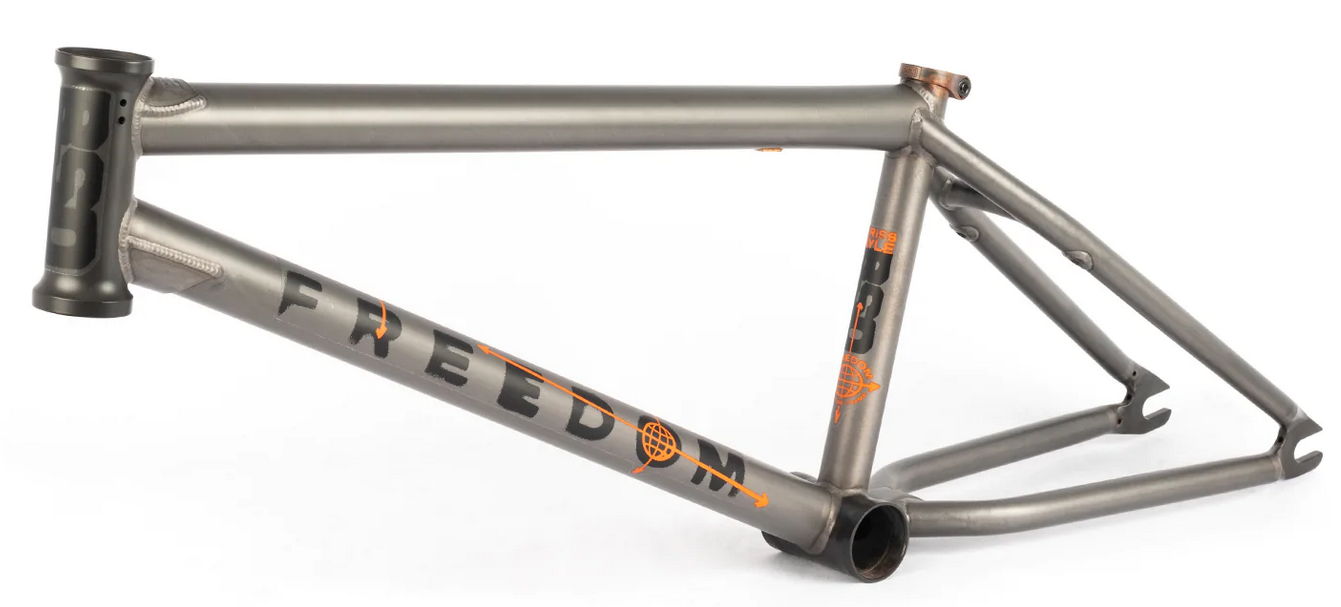

The BSD Freedom Frame is the signature frame of BSD team rider, Kris Kyle. BSD took the already great design of of Kyle's last frame and improved on it with and investment cast wish bone to make the rear end stiffer and stronger to resist bending under heavy abuse.

Toptube lengths 20.2 / 20.5 / 20.8 / 21.1 / 21.5
Headtube angle 75°
Headtube length 117mm
Seattube angle 69.5°
Rear end length 13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
BB Height 11.5"
Standover height 9"
Weight 5lbs
Brake mounts removable - brake kit available separately
Tubing Sanko Japanese seamless 4130 CrMo / triple butted
Headtube Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket Heat treated 4130 CrMo / CNC machined
Chainstay Wishbone Heat treated 4130 CrMo / Invest cast
Dropouts Heat treated 4130 CrMo / Invest cast
Seatclamp Heat treated 4130 CrMo / Invest cast
