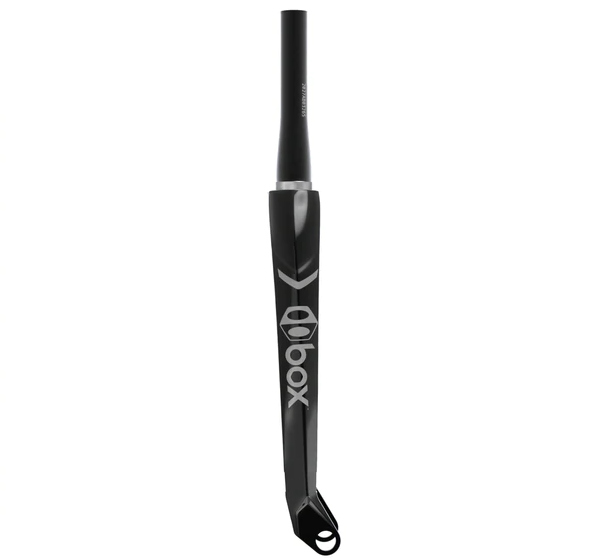

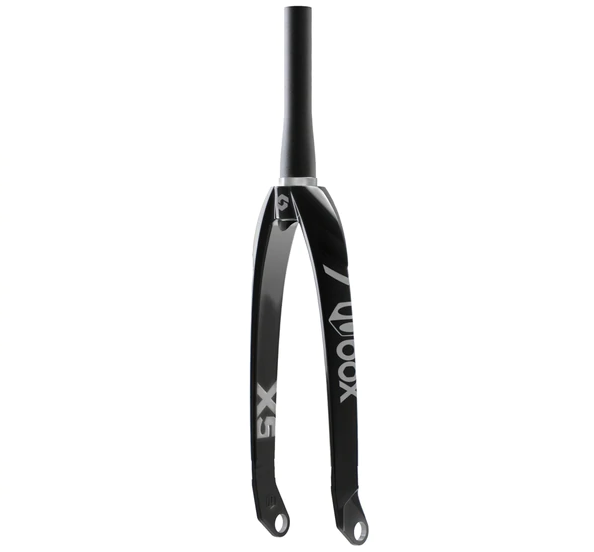

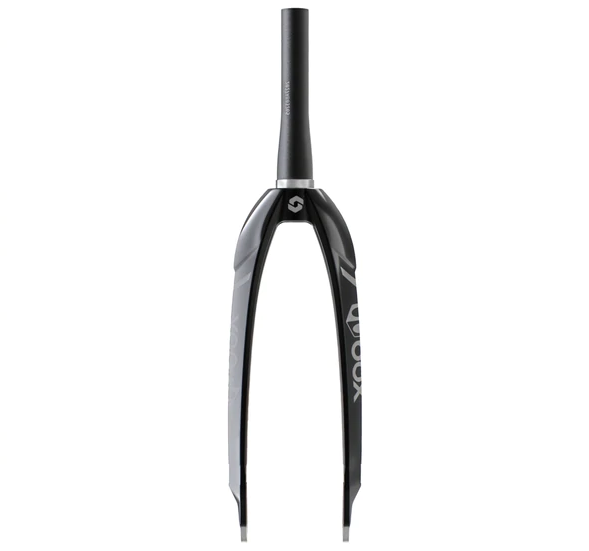

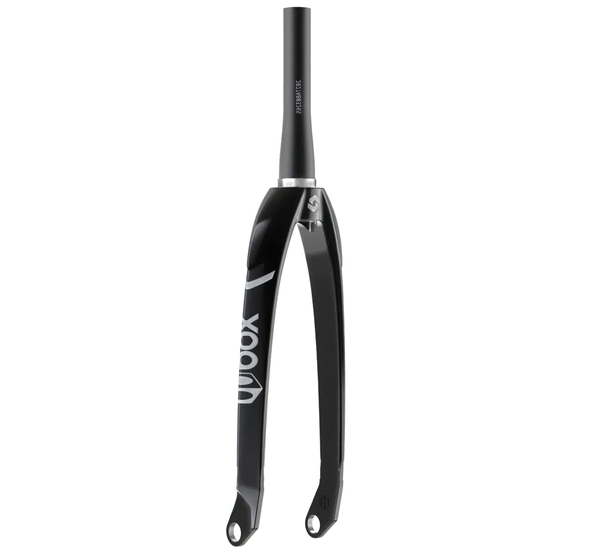

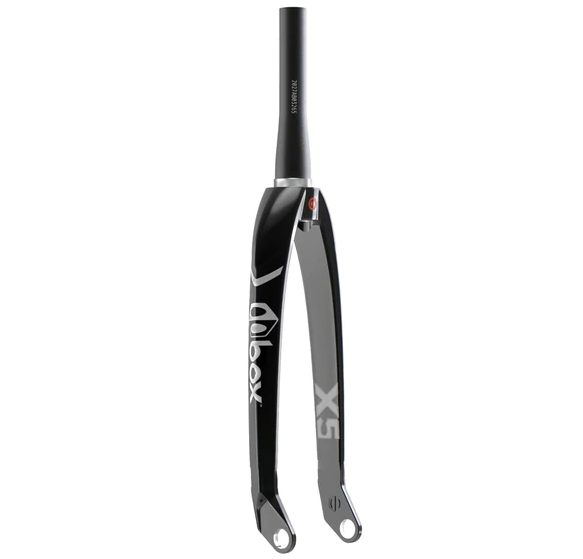

Box One X5 Pro Carbon 24" Fork

SKU BX-FK2052420-BK
Check all Stock availability
In Stock

The Box One X5 Pro Carbon 24" Fork are engineered and crafted using Box's Oversized Technology. These forks are the single most important component in the quest for bike control. Box moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.

Key differences: This particular model fork pushes Box's Oversized Technology to the extreme as it includes the 1.5 to 1-1/8 inch tapered 7000 series aluminum steerer tube and stiffer 20mm through-axle cold-forged dropouts. Say good-bye to deflection.

Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard.


  • Oversized Technology™
  • 1-1/8 to 1.5 Inch 7000 Series Aluminum Steerer Tube
  • 20mm Through-Axle
  • Internal Butterfly Steerer Tube and Fork Crown Interface
  • Cold-Forged and Bonded Dropouts


  • Material High Modulus Unidirectional Carbon Fiber
  • Steerer Material 7000 Series Aluminum
  • Finish High Gloss Black
  • Offset 32mm
  • Steerer Tube 1-1/8" - 1.5"
  • Weight 579g/20.4oz, 616g/21.7oz
