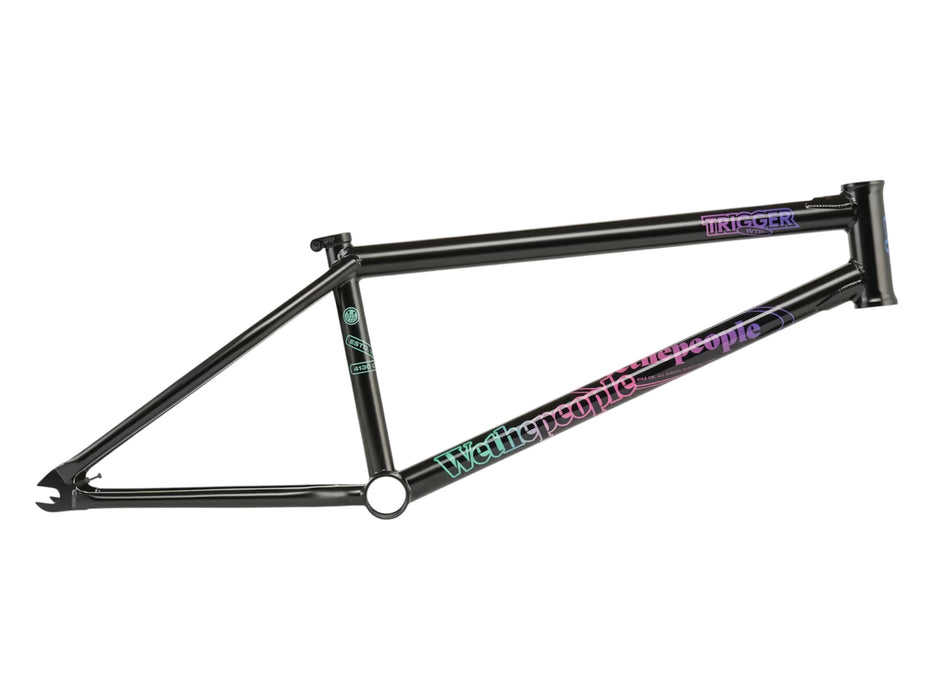

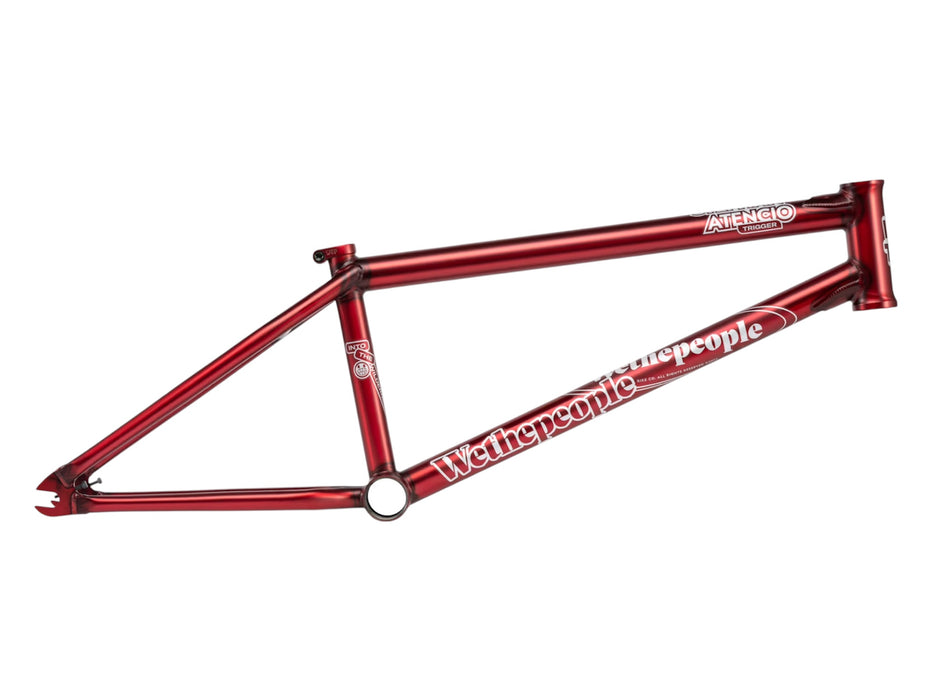

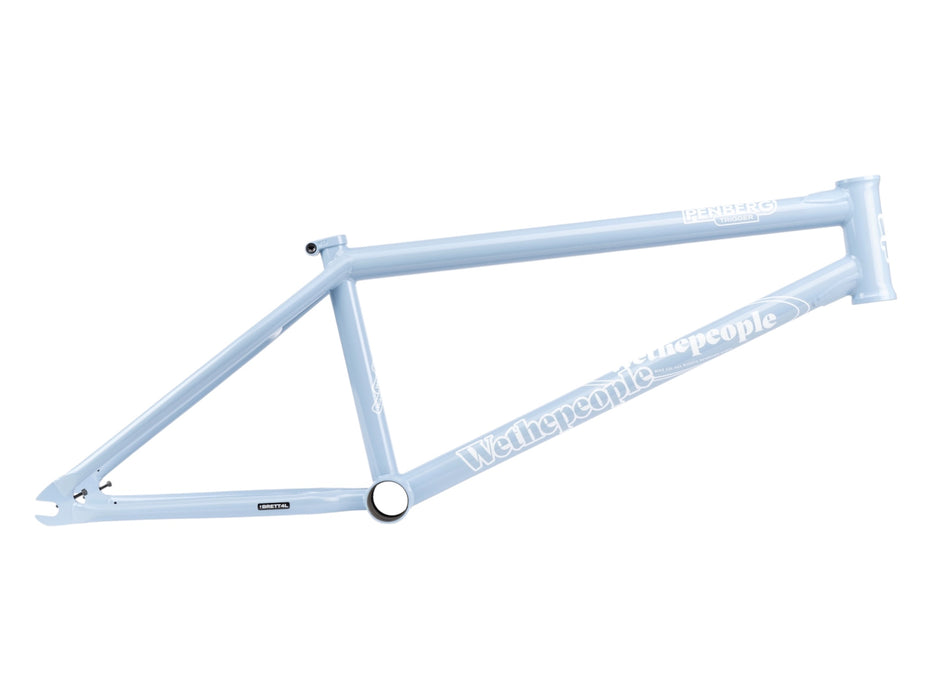

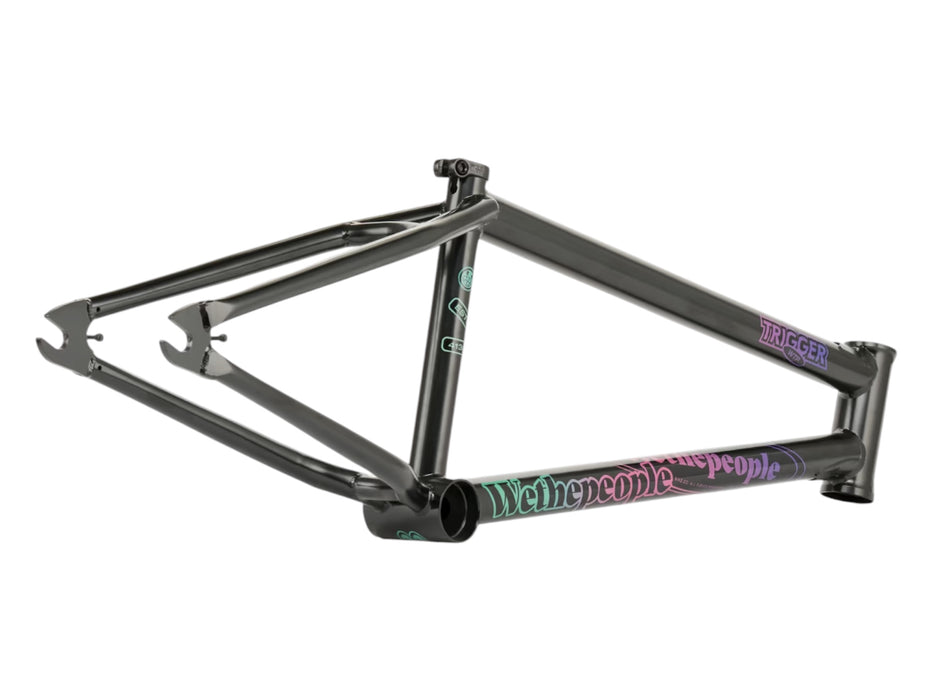

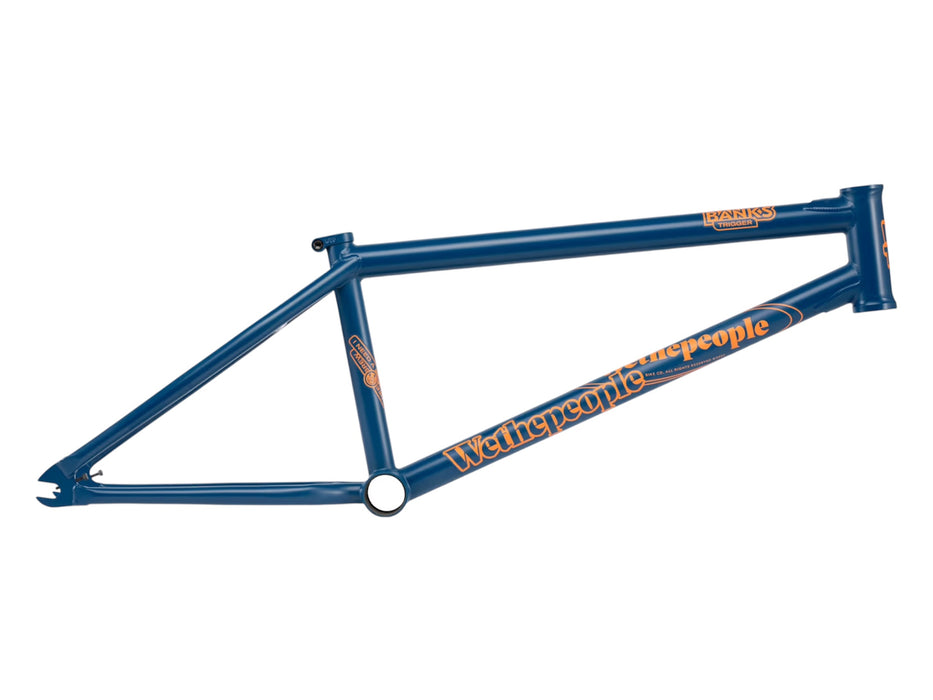

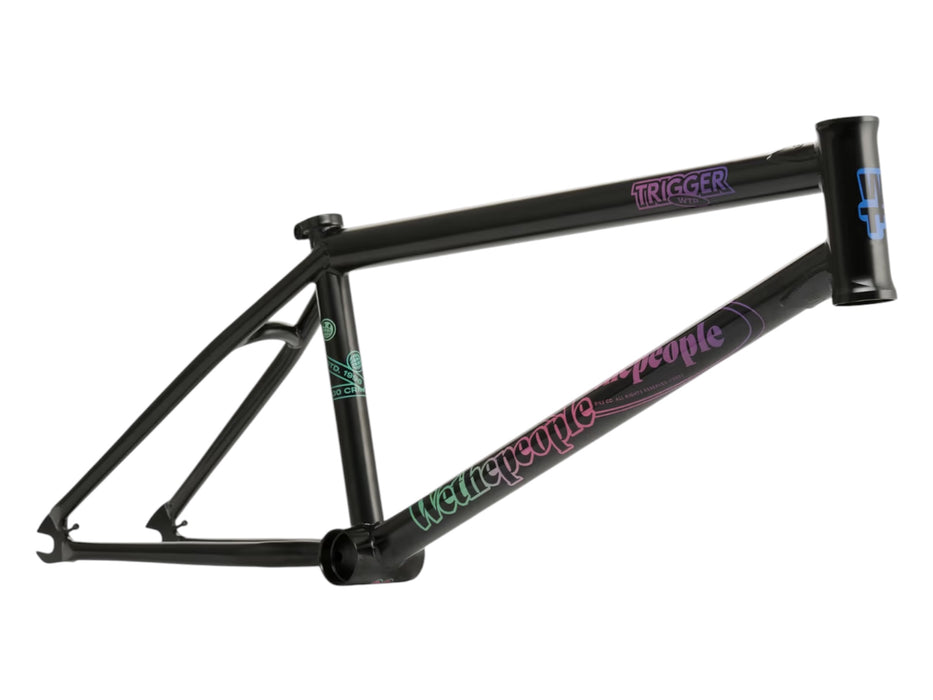

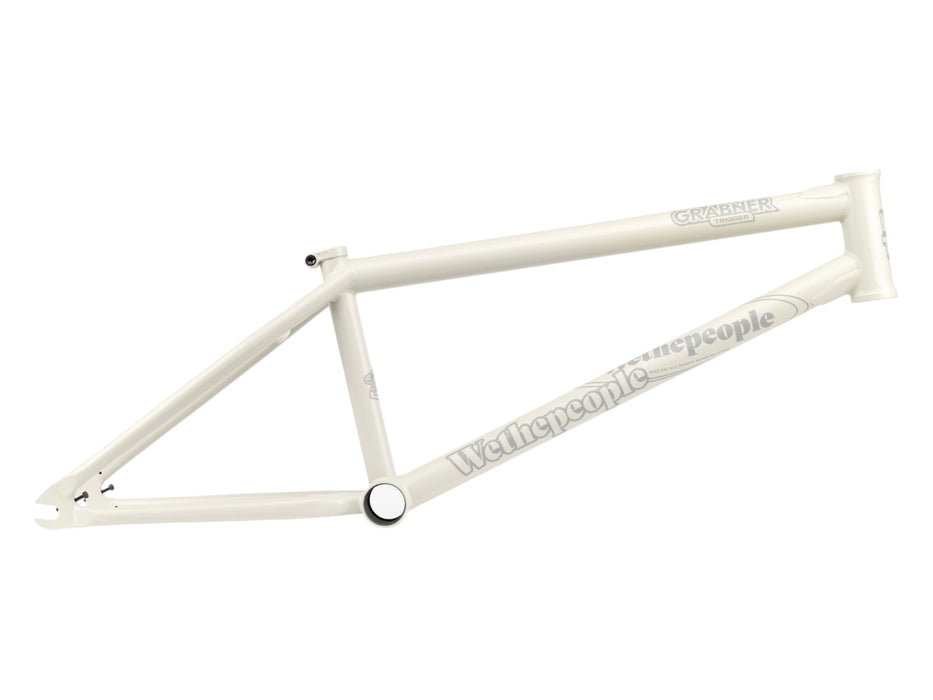

WeThePeople Trigger Frame
Sold out
Original price
$399.95
-
Original price
$399.95
Original price
$399.95
$399.95
-
$399.95
Current price
$399.95
SKU

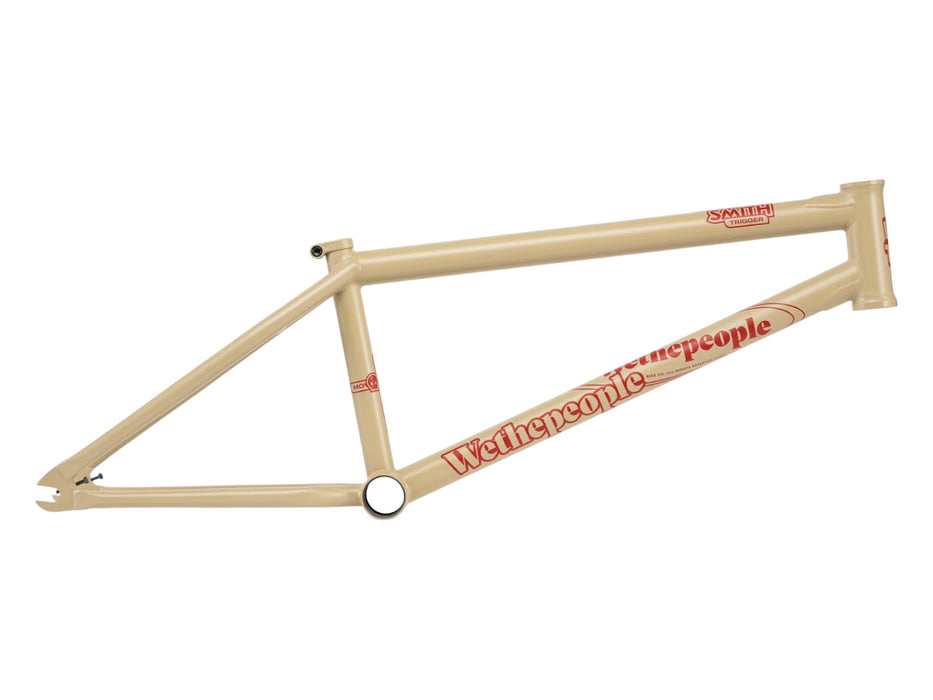

The WeThePeople Trigger Frame is a newer concept in the fact it has an adaptive geometry; meaning as the top tube gets longer the rest of the bike is scaled to match. Heat treated Japanese 4130 chromoly tubing for an unmatched quality with a superior strength to weight ratio.
- Super durable Street frame designed with WTP AM team
- Adaptive geometry (longer chain stays and higher standover as toptube length increases)

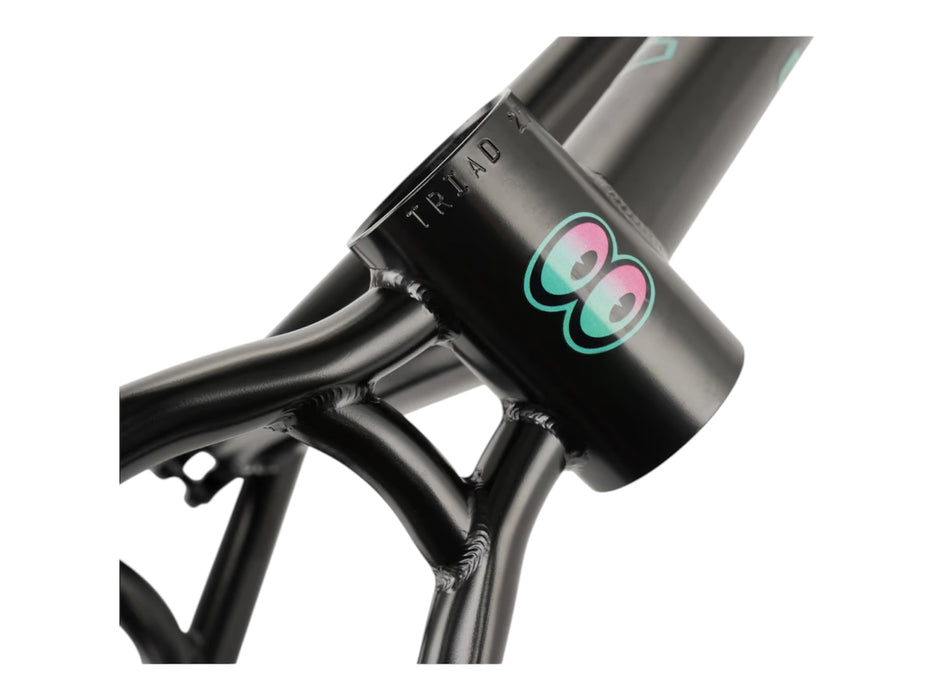

- Offset machined head tube for improved tube fitment and strength
- Extra-thick plain gauge tubing for dent resistance and overall durability
- 127mm tall head tube for less spacers with an uncut fork
- Wider rear triangle allows clearance for a 2.4" tire

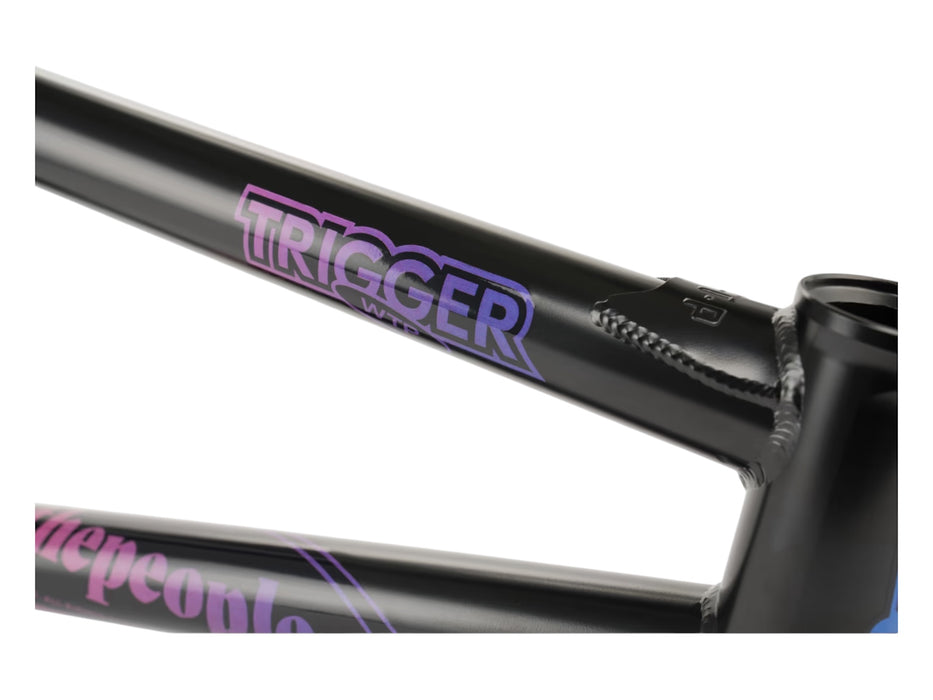

- Larger 1.8mm welding at head tube
- WTP top tube and down tube gusset
- Investment cast seat clamp
- LIFETIME GUARANTEE
TUBING: butted, Japanese seamless 4130 crmo tubing
BOTTOM BRACKET: 74mm mid size, cnc machined and heat-treated
HEAD TUBE: 127mm, offset cnc machined and heat-treated, integ. h/set
DROPOUTS: laser cut and cnc machined 6mm, heat-treated 4130 crmo, w/ chain tensioner bolt perfect shape for pegs and hub guards
BRAKES: brakeless frame
WEIGHT: 2.37kg (5.22lbs) - 20.75"
Geometry 20.5"
- Top tube length: 20.5"
- Chain stay length: 12.7" – 13.25" - optimized for 12.75" / 13'' w/ 25-9
- Head tube angle: 75.75°
- Seat tube angle: 71°
- BB height: 11.7"
- Standover height: 8.75"
Geometry 20.75"
- Top tube length: 20.75"
- Chain stay length: 12.7" – 13.25" - optimized for 12.75" / 13'' w/ 25-9
- Head tube angle: 75.75°
- Seat tube angle: 71°
- BB height: 11.7"
- Standover height: 9"
Geometry 21"
- Top tube length: 21"
- Chain stay length: 12.95"- 13" - optimized for 13" / 13.25'' w/ 25-9
- Head tube angle: 75.75°
- Seat tube angle: 71°
- BB height: 11.7"
- Standover height: 9.3"
Geometry 21.25"
- Top tube length: 21"
- Chain stay length: 13.2"- 13.5" - optimized for 13.25" / 13.5'' w/ 25-9
- Head tube angle: 75.75°
- Seat tube angle: 71°
- BB height: 11.7"
- Standover height: 9.6"
