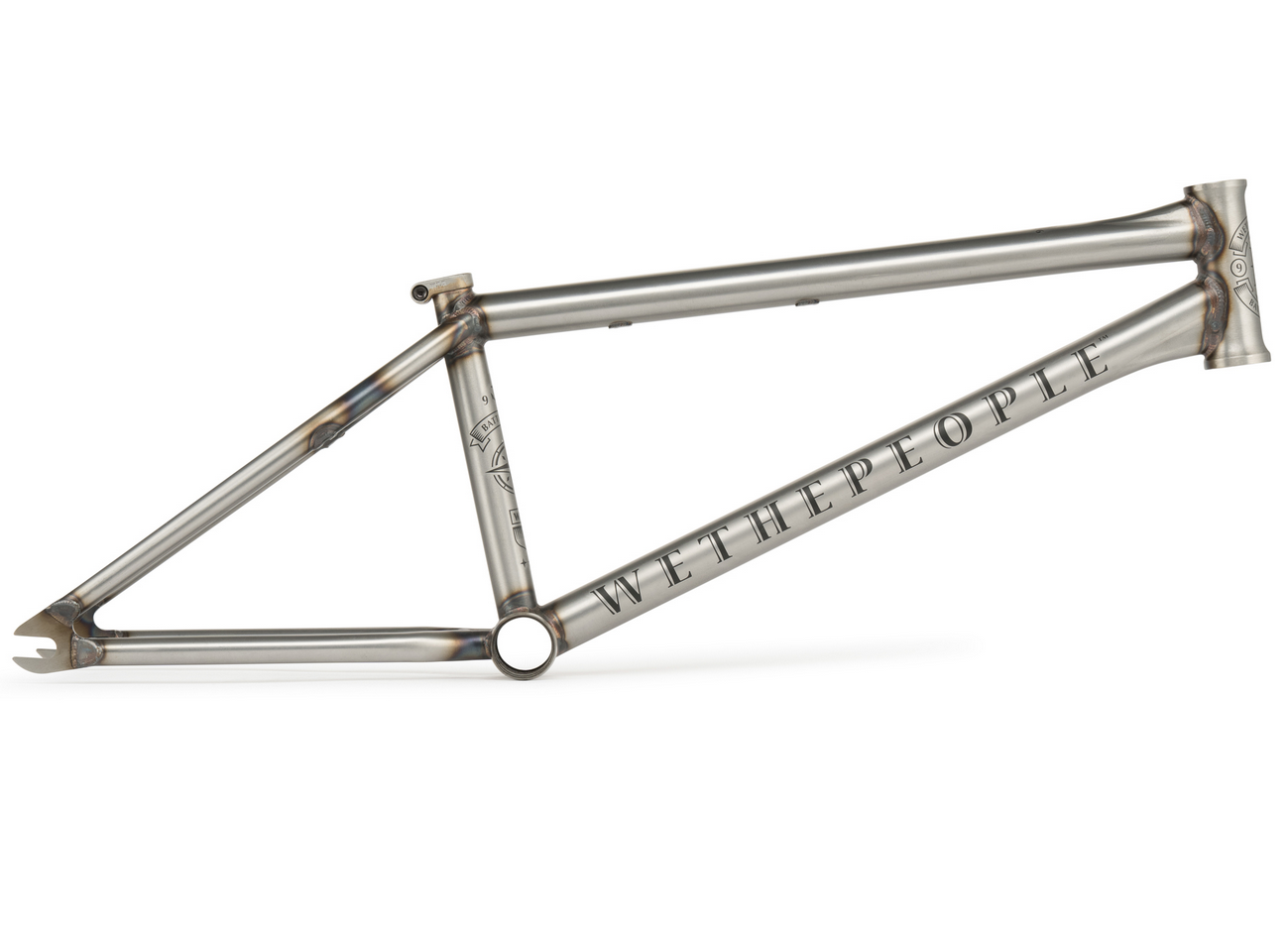

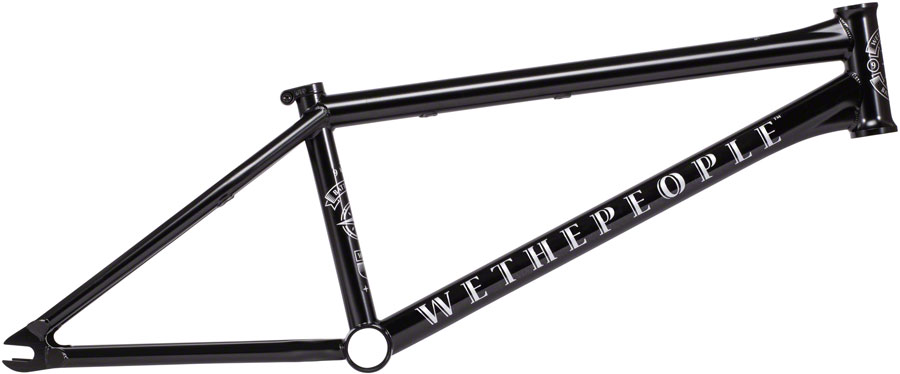

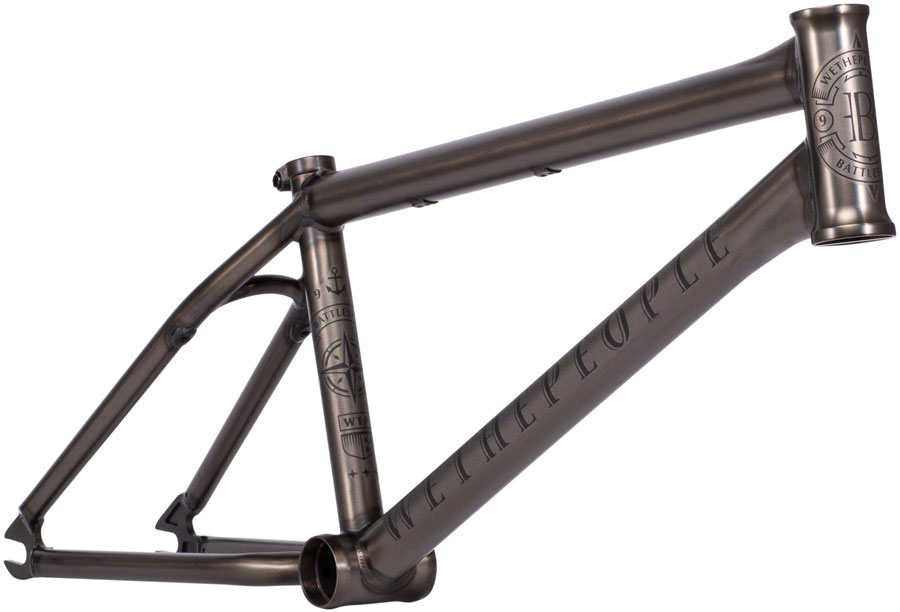

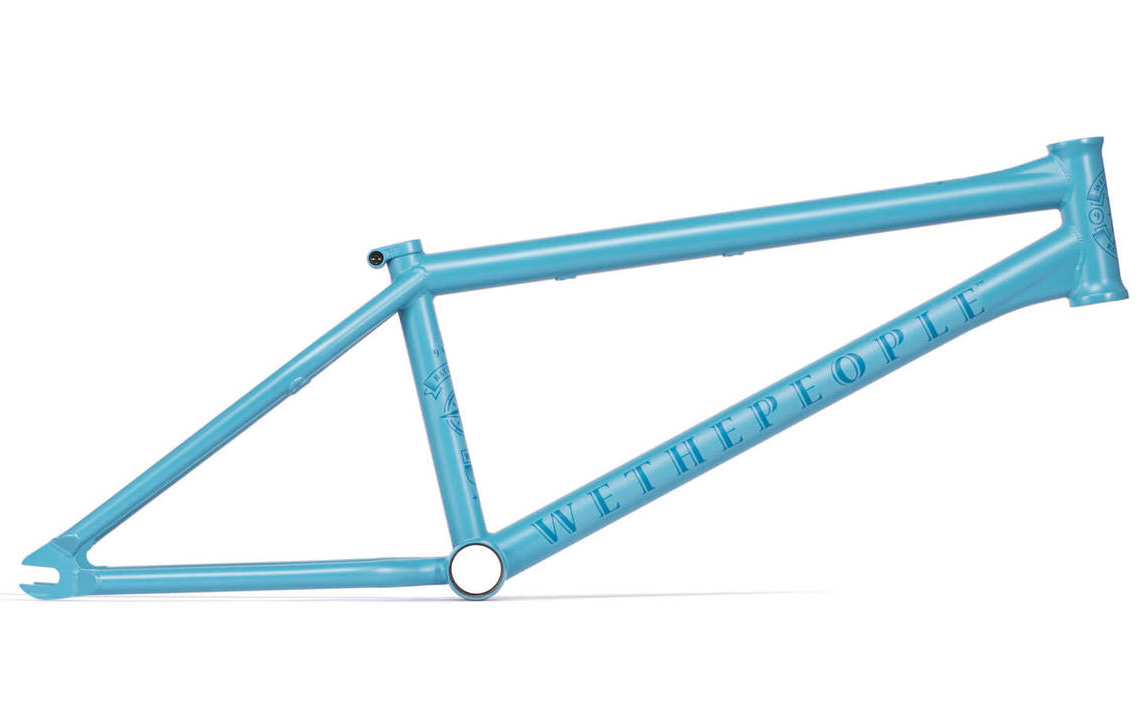

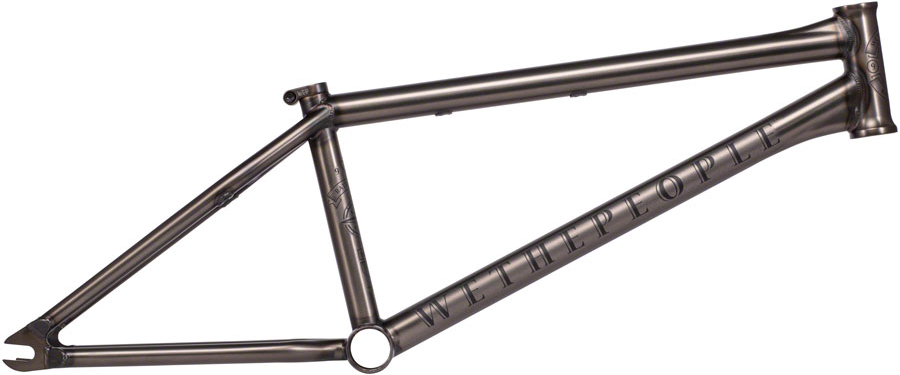

WeThePeople Battleship Frame

Save 21%
$379.95
$299.95
SKU FM7410
Check all Stock availability
In Stock
description

The WeThePeople Battleship Frame is the signature from of WTP team rider, Dan Kruk and is built with the tech style or street riding in mind. With a super short rear end and steep headtube you can spin to win with this BMX frame.


TUBING:
butted, seamless 4130 chromoly tubing Japanese


TOPTUBE:
20.5", 20.75 "or 21" TT


CHAINSTAY LENGTH:
12.7" slammed, 13" centered


ANGLES:
HT: 75.5 °, ST: 71 °


BOTTOM BRACKET:
mid-bb width: 74mm, height: 11.7 ", cnc machined and heat-treated


HEADTUBE:
taller 127mm height, cnc machined and heat-treated, integ. h / set


DROPOUTS:
6mm thick laser cut and heat-treated, new shape for perfect hubguard/peg fit even when slammed


SPECIAL FEATURES:

    • hydroformed top and down tube for the strongest possible connection to the headtube

    • Super strong, technical street frame with the shortest chainstay possible

    • taller 127mm extended headtube for less spacers with an uncut fork

    • wider rear triangle allows clearance for a 2.5" tire

    • frame comes drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included

  • investment casted seat clamp

WEIGHT:
2.325kg - 5.125lbs (20.5")
