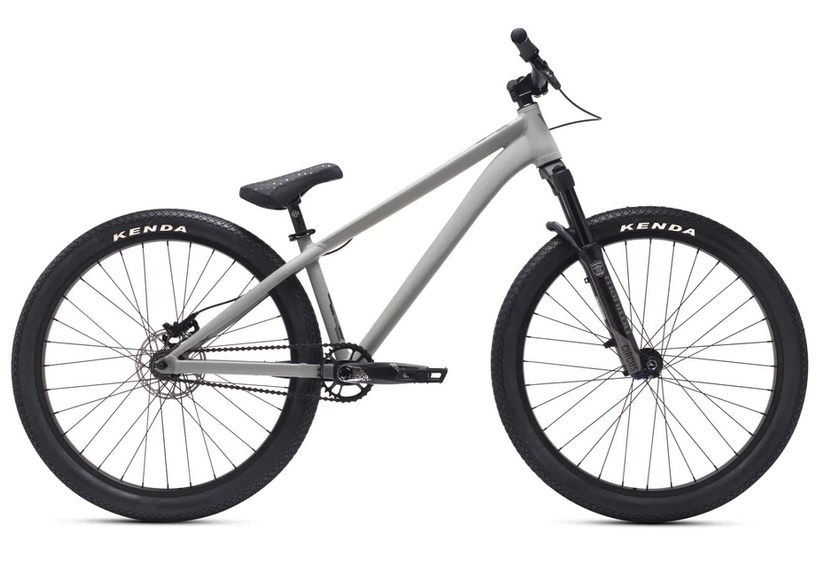

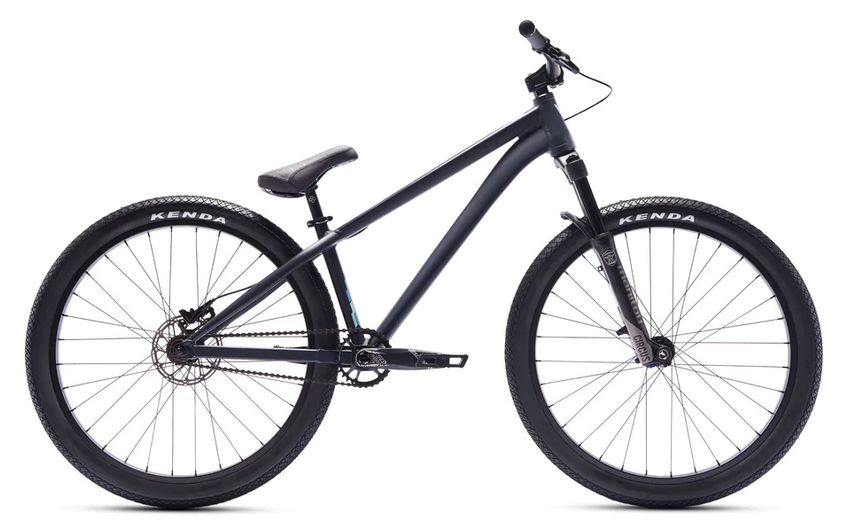

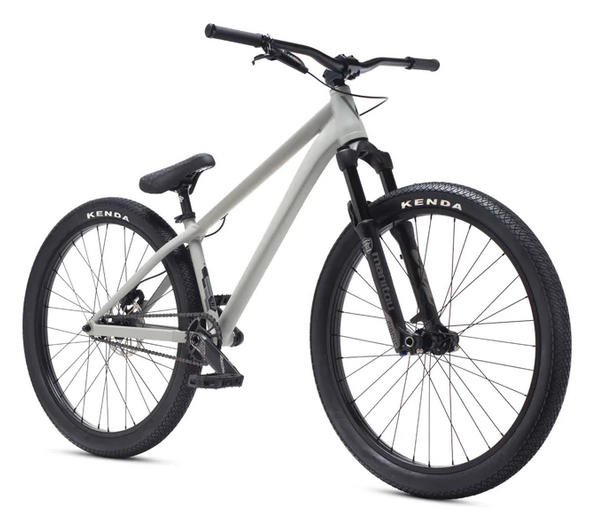

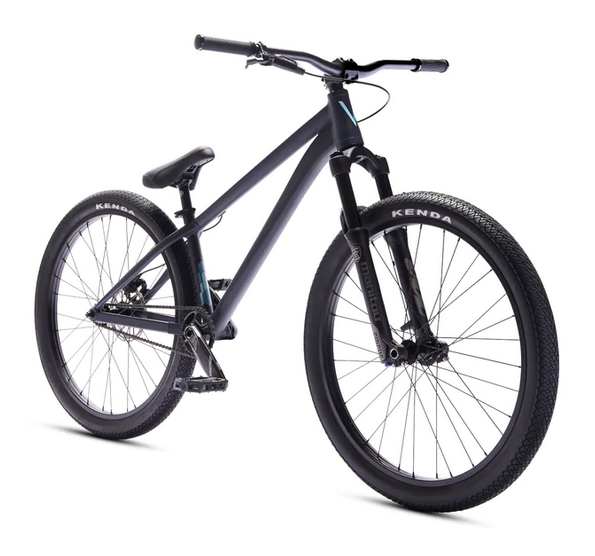

Verde Vertex 26" Dirt Jump Bike

by Verde
SKU CB6242
Check all Stock availability
In Stock

The Vertex is ready for a high level of riding right out of the box!  The new Verde Vertex 26" Dirt Jump Bike features a 6061 Aluminum frame with a CNC machined 1.5" tapered head tube.

Frame Spec

  • Frame: 6061 series aluminum w/ CNC machined 1.5” tapered head tube, internal cable routing, Euro BB with chainstay yoke, and custom CNC machined dropouts
  • Top Tube Length: 22.25” (22.97” effective)
  • Chain Stay Length 15.25”
  • Head Tube Angle 69º
  • Seat Tube Angle 72º
  • Bottom Bracket Height 10.5”
  • Standover Height: 12.5”


Parts Spec

  • Fork: Manitou Circus Expert, 100mm travel, 41mm offset, 1.5” taper
  • Bars: 6061 aluminum, 1” rise, 31” wide (787mm), 31.8mm clamping area
  • Stem: Front load, 30mm reach
  • Headset: Sealed internal, Zero Stack 44/56, 1-1/8” to 1-1/2” tapered
  • Brake: SRAM Level T hydraulic disc
  • Rotor: SRAM Centerline 160mm, stainless steel
  • Lever: SRAM Level T hydraulic disc w/ hinged lever
  • Rear Hub Alloy, fully sealed, 10mm (3/8”) axle, 14-tooth driver
  • Front Hub: Alloy, fully sealed, 20mm thru-axle
  • Sprocket: SRAM 30-tooth X-Sync 2 direct mount chainring
  • Cranks: Truvativ Descendant 6K DUB, 165mm
  • BB: SRAM DUB BSA, 73mm
  • Chain: KMC Z-510, silver
  • Pedals: DUO Brand Resilite platform
  • Front Rim: 6061 aluminum, double wall, 32-hole
  • Rear Rim: 6061 aluminum, double wall, 32-hole
  • Spokes: 14G black w/ black nipples
  • Front Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
  • Rear Tire: 26 x 2.25” Kenda 3-Sixty, 65psi
  • Seat: DUO Brand Waves seat/post combo
  • Seat Post: Alloy, 27.2mm diameter, 200mm length
  • Seat Clamp: Alloy, quick-release
  • Grips: Lock-on, 130mm
  • Weight: 27.1 lbs
