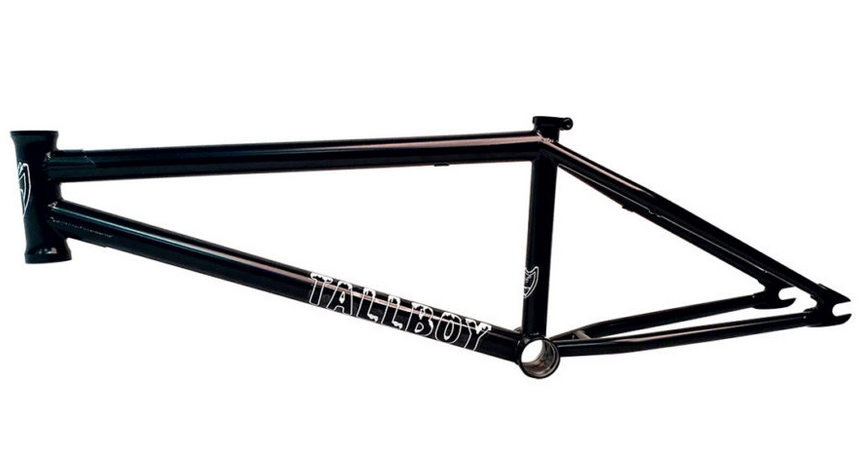

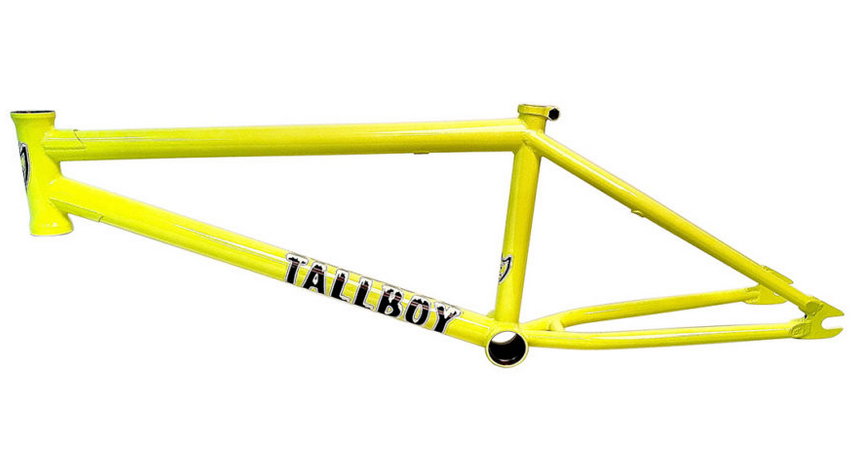

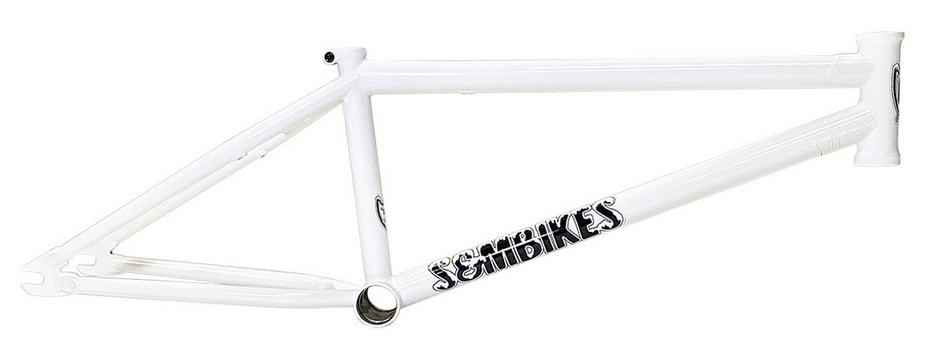

S&M Tall Boy V3 Frame
S&M Tall Boy V3 Frame
S&M Tall Boy V3 Frame
S&M Tall Boy V3 Frame

S&M Tall Boy V3 Frame

by S&M
$519.95
SKU 01-TALLBOYV3-BLK-20.75
Check all Stock availability
In Stock
description
The S&M Tall Boy V3 Frame is the signature frame of original street wizard, Charlie Crumlish.  Charlie is  atall fellow so you know his frame is set up for taller riders.  Hence the name "Tall Boy"

FRAME INFO

Top Tube Length

 20.75", 21", 21.25 ,21.5"
Chainstay Length 13.25" (slammed)
Bottom Bracket Height 11.8"
Head Tube Angle 75.25 degrees
Seat Tube Angle 71 degrees w/built in clamp
Seat Tube Size 25.4 (1")
Headtube Integrated
Dropouts 14mm
Bottom Bracket Mid
Brake Options Seatstay 990's mounts are removable (not included)
Stand over height 9.2"
Weight 4 lbs. 6 oz.

    • Charlie Crumlish signature frame
    • Super Therm tubing
    • top and downtube open end gussets
    • 5 Degree Angled Thread-On 990 Mounts
    • Externally machined bottom bracket
    • Features a 1/2″ taller head tube to take up the space headset spacers would use.
    • Tapered seat stays and chain stays 222221.25 222220.75 222221.0
