S&M DTF Frame

by S&M
$399.95
SKU 01-DTF-BLK-21
In Stock
description

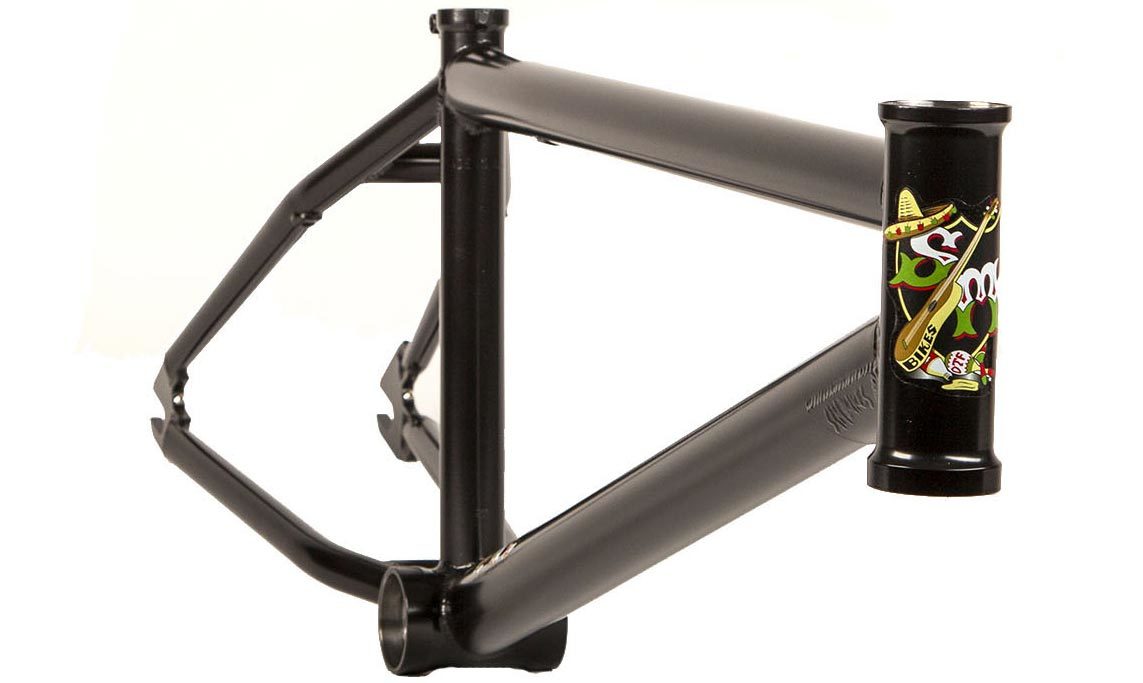

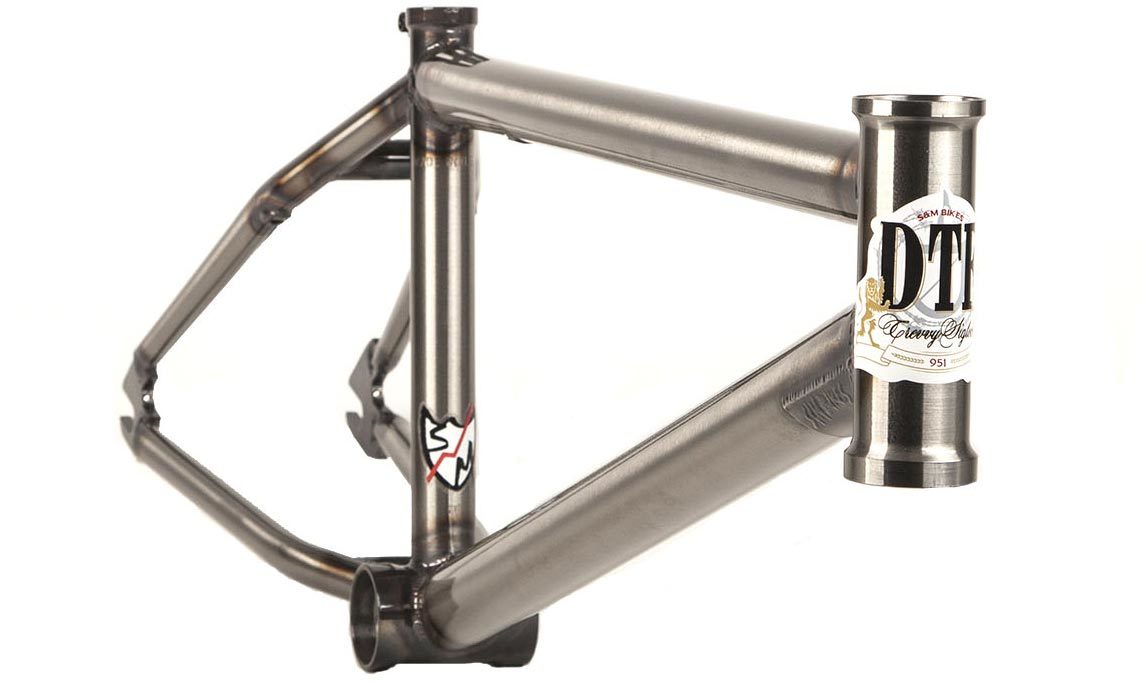

The S&M DTF Frame is had made by BMX riders in the USA. Built for all styles of BMX street, ramp or dirt the DTF is a rad BMX frame. The DTF is made from 100% chromoly, is set up for removable brake mounts and has built in chain tensioners in the dropouts.




TOP TUBE LENGTH 20.75″, 21″, 21.25″, 21.5″
REAR END LENGTH 13.30″ – 14.05″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE 5″ Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.55″
BB STYLE Mid
STANDOVER HEIGHT 9.25″
BRAKE MOUNTS Thread-On 990 (hardware sold separately)
DROPOUTS 14mm Slot, 4Q-Baked, Built In Tensioner
GYRO TABS None
WEIGHT 5.4 lb (2.44 kg)
TUBESET Butted Thermal-X
