description

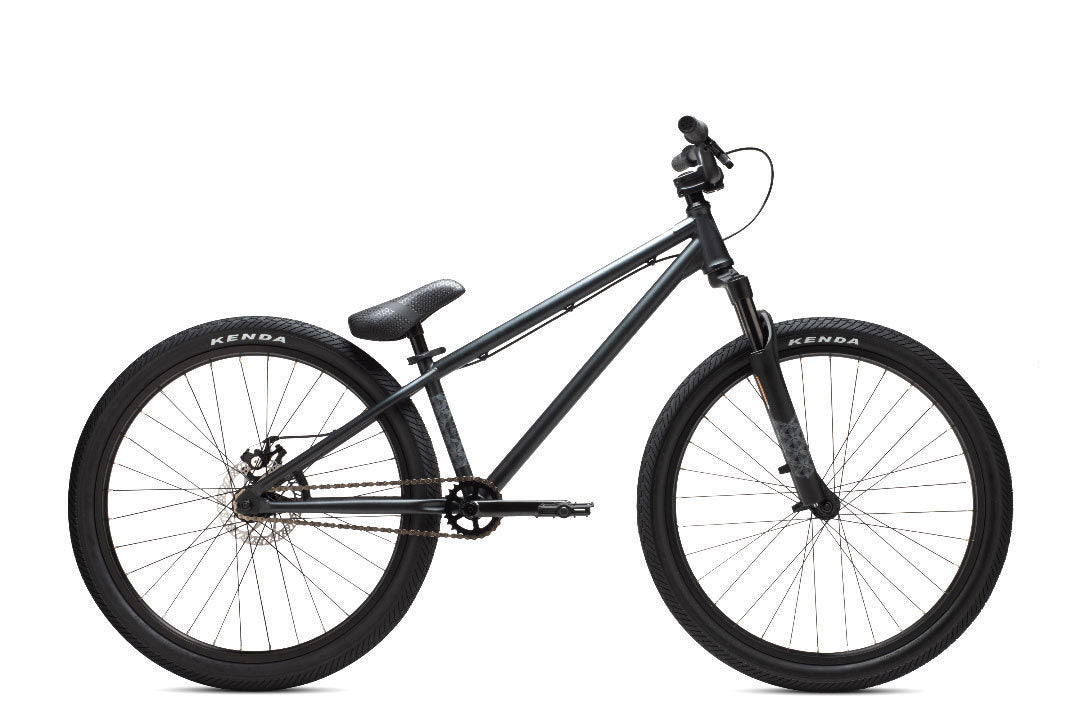

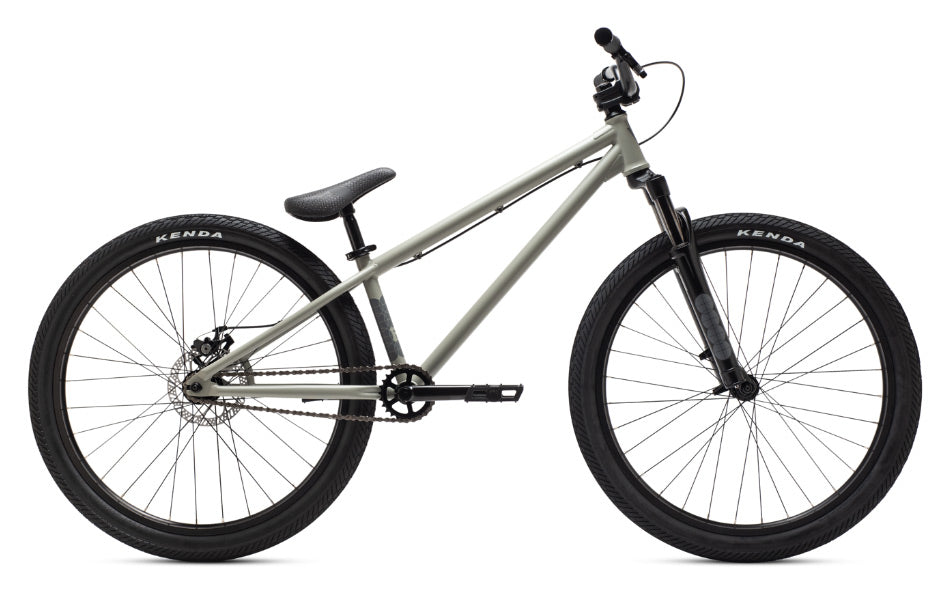

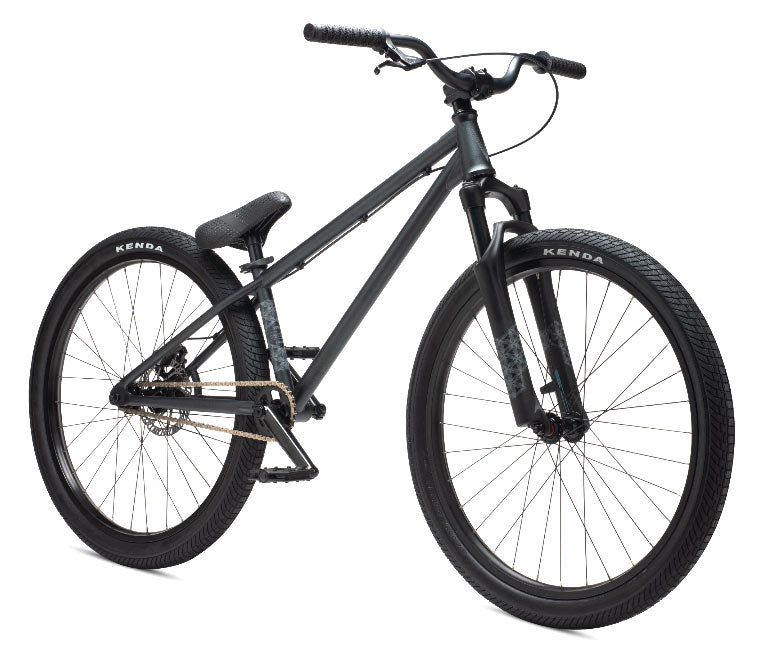

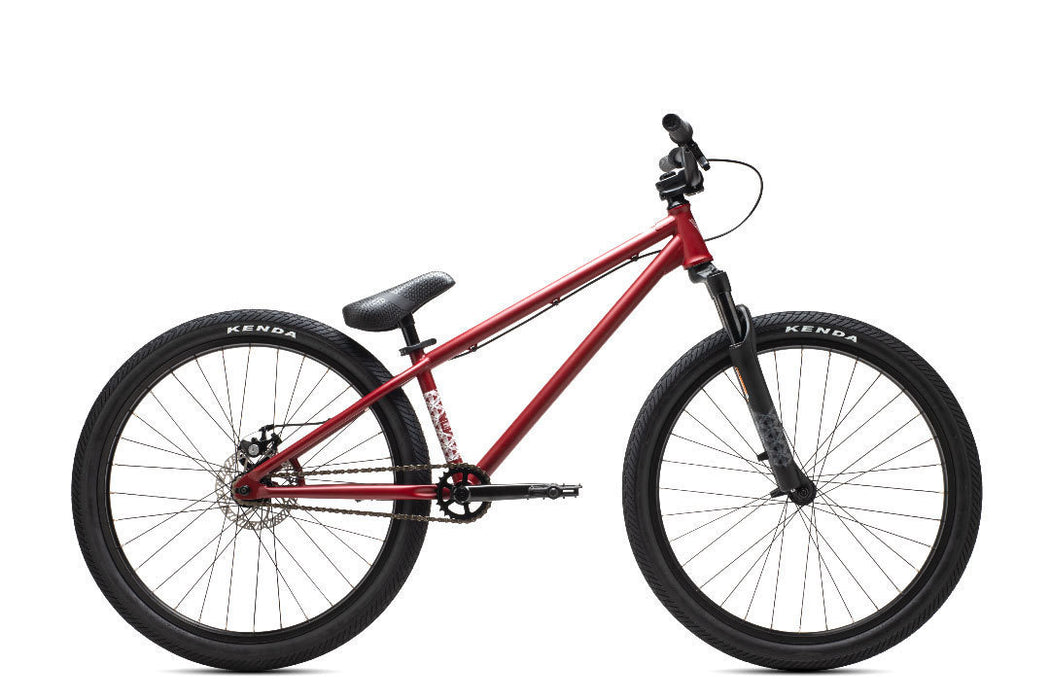

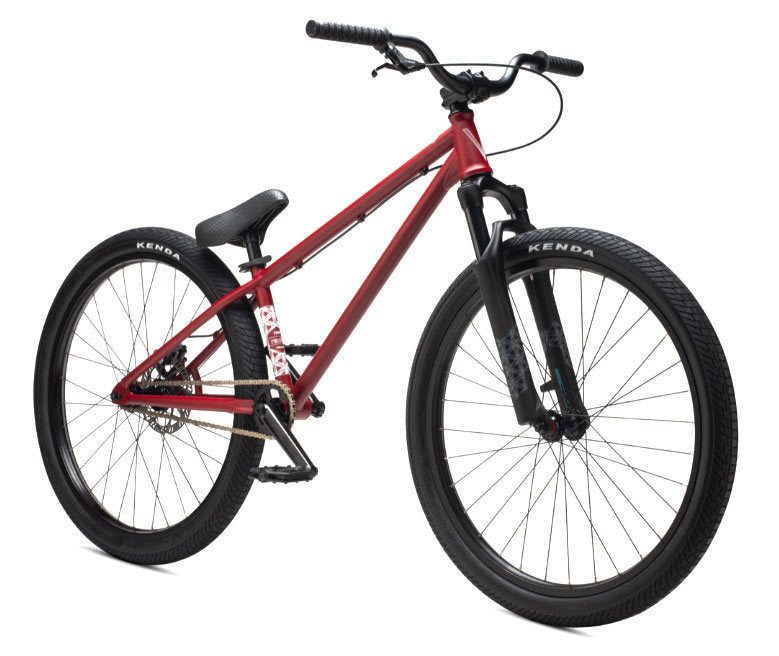

The Verde Radix is BMX-inspired, but it's a true-to-form Dirt Jumping bike with a suspension fork and rear disc brake. A low-profile frame and stable geometry makes it feel cool and comfortable at speed and in the air. Sealed bearings all-around, 26-12 gearing, heat-treated 3-piece BMX cranks and a custom Verde seat top it off. For the pump track, the MTB trail or the box jump, the Verde Radix can do it all and won't break the bank.
Frame
|
100% chromoly w/ CNC machined integrated 1.5” tapered heat tube, double butted top and down tubes, Mid BB |
Top Tube Length
|
22.34”
|
Chain Stay Length
|
15.3”
|
Head Tube Angle
|
69º |
Seat Tube Angle
|
71º |
BB Height
|
13”
|
Standover Height
|
11.5”
|
Fork
|
RST Dirt, HD spring, 80mm travel |
Bars
|
6061 aluminum, 3” rise, 29.5” wide |
Stem
|
Front load, 42mm reach |
Headset
|
Sealed integrated |
Brake
|
Tektro Aires mechanical disc w/ 160mm rotor |
Lever
|
Tektro, 2-finger design |
Rear Hub
|
Alloy, fully sealed, 10mm (3/8”) axle, 12-tooth driver |
Front Hub
|
Alloy, fully sealed, 10mm (3/8”) female axle |
Sprocket
|
26-tooth, stamped 6061 aluminum |
Cranks
|
Tubular chromoly 3-piece, 170mm |
BB
|
19mm sealed Mid |
Chain
|
KMC 410, silver |
Pedals
|
Nylon composite platform |
Front Rim
|
6061 aluminum, double wall, 32-hole |
Rear Rim
|
6061 aluminum, double wall, 32-hole |
Front Tire
|
2.1” Kenda |
Rear Tire
|
2.1” Kenda |
Seat
|
Verde Hex w/ integrated post |
Seat Post
|
Uni-style |
Seat Clamp
|
Alloy, quick-release |
Grips
|
Verde Tree grips w/ Verde bar ends |
